2-SAFETYINFORMATION

LEIL13WHL0335AA63

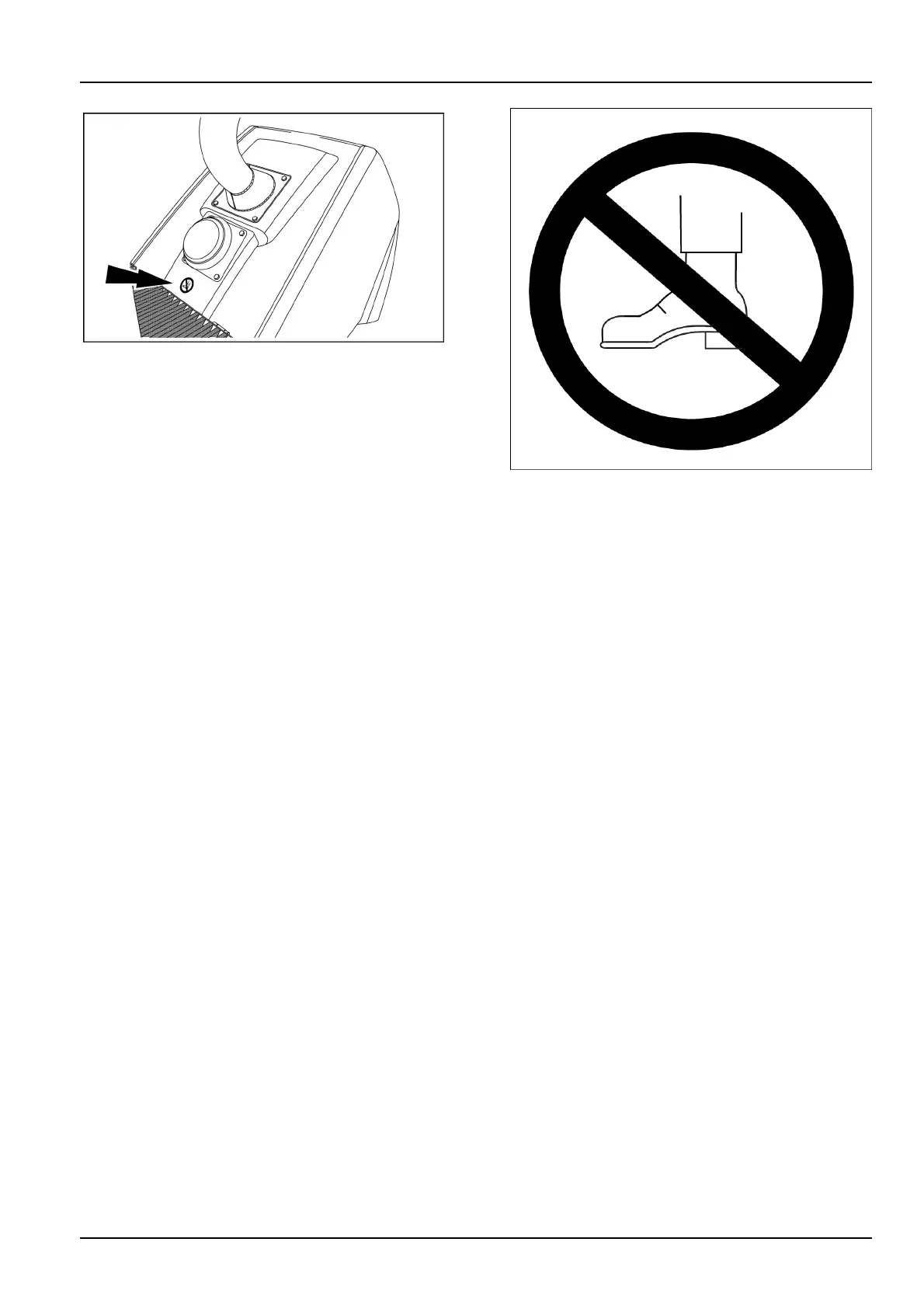

Location:enginehood.

Informationaldecal:donotstepontheenginehood.

Failuretocomplycouldresultindeathorseriousinjury.

NorthAmericanandISOdecalnumber–134402

13440264

2-39
