3-CONTROLSANDINSTRUMENTS

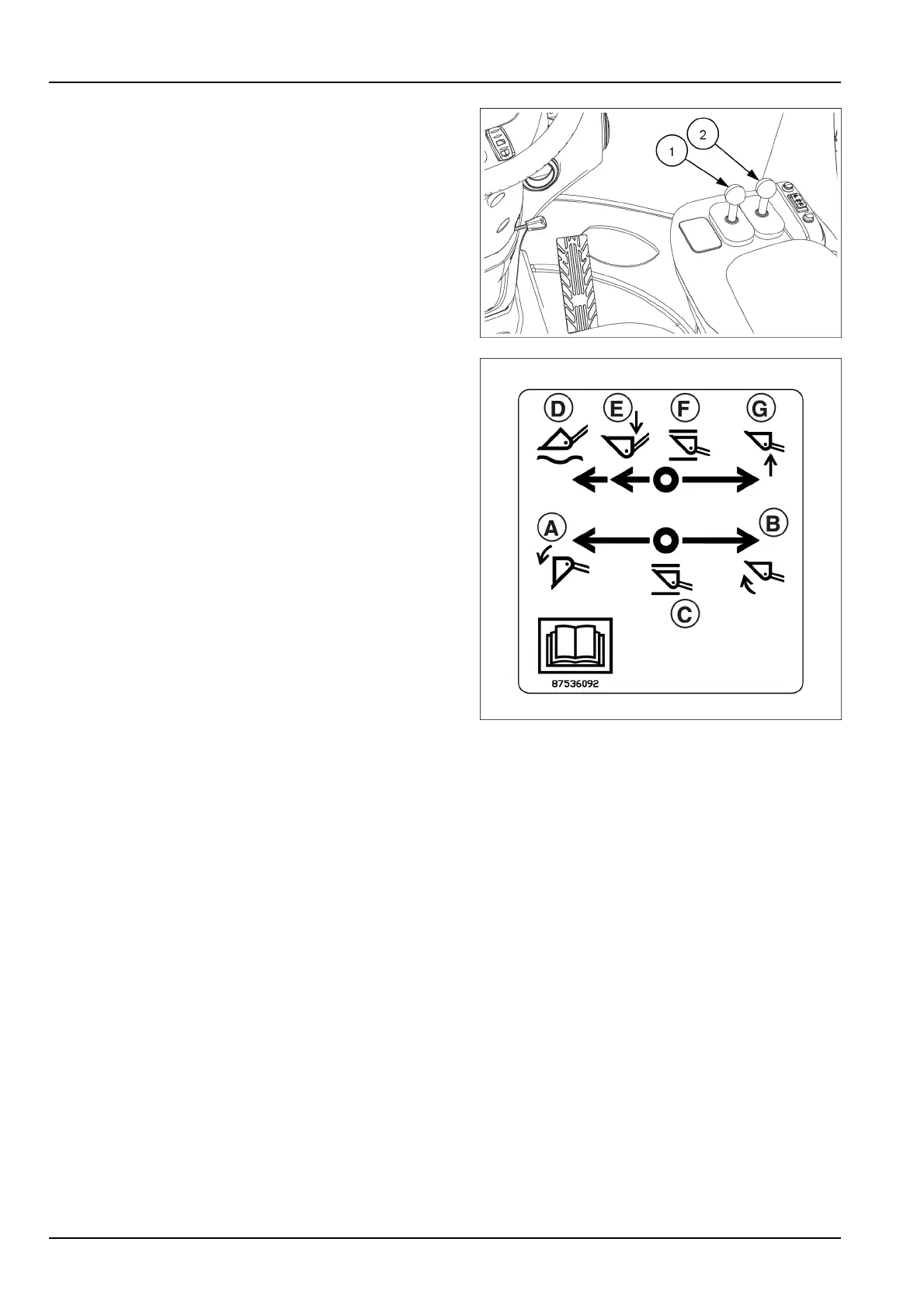

Twofunctionvalve-twocontrollevers
BucketControl(1)
A.DUMP
B.ROLLBACK
A-B.AUTOMATEDBUCKETMETERING–usedtoim-
provematerialmeteringoutofthebucketataconsistent
rate.Toengageautomatedfunctionality,movethejoy-
stickrapidlybackandforthfrom“A”Dumpto“B”Rollback
position.Thebucketacceleratesmorequicklywhilethis
motionismaintainedafter4neutralpointcrossings.Reg-
ularbucketcontrolresumesassoonasthebackandforth
motionisstopped.
C.HOLD(centralposition)-Theloaderarmsandbucket
willnotmovewhenthecontrolleverisintheHOLDpo-
sition.Whenreleased,thecontrolleverwillautomatically
returntotheHOLDposition.
LiftArmControl(2)
D.FLOAT–WhenintheFLOATposition,theloader
bucketoatsacrosstheroughground.
E.LOWER
F.HOLD(centralposition)
G.RAISE
LEIL16WHL1303AA3
875360924
NOTE:sincethedecalisappliedontheright-handside
window,thedirectionsaretobeintendedasfollows:
A,D,E:Forward
B,G:Backward
3-28
