SECTION 3
3-18
TRAVEL
Raise the blade and the stabilizers completely.
Before starting the travel, perform a visual inspec-
tion of the machine.

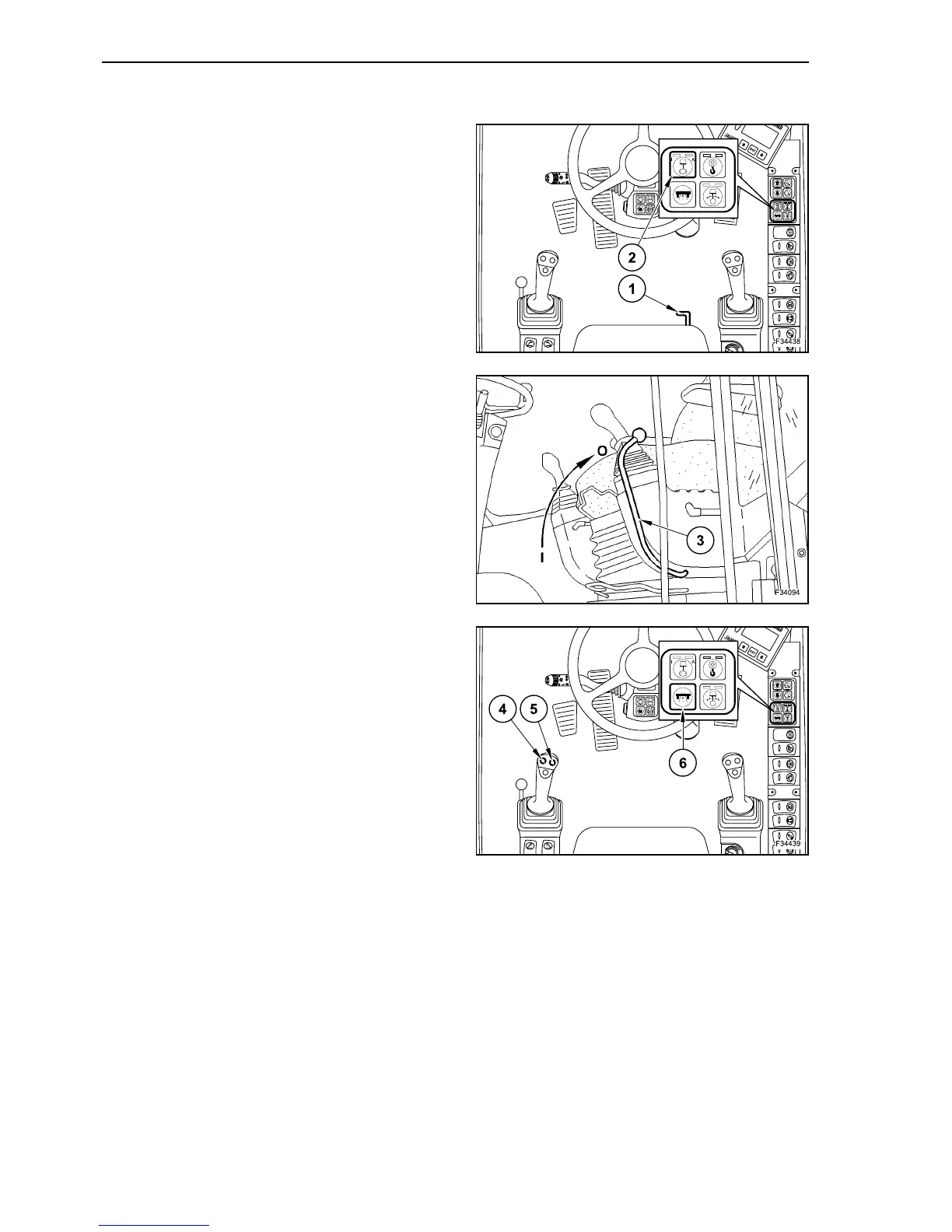

Lock the upper structure with the stud (1).
Apply the upper structure holding brake, by
depressing button (2), until the left lamp of the but-
ton lights up.
Move the safety lever (3) to position “0”.
Then depress the “Road travel” button (6) and the
right lamp of button lights up; the display shows the
road travel symbol.
Insert the “Road travel” mode.
Select the gears shifting mode.
Release the parking brake. At the same time the
floating axle is unlocked while the selected travel
direction is restored.
Select the travel direction by means of button (4) or
(5).
18
19
20
