Case WX145 - MM in; Wx 185 Models

DATA AND TECHNICAL SPECIFICATIONS
8-19
WX 185 MODELS

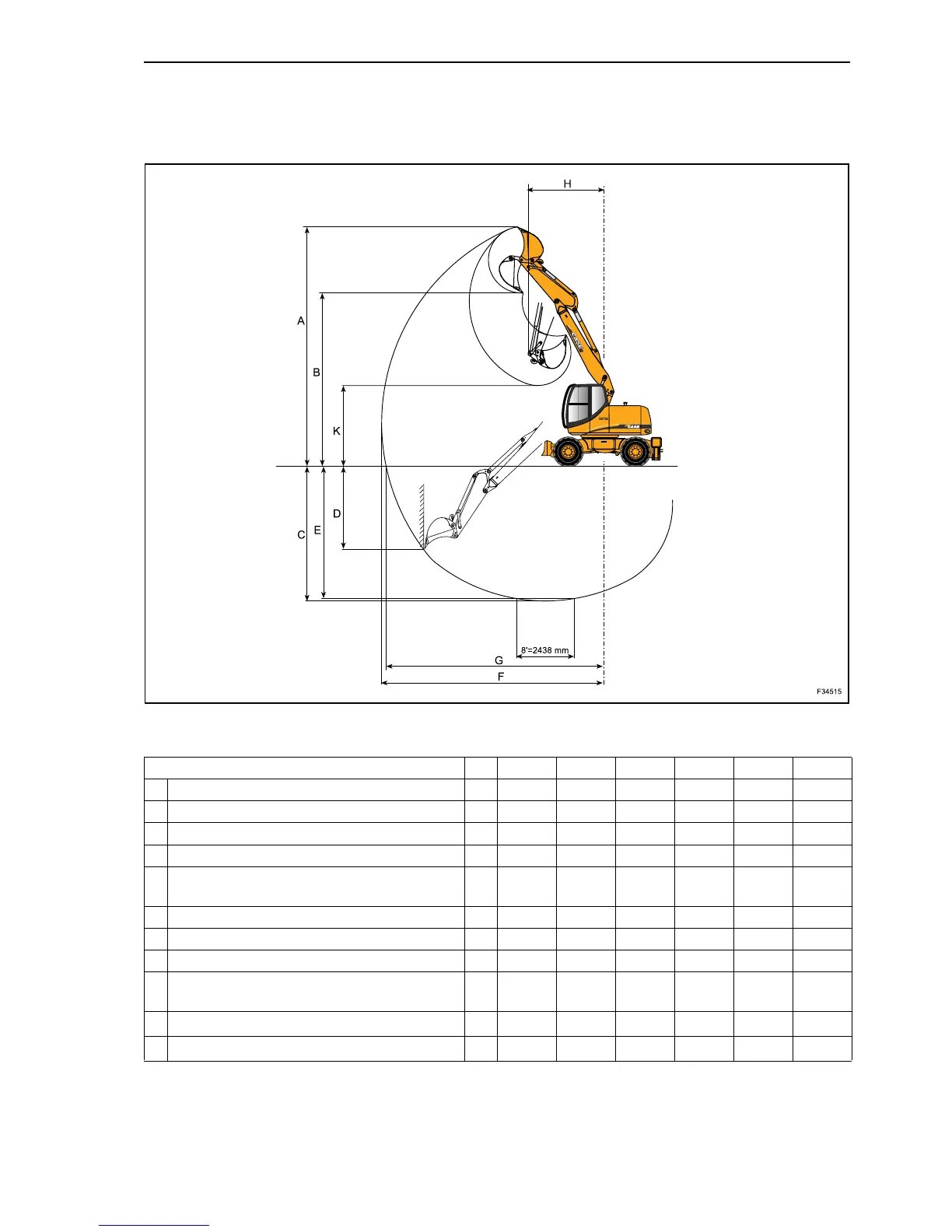

OUTFIT WITH PLACING BOOM
Dipper mm in 2000 78.74 2400 94.49 2800 110.24
A Maximum digging height mm in 9900 389.76 10200 401.57 10500 413.38
B Maximum loading height mm in 7200 283.46 7500 295.27 7800 307.08
C Maximum digging depth mm in 5200 204.72 5600 220.47 6000 236.22
D Maximum vertical wall digging depth mm in 3500 137.79 3800 149.60 4100 161.41
E
Maximum digging depth of cut for level
bottom (L = 2438 mm (95.98 in))
mm in 5100 200.78 5500 216.53 5900 232.28
F Maximum digging reach mm in 9000 354.33 9300 366.14 9700 381.89
G Maximum digging reach at ground mm in 8800 346.45 9200 362.20 9600 377.95
H Minimum swing radius mm in 3700 145.66 3300 129.92 2900 114.17
K
Maximum loading height (dipper
retracted)
mm in 2700 104.29 2900 114.17 3000 118.11
F
1
Bucket tensile force (370 bar (5366 psi))
kN lbf 125.4 28192.4 125.4 28192.4 125.4 28192.4
F
2
Dipper tensile force (370 bar (5366 psi))
kN lbf 108.7 24437.9 97 21807.5 87.6 19694.2
25
