MAIN COMPONENTS

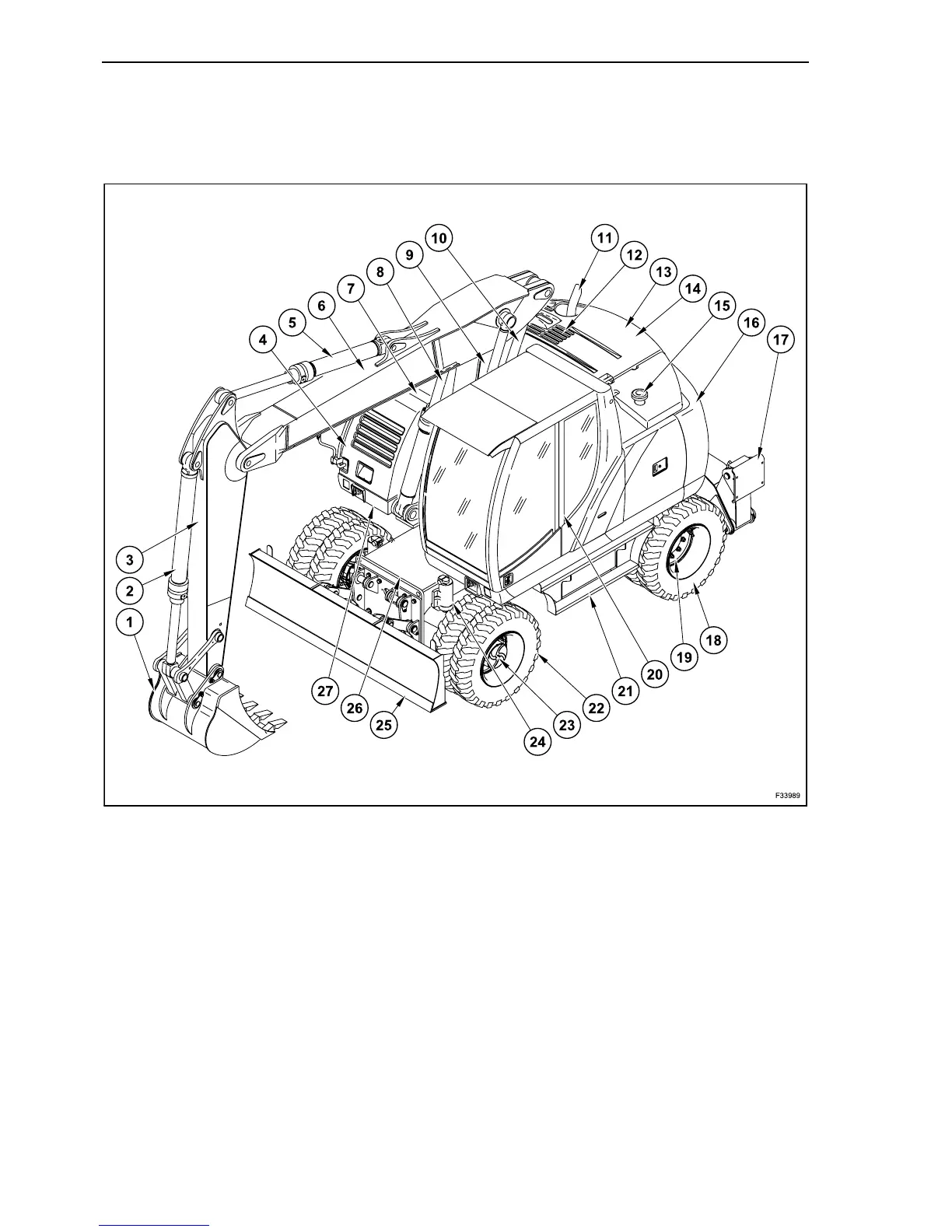

PLACING BOOM ATTACHMENT
1. Bucket
2. Bucket cylinder
3. Dipper
4. Batteries
5. Dipper cylinder
6. Placing boom
7. Multi-cooler
8. Boom cylinders
9. Boom
10. Boom adjusting cylinder
11. Muffler
12. Diesel engine
13. Hydraulic oil tank
14. Hydraulic pumps
15. Fuel tank
16. Counterweight
17. Stabilizers
18. Rear wheels
19. Rear axle
20. Cab
21. Stair and storage box
22. Front wheels
23. Front steering axle
24. Axle floating locking cylinders
25. Blade
26. Undercarriage
27. Upper structure
