SECTION 4
4-20

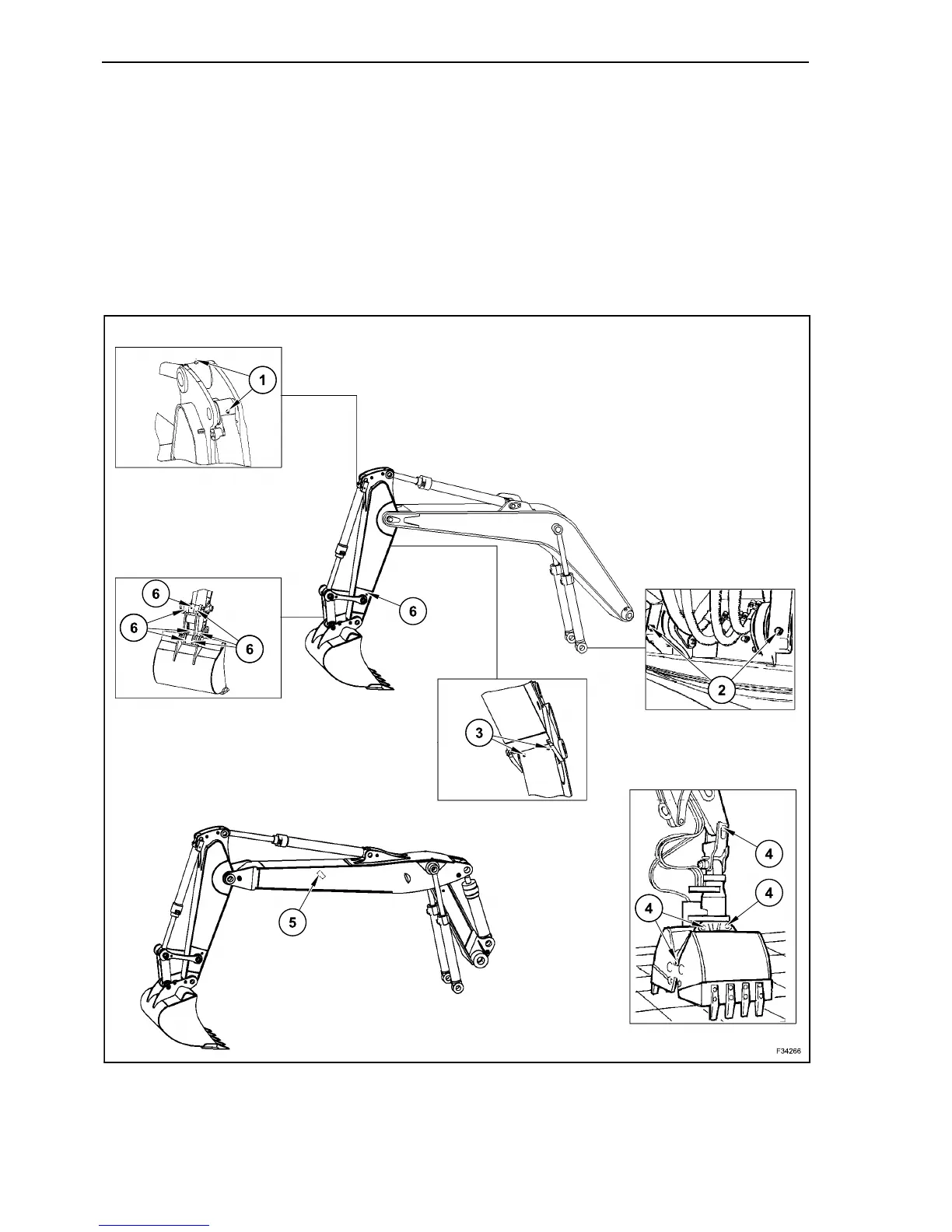

WORKING ATTACHMENT - GREASING
Before beginning the greasing operation:
- place the working attachment on the ground, com-
pletely extended;
- place the machine in a safe condition.
By means of the greasing pump, grease all lubrica-
tion points of the working attachment.
Release the loading area of the articulation joint.
Remove the protection cap from the grease nipple.
Clean the grease nipple.
Apply the pump nozzle on the grease nipple.
Now, pump the grease in such a quantity that the
new grease can eject the old one from the articula-
tion points.
Wipe off used grease with a cleaning rag.
After greasing, put protective cap back onto the
grease nipple.
17
