SUPPLIES AND SERVICE CHART
4-51

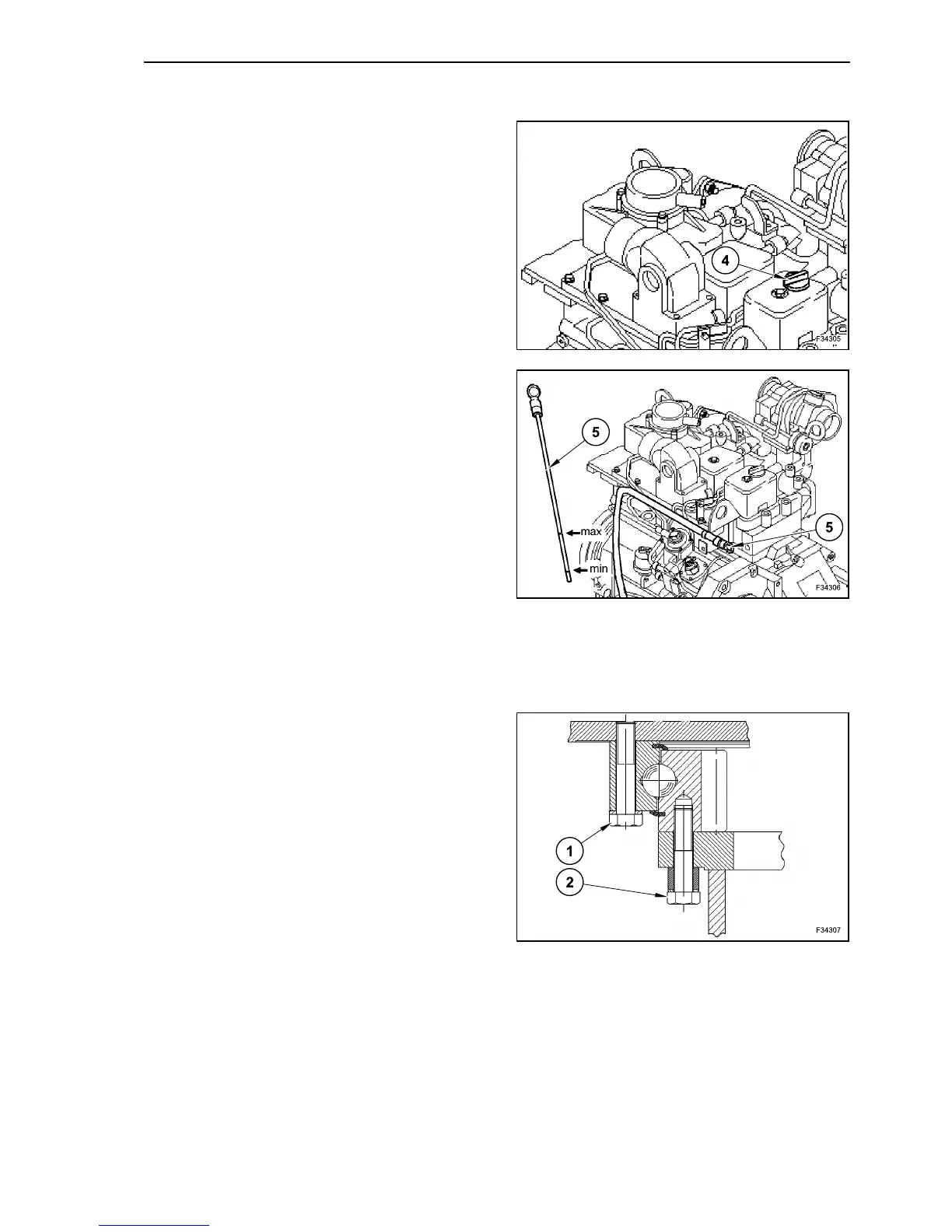

OIL FILLING
Screw up the hose.
Reassemble the base-plate for maintenance below
the engine compartment.
Engine oil filter change.
Carry out the oil filling by unscrewing the plug (4),
until you reach the reference “max” of the dipstick
(5).
SLEWING BEARING - SCREW
TIGHTENING CHECK
The fastening screws of the slewing bearing (1) and
undercarriage (2) are tightened to the prescribed
tightening torque.
The loosen screws have to be unscrewed first and
then tightened by means of a dynamometric key or
another tightening tool (electric / hydraulic) at the
prescribed tightening torque.
WX 145 = 270 Nm (199.14 lbf·ft)
WX 165 - WX 185 = 280 Nm (206.51 lbf·ft)
