SECTION 4
4-80
FUSES - REPLACEMENT
Shut off the engine and turn the ignition key to posi-
tion “0”, before removing the fuses.
Replace faulty fuses only with fuses of the same
amperages.

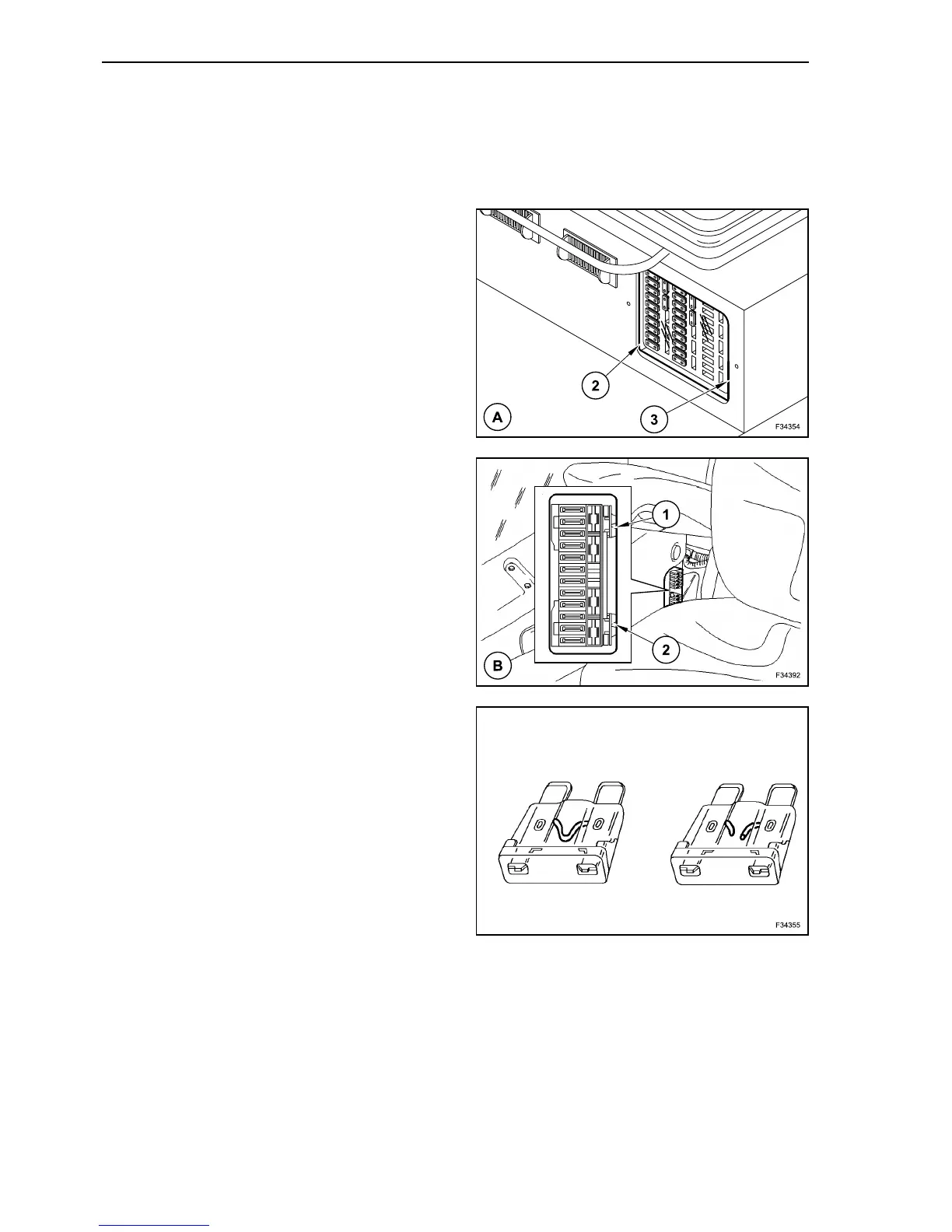

The fuses are placed in two fuse boxes (A) and (B):
a box (A) under the seat on the left side and the
other (B) on the right side of the cabin under the
control panel.
Remove the transparent cover (2) of the fuse holder,
after prior removal of the two side clamps (1).
Now you can have access to fuses.
If an electric control does not react, check the rele-
vant fuse as first thing.
Take out the fuse from the fuse holder. A suitable
tool for this operation is located in the fuse box.
Check the fuse. Nearly always it is possible to check
visually if a fuse is burnt out. In case of doubt, check
with an Ohmeter or replace the burnt fuse with a
new one.
If the fuse is burn out, fit in the fuse holder another
fuse with the same amperage.
If the fuse is still intact, check the relevant electric
unit, the connectors and cables.
117
118
YES
NO
119
