SECTION 4
4-46
BLADE AND STABILIZERS JOINTS,
CARDAN SHAFT, STEERING TRUNNION
PINS - GREASING
Before starting with the greasing operations place
the machine in a safe condition.
By means of the greasing pump, grease all lubrica-
tion points.
Remove the protection cap from the grease nipple.
Clean the grease nipple.
Apply the pump nozzle on the grease nipple.
Now, pump the grease in such a quantity that the
new grease can eject the old one from the articula-
tion points.
Wipe off used grease with a cleaning rag.
After greasing, put protective cap back onto the
grease nipple.

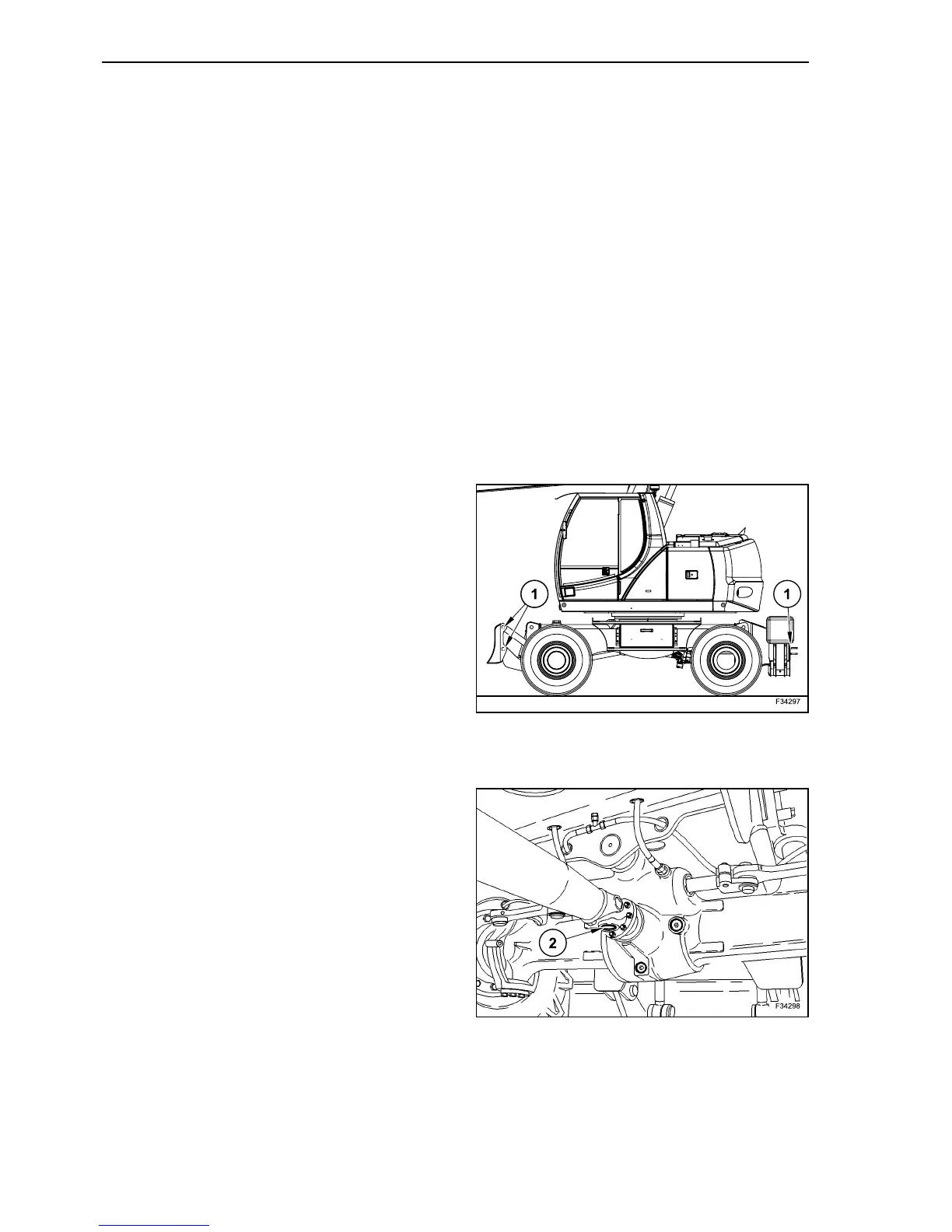

BLADE AND STABILIZERS JOINTS
(1) = No. 12 grease nipples
CARDAN SHAFT
(2) = No. 2 grease nipples
