SUPPLIES AND SERVICE CHART
4-25
WEEKLY SERVICE (50 HOURS)

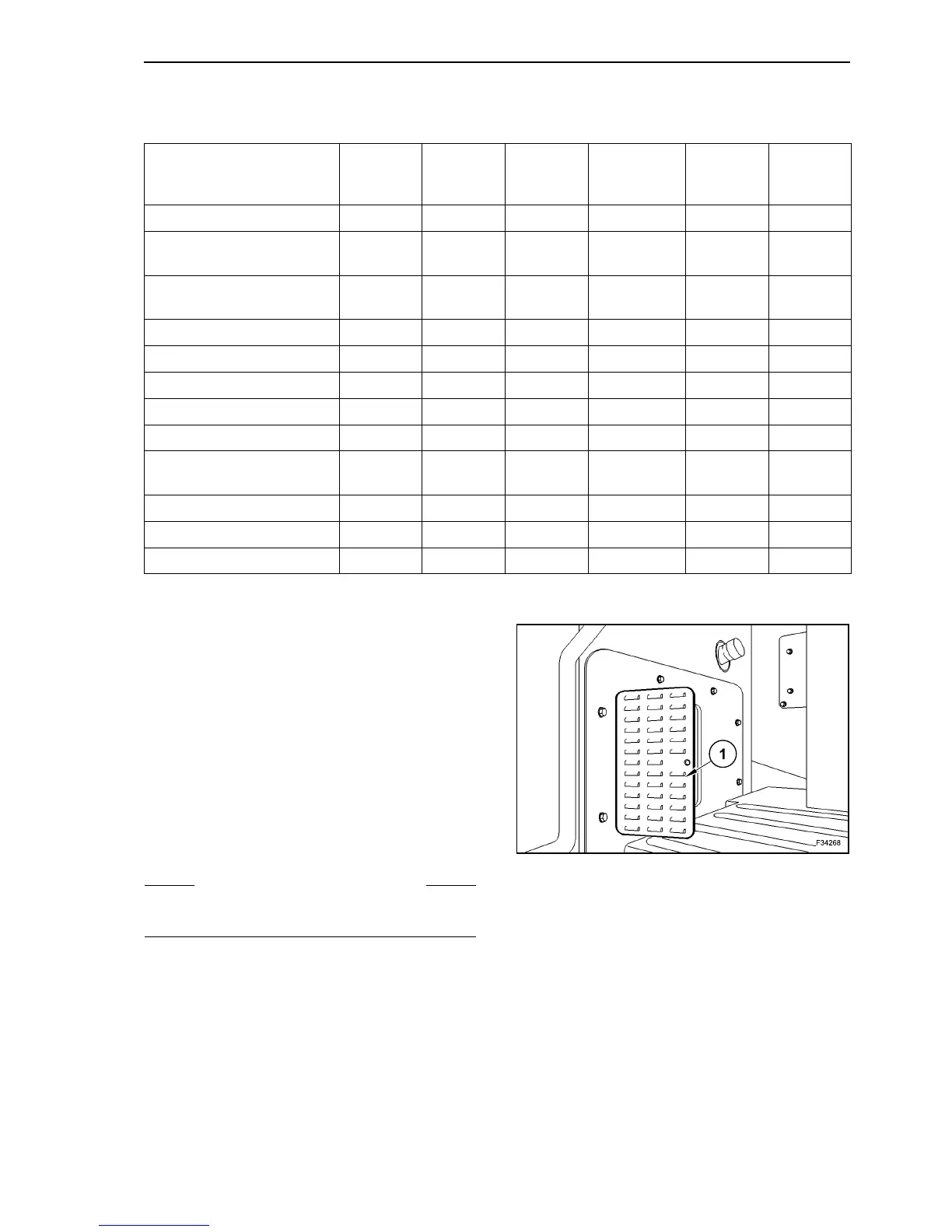

CAB AIR FILTER - CLEANING
The heating blower takes air from outside through
the rear wall of the cab.
The filter element is accessible by opening the
cover (1) on the rear wall of the cab by means of a
square-section tool.
Open the cover.
Take out the filter and shake it slightly or blow it with
a jet of compressed air without oil, lower than 6 bar
(87 psi). Keep the nozzle of the compressed air at a
distance of 3 cm (1.18 in) from the paper.
If dirt is heavy or after 3 cleanings the filter element
has to be replaced.
Do not clean the filter element with blows or strikes,
it could get damaged.
Insert the filter element, cleaned or new into the
guide and close the cover.
SERVICE POINTS Check
Level
check and
top-up
Cleaning Greasing
Air
bleeding
Water
draining
Cab - Air filter
Air filter: Dust discharge
valve - Main filter element
Air intake system: Intake
pipes
Cooler
Fuel system
Fuel filter
Slewing gearbox - Level
Battery - Electrolyte
Battery - Charge and clamps
tightening
Slewing bearing - Cups
Axles floating pins
Quick coupler
S WARNING S
During the cleaning with compressed air, always
wear protective goggles.
22
