SUPPLIES AND SERVICE CHART
4-79
AXLE FLOATING LOCKING CYLINDERS
- AIR BLEEDING
Park the machine on a level and firm surface.
Place the working attachment on the ground.
Shut off the engine.
Place chocks under the wheels.

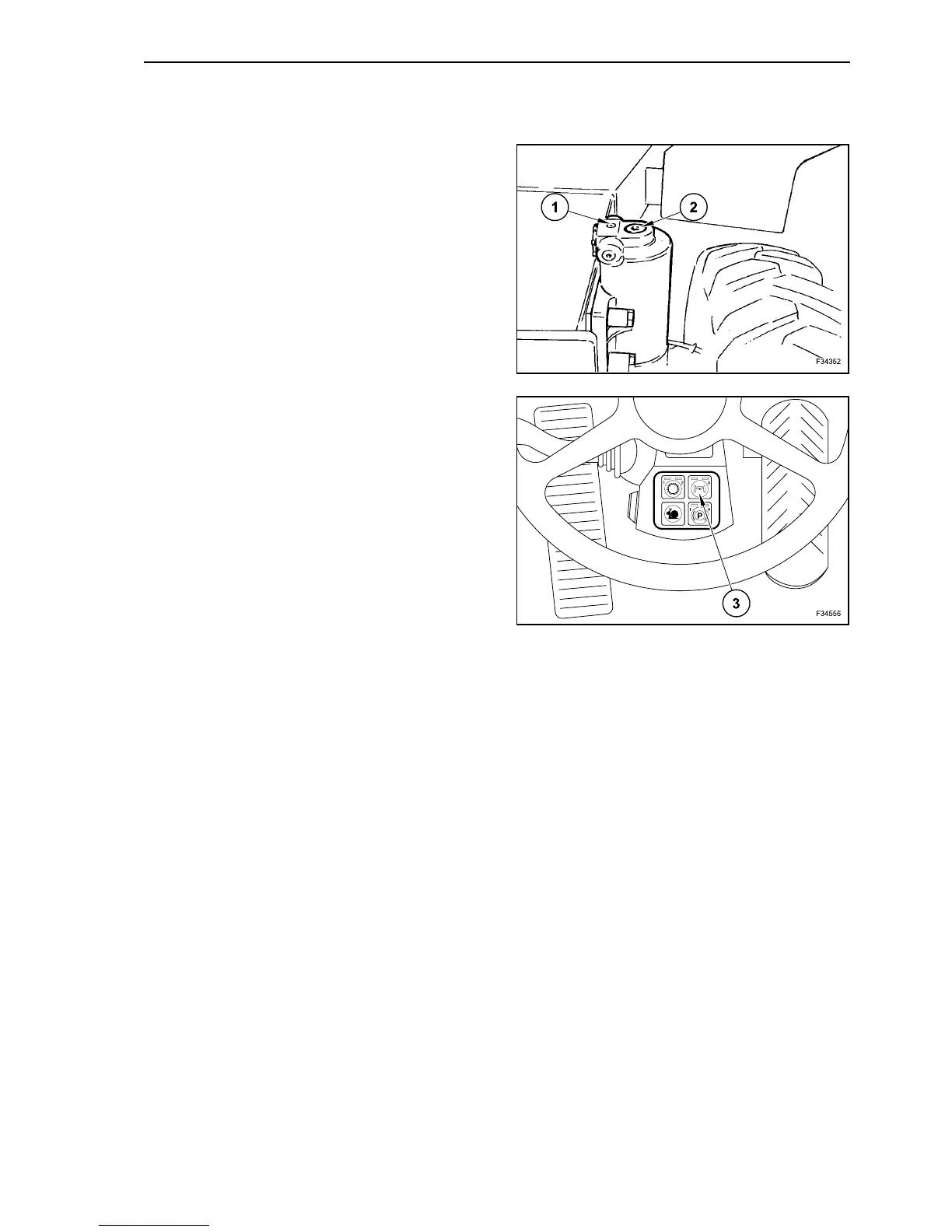

Unscrew the plugs (2) on both cylinders.
Push the pistons down, until they lean on the thrust
block of the axle.
Fill both cylinders with hydraulic oil and retighten the
plugs (2).
Unscrew both breather screws (1) and fill the ports
with hydraulic oil.
Screw up the breather screws (1) without tightening
them.
Start the engine and release the brake.
Disconnect the floating axle lock by depressing
push-button (3), the lamp and the symbol turn off.
When the flowing out oil is without air bubbles,
tighten the bleeding screws (1).
