SECTION 3
3-46
WORKING WITH STANDARD BUCKET OR CLAMSHELL
UPPER STRUCTURE SLEWING

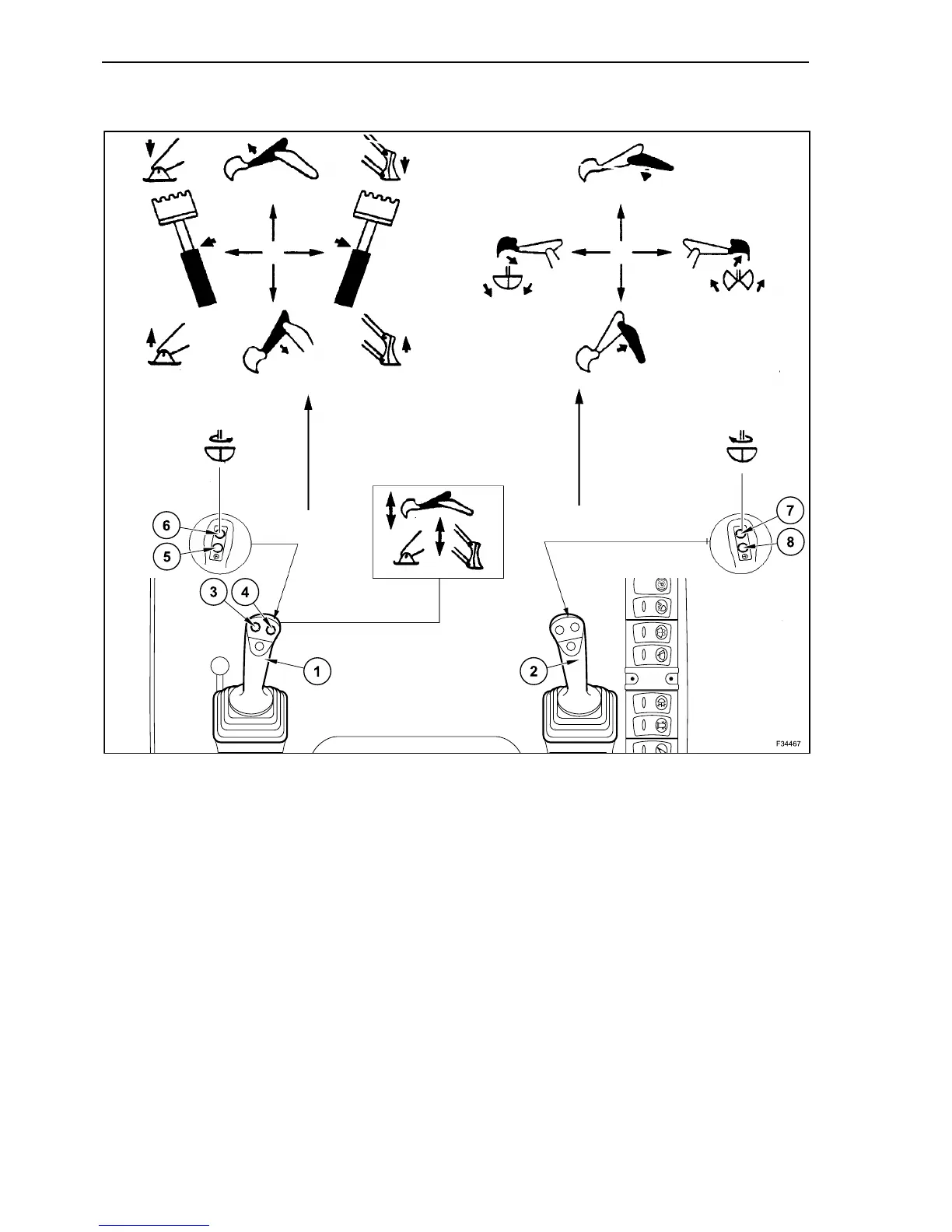

To slew the upper structure to the right:
Shift the left hydraulic control lever (1) to the right.
To slew the upper structure to the left:
Shift the left hydraulic control lever (1) to the left.
RAISING AND LOWERING THE BOOM
To raise the boom:
Pull the right hydraulic control lever (2) back.
To lower the boom:
Push the right hydraulic control lever (2) forward.
