Case WX145 - Or Off-Set Right Side; Ol Off-Set Left Side; Xr Off-Set Angle Right Side; Xl Off-Set Angle Left Side

SECTION 8
8-16

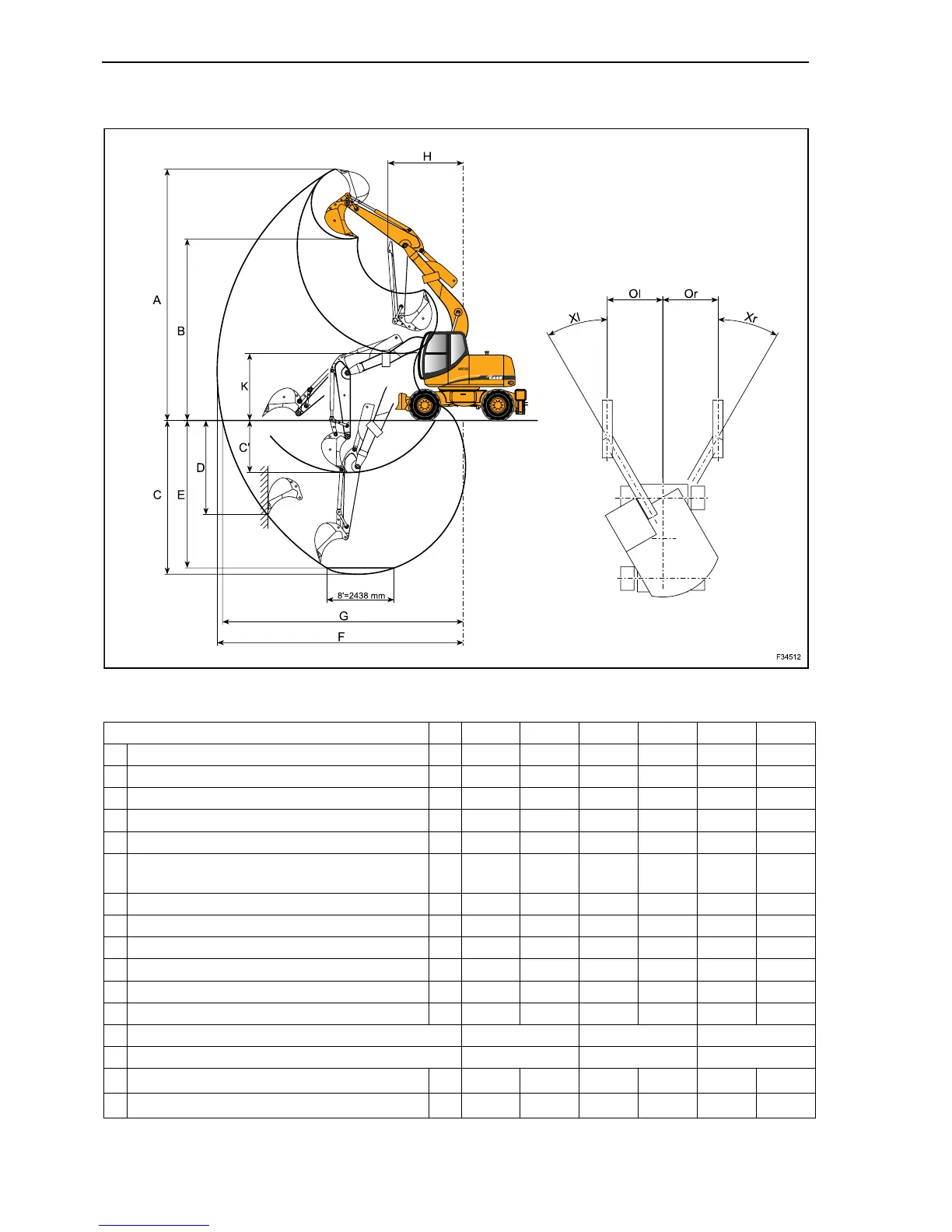

OUTFIT WITH OFF-SET BOOM
Dipper mm in 2300 90.55 2600 102.36 2900 114.17
A Maximum digging height mm in 8900 350.39 9100 358.26 9300 366.14
B Maximum loading height mm in 6300 248.03 6500 255.90 6700 263.78
C Maximum digging depth mm in 5300 208.66 5600 220.47 5900 232.28
C' Maximum off-set boom depth mm in 2300 90.55 2600 102.36 2800 110.24
D Maximum vertical wall digging depth mm in 3800 149.61 4100 161.42 4400 173.23
E
Maximum digging depth of cut for level
bottom (L = 2438 mm (95.98 in))
mm in 5100 200.79 5400 212.60 5700 224.41
F Maximum digging reach mm in 8700 342.52 8900 350.39 9200 362.20
G Maximum digging reach at ground mm in 8500 334.64 8800 346.46 9000 354.33
H Minimum swing radius mm in 2700 106.30 2700 106.30 2800 110.24
K Maximum loading height (dipper retracted) mm in 2700 106.30 2400 94.49 2100 82.68
Or Off-set right side mm in 3000 118.11 3000 118.11 3000 118.11
Ol Off-set left side mm in 2800 110.24 2800 110.24 2800 110.24
Xr Off-set angle right side ° 48 48 48
Xl Off-set angle left side ° 48 48 48
F
1
Bucket tensile force (370 bar (5366 psi))
kN lbf 112.5 25292.3 112.5 25292.3 112.5 25292.3
F
2
Dipper tensile force (370 bar (5366 psi))
kN lbf 71.7 16119.6 66.2 14883.1 61.5 13826.4
22
