DATA AND TECHNICAL SPECIFICATIONS
8-17

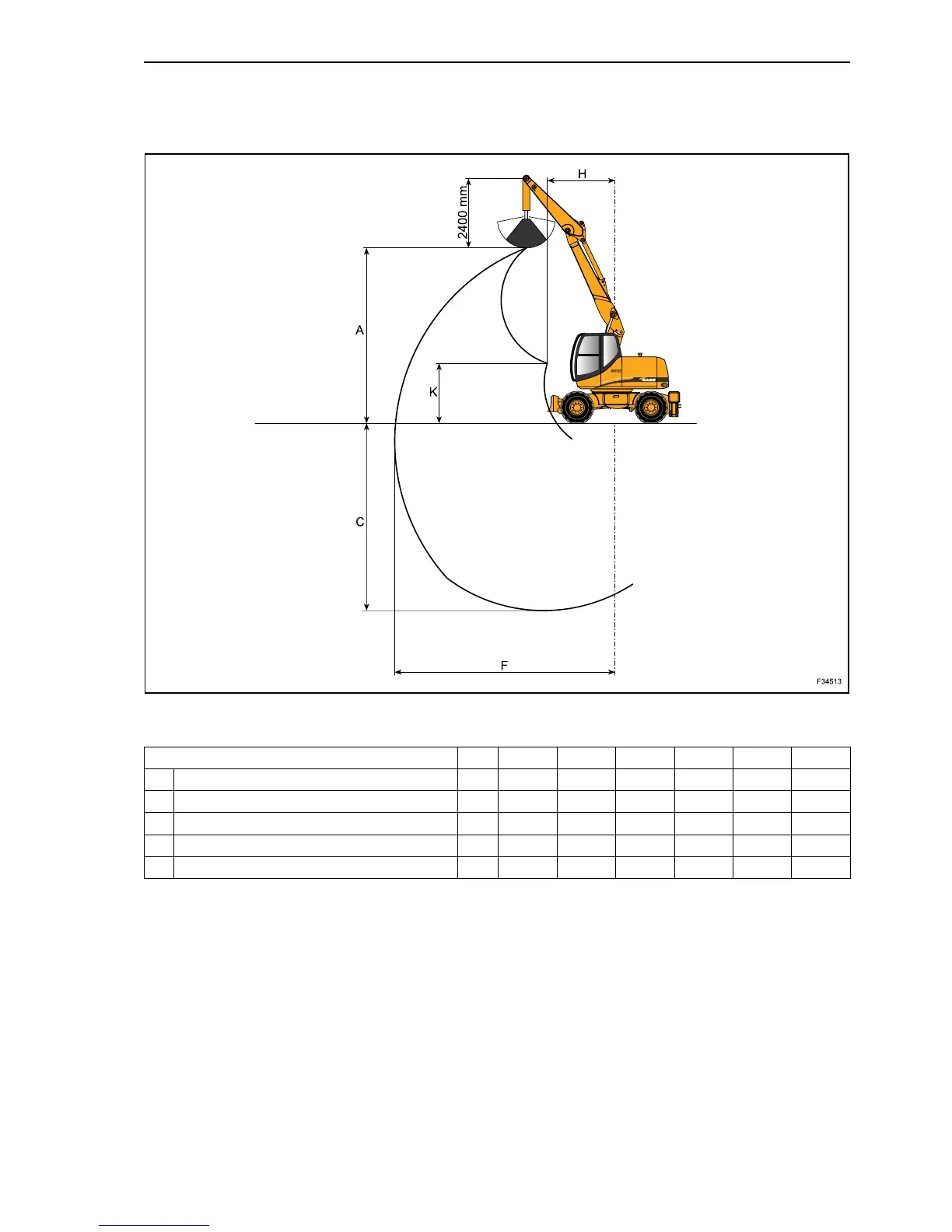

OUTFIT WITH CLAMSHELL BUCKET
Placing boom
Dipper mm in 2300 90.55 2600 102.36 2900 114.17
A Maximum loading height mm in 6100 240.16 6300 248.03 6500 255.90
C Maximum depth mm in 6500 255.90 6800 267.72 7100 279.53
F Maximum outreach mm in 7700 303.15 7900 311.02 8200 322.83
H Front swing radius mm in 2400 94.49 2500 98.42 2600 102.36
K Minimum loading height mm in 2100 82.68 1800 70.87 1500 59.05
