SUPPLIES AND SERVICE CHART
4-49
DRIVE BELTS - CHECK
Place the machine in a safe condition.
Shut off the engine.
Open the engine compartment cover.
Carry out a visual check of all engine belts, after the
opening of the side door, at the right in travel direc-
tion.

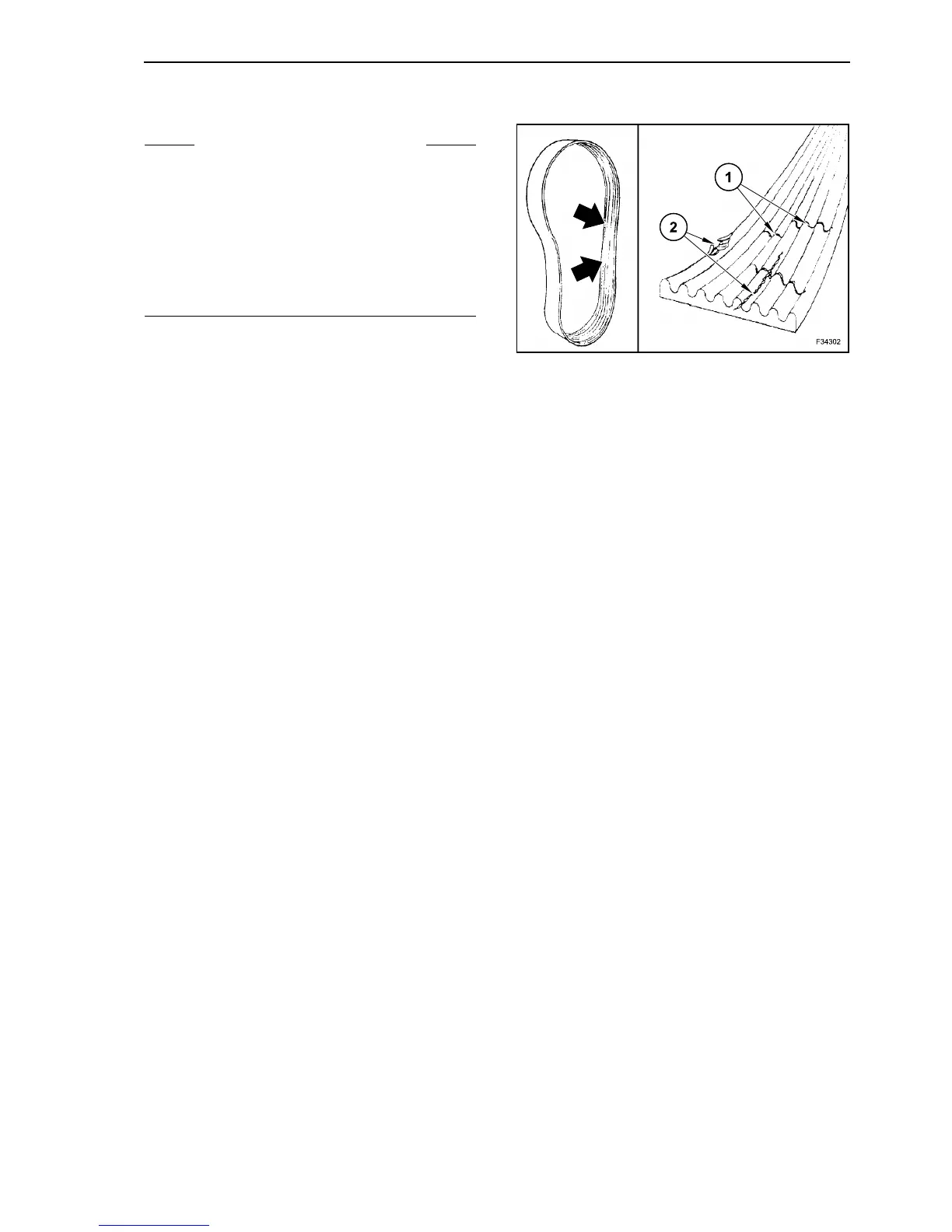

Check that the belts have no cracks crossing over.
Transversal cracks (1), parallel to the belt width are
allowed. Cracks parallel to the belt length (2), cross-
ing the transversal ones (1) are not allowed.
In this case the belt has to be replaced. The belt
must be replaced also in case of frayed edges or if it
is losing pieces.
Check that the belts have no shiny or worn out
spots. In this case the belt is loose or it slips.
S WARNING S
Accidents hazard, caused by the blower blades and
by the belts in motion.
Shut off the engine before opening the engine
hood.
Risk of burns caused by engine, silencer and cool-
ers hot components.
Start the maintenance works and repair only after
the engine, the silencer and the radiators are cool.
