SECTION 7
7-42

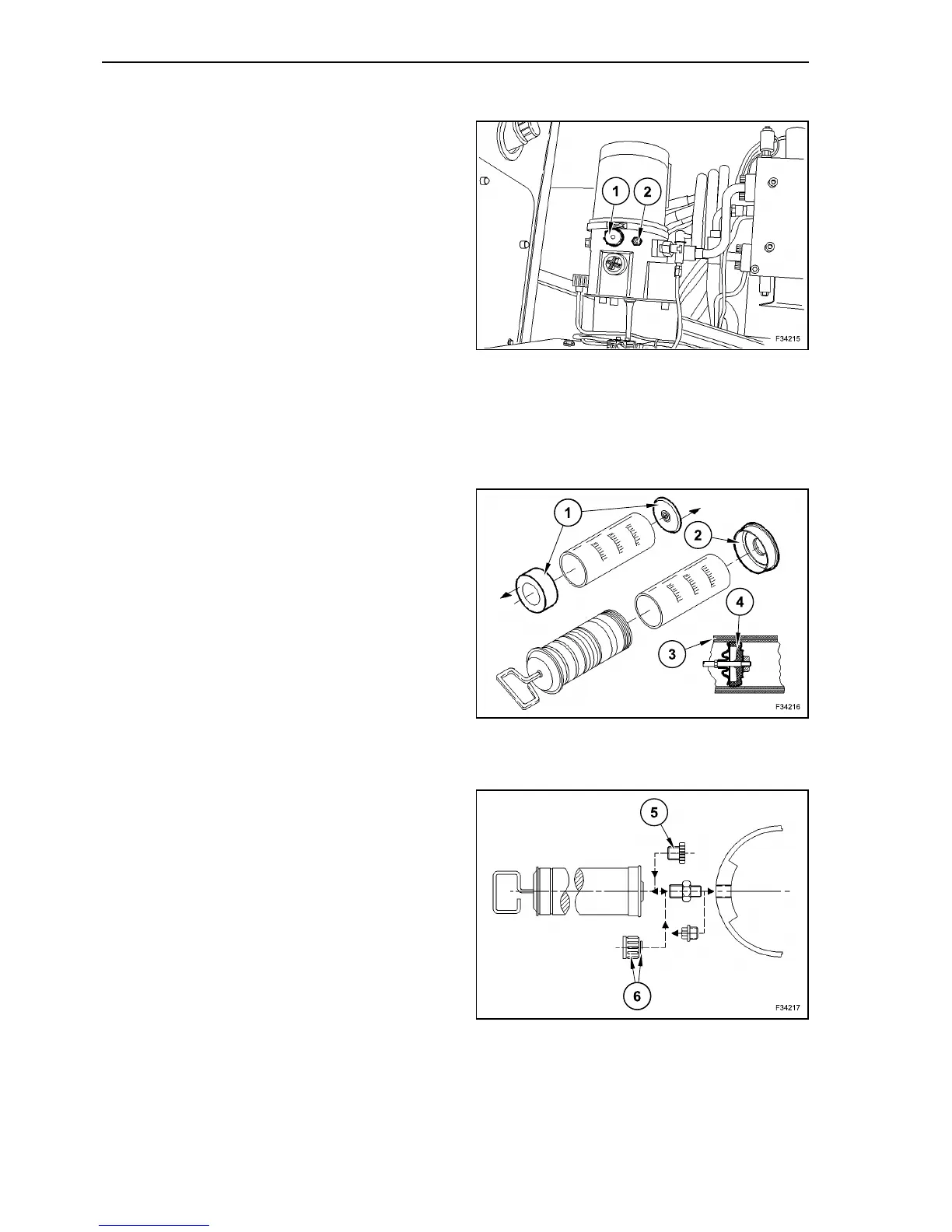

FILLING OF THE TANK PUMP
The filling of the tank pump is performed through fit-
tings (1) or (2).
MANUAL FILLING PUMP
ASSEMBLY
Remove both cartridge caps (1).
Prior to the assembly of the manual filling pump, pay
attention to insert also the gasket (2).
By means of the plunger, fill grease into the tank
pump through the fitting. Repeat this operation until
grease reaches the maximum level. If an overfilling
takes place, grease comes out from the overflow
opening.
After the filling of the tank pump, replace the cap (5)
and the cover (4).
REUSE OF THE MANUAL PUMP
It is possible to fill the manual pump by taking the
grease from a barrel. Pay attention not to twist the
lip of the seal pack (6).
