Case WX145 - Controls and Pedals

SECTION 2
2-8
CONTROLS AND PEDALS

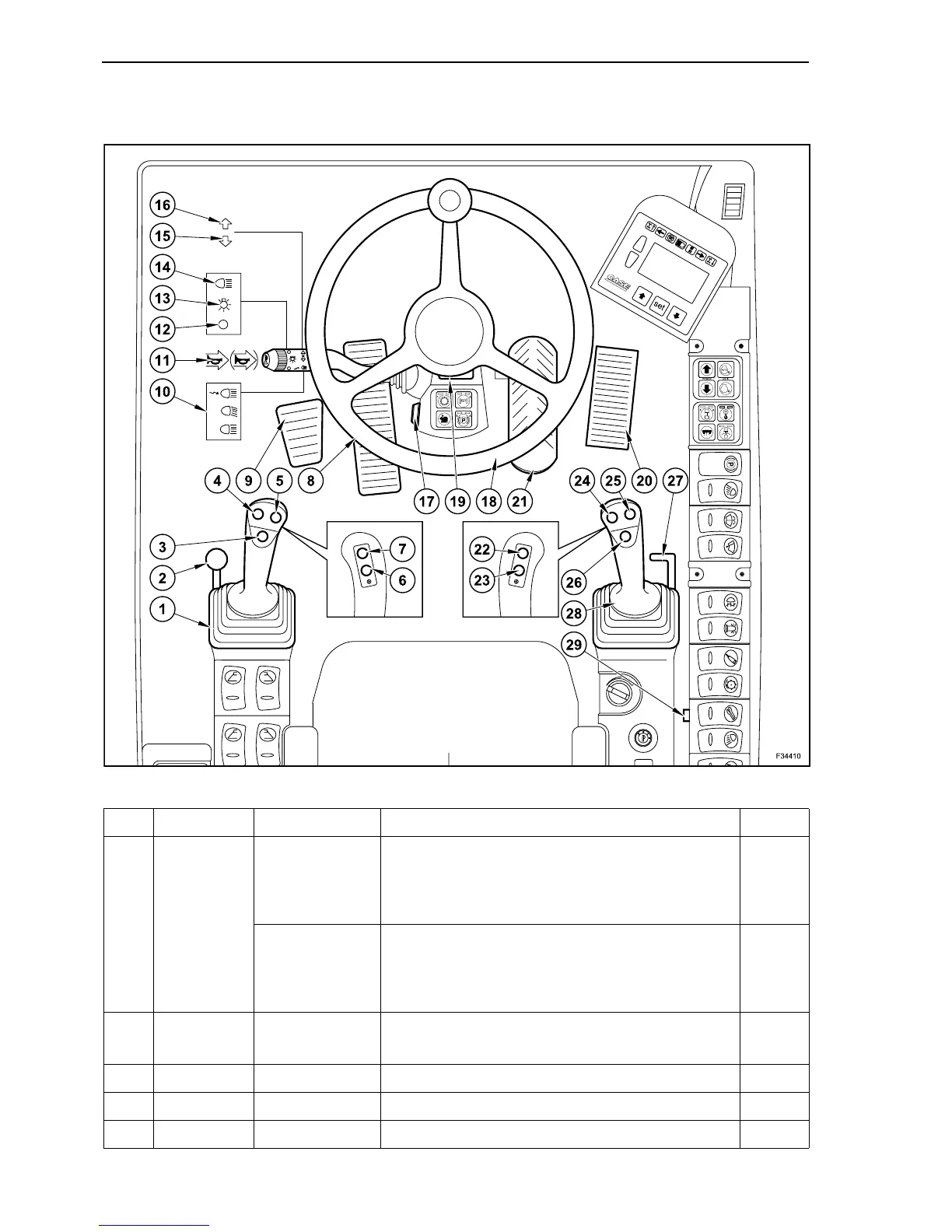

Ref. Description Operation Symbol
1
Left hydraulic
control lever
Slewing
By shifting the lever to the right - the upper structure
slews right.
By shifting the lever to the left - the upper structure
slews left.
Dipper/blade and
stabilizers
By shifting the lever forward - the dipper extends - the
blade/stabilizers lower.
By shifting the lever backward - the dipper retracts -
the blade/stabilizers raise.
2 Safety lever Pilot control
By shifting the lever upward the pilot control is OFF.
By shifting the lever downward the pilot control is ON.
3 Push-button Travel direction Selection of idle run.
4 Push-button Travel direction Selection of forward travel direction.
5 Push-button Travel direction Selection of reverse travel direction.
