Case WX145 - Monoboom Attachment

INTRODUCTION, SAFETY, PLATES AND DECALS
1-29

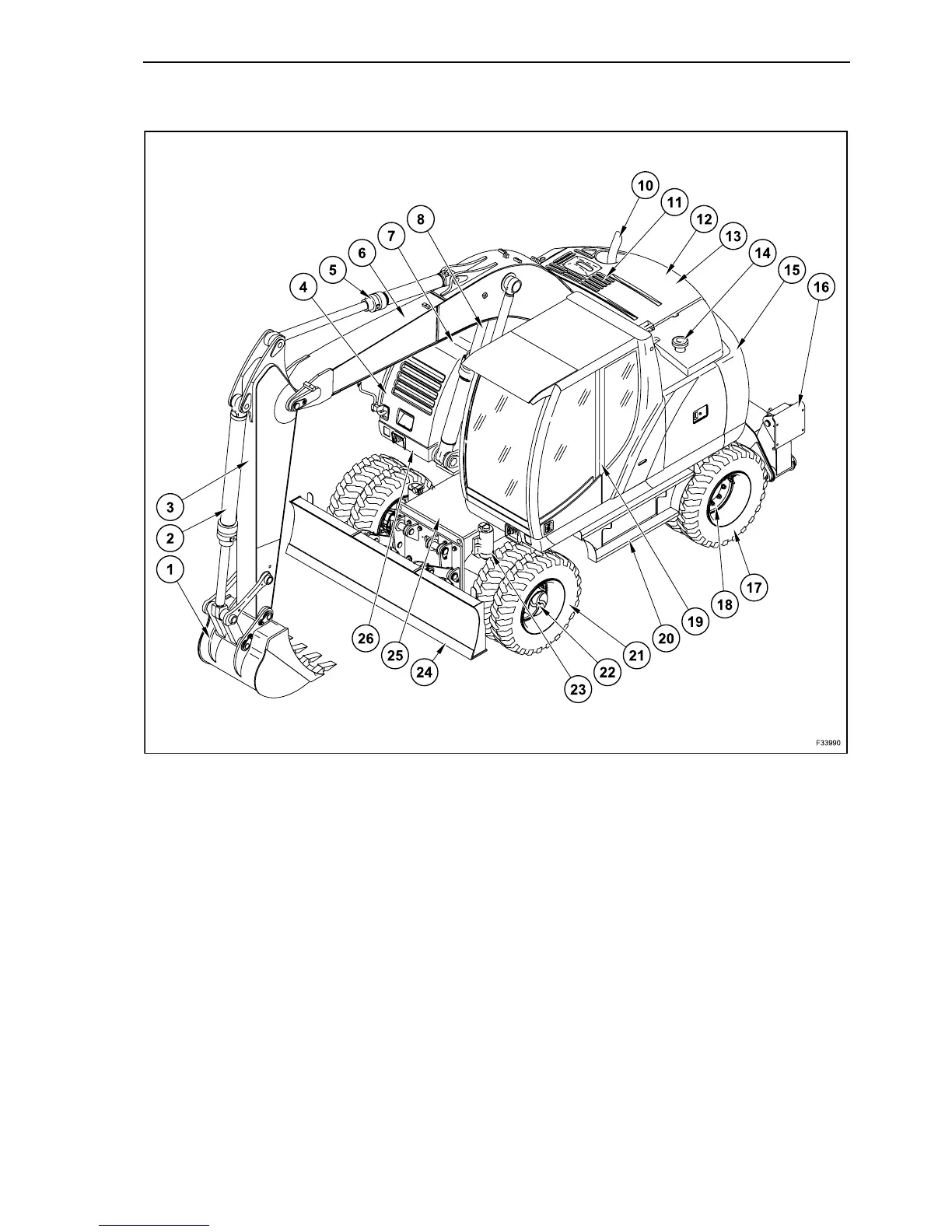

MONOBOOM ATTACHMENT
1. Bucket
2. Bucket cylinder
3. Dipper
4. Batteries
5. Dipper cylinder
6. Monoboom
7. Cooler
8. Boom cylinders
10. Muffler
11. Diesel engine
12. Hydraulic oil tank
13. Hydraulic pumps
14. Fuel tank
15. Counterweight
16. Stabilizers
17. Rear wheels
18. Rear axle
19. Cab
20. Stair and storage box
21. Front wheels
22. Swinging front axle
23. Axle floating locking cylinders
24. Blade
25. Undercarriage
26. Upper structure
