Case WX145 - Wx 165 Models

SECTION 8
8-14

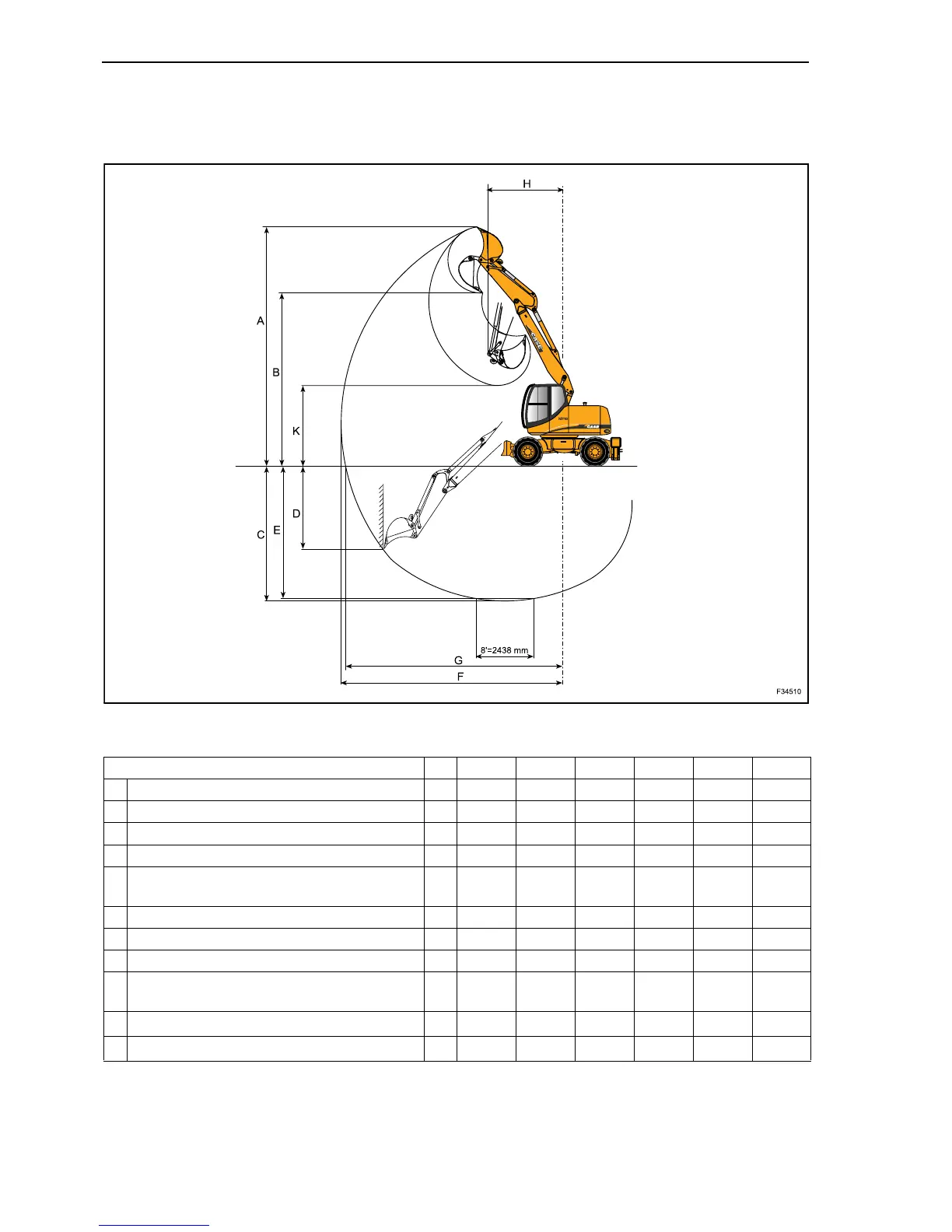

WX 165 MODELS
OUTFIT WITH PLACING BOOM
Dipper mm in 2300 90.55 2600 102.36 2900 114.17
A Maximum digging height mm in 9800 385.83 10000 393.70 10300 405.51
B Maximum loading height mm in 7100 279.53 7400 291.33 7600 299.21
C Maximum digging depth mm in 5400 212.59 5700 224.40 6000 236.22
D Maximum vertical wall digging depth mm in 3100 122.04 3400 133.85 3600 141.73
E
Maximum digging depth of cut for level
bottom (L = 2438 mm (95.98 in))
mm in 5300 208.66 5600 220.47 5900 232.28
F Maximum digging reach mm in 9000 354.33 9300 366.14 9600 377.95
G Maximum digging reach at ground mm in 8800 346.45 9100 358.27 9400 370.08
H Minimum swing radius mm in 2700 106.29 2800 110.24 2900 114.17
K
Maximum loading height (dipper
retracted)
mm in 3100 122.05 2800 110.24 2600 102.36
F
1
Bucket tensile force (370 bar (5366 psi))
kN lbf 112.5 25292.2 112.5 25292.2 112.5 25292.2
F
2
Dipper tensile force (370 bar (5366 psi))
kN lbf 71.7 16119.6 66.2 14883.1 61.5 13826.4
20
