SECTION 4
4-62

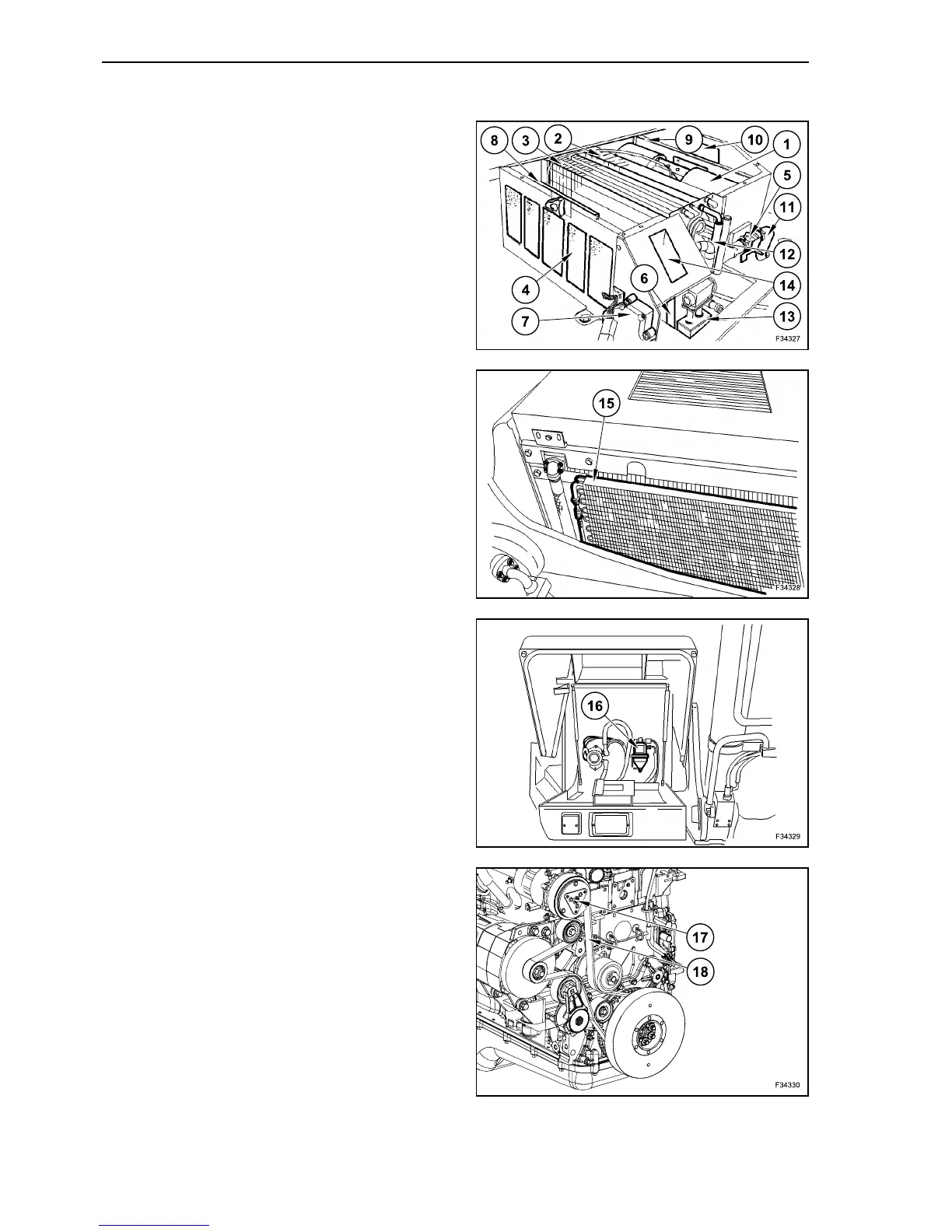

SYSTEM COMPONENTS
The air conditioning system consists of:
- blower (1);
- heat exchanger (2);
- evaporator (3);
- panel filter (4);
- heating valve (5);
- draining sleeve for condensate discharge (6);
- motor for air re-circulation and outer air intake (7);
- thermostat, electronic control unit (8);
- feet area air outlets (9);
- air outlet on front and rear window (10);
- coolant inlet (11);
- coolant outlet (12);
- connection of air conditioning hoses (13);
- air from outside (14) inlet;
(these elements are accessible by removing the
upper cover)
- condenser (15): it is visible from the cab, being
installed in front of the multi-cooler;
- cooler tank with dehumidifier (16): it is installed in
the batteries compartment;
- compressor (17): it is installed in the engine com-
partment on the front;
- compressor belt (18).
86
87
88
89
