Lift the dipper and remove completely the bucket
cylinder rod.
Set the switch to locking position.
The acoustic alarm stops sounding.

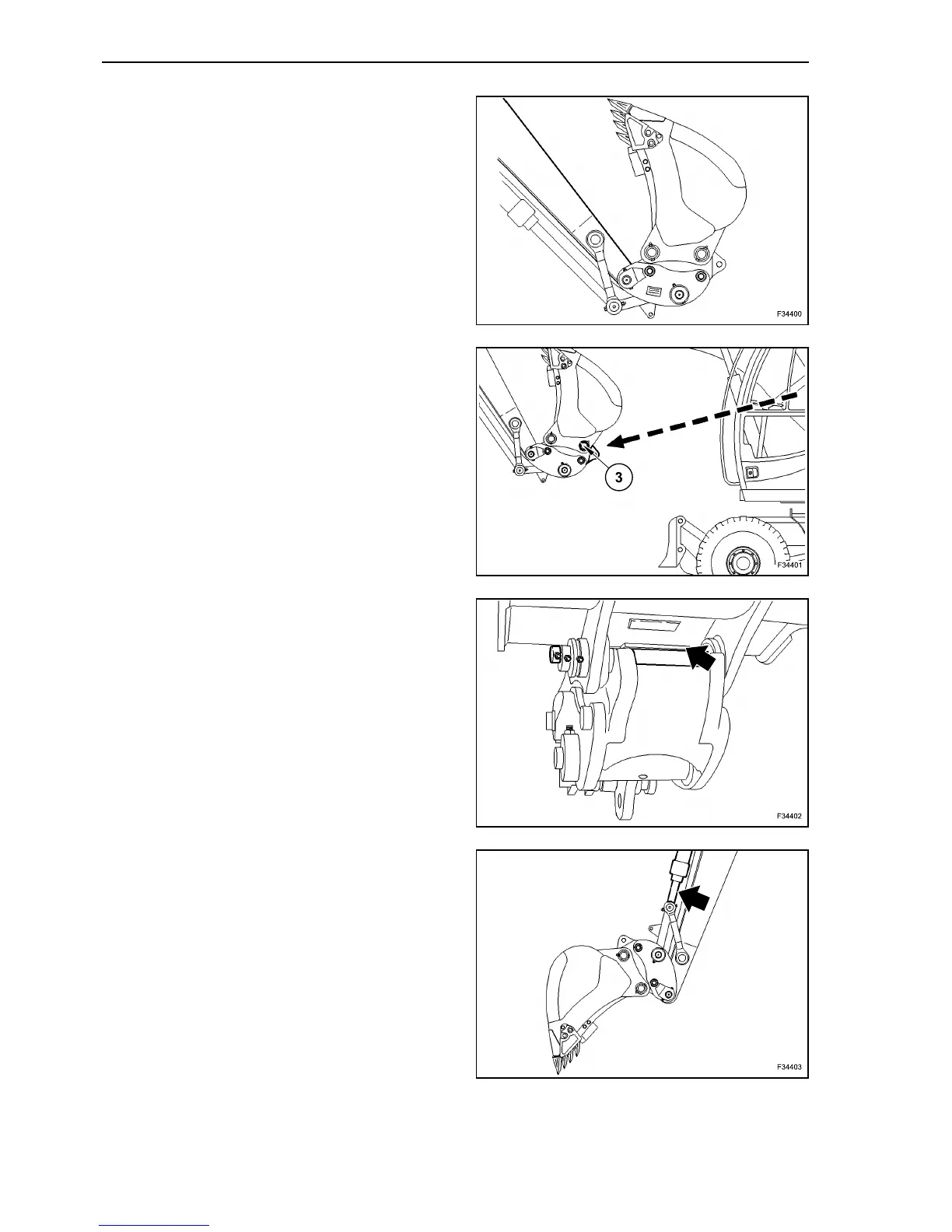

Keep the bucket cylinder under pressure so as to
allow the closure of the locking hook. Lift the work-
ing attachment so that the bucket pin (3) becomes
visible.
By means of a visual check, verify that the bucket
pin is correctly fitted into the locking hook.
To allow the engagement of the safety device,
retract completely the bucket cylinder rod, by mov-
ing the bucket hydraulic control lever.
IMPORTANT: if a visual check is not possible when
sitting, dismount from the machine and check if the
working attachment is properly secured with the
safety device hooked.
