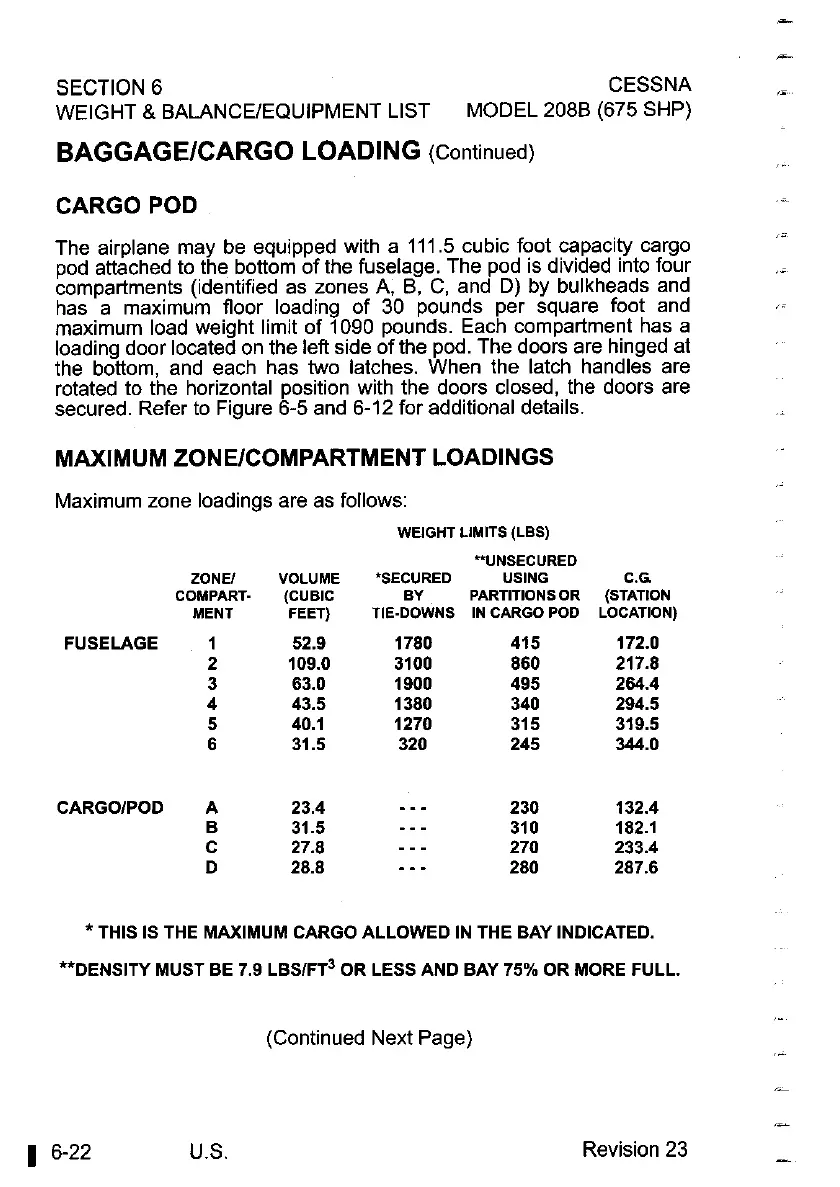

SECTION 6 CESSNA
,-
WEIGHT
&
BALANCEIEQUIPMENT LIST
MODEL
2088 (675 SHP)
BAGGAGEICARGO LOADING
(Continued)
CARGO POD
,=
The airplane may be equipped with a 111.5 cubic foot capacity cargo
pod attached to the bottom of the fuselage. The pod is divided into four
,=
compartments (identified as zones A, B, C, and D) by bulkheads and
has a maximum floor loading of 30 pounds per square foot and
,;
maximum load weight limit of 1090 pounds. Each compartment has a
loading door located on the
lefi side of the pod. The doors are hinged at
the bottom, and each has two latches. When the latch handles are
rotated to the horizontal position with the doors closed, the doors are
secured. Refer to Figure 6-5 and 6-12 for additional details.
,.
MAXIMUM ZONEICOMPARTMENT LOADINGS
Maximum zone loadings are as follows:
ZONE1
COMPART.
MENT
FUSELAGE
1
2
3
4
5
6
VOLUME
(CUBIC
FEET)
52.9
109.0
63.0
43.5
40.1
31.5
WEIGHT
LIMITS
(LBS)
"UNSECURED
'SECURED
USING
BY
PARTITIONSOR
TIELlOWNS
IN
CARGO
POD
1780 415
3100 860
1900 495
1380 340
1270 315
320 245
C.G
(STATION
LOCATION)
172.0
217.8
264.4
294.5
319.5
344.0
CARGOIPOD A
23.4
---
230 132.4
B
31.5
---
310 182.1
C
27.8
- - -
270 233.4
THIS IS THE MAXIMUM CARGO ALLOWED IN THE BAY INDICATED.
**DENSIN MUST BE
7.9
LBSIFT~
OR LESS AND BAY
75%
OR MORE FULL.
(Continued Next Page)
