CESSNA SECTION
6
MODEL 2088 (675 SHP) WEIGHT
&
BALANCEIEQUIPMENT LIST
-m
RIGHT SIDE NET
CABIN TOP STRUCTURE
(WITH 6 QUICK-
RELEASEFASTENERS
CENTER NET
CARGO BARRIER (WITH
4
QUICK-
RELEASE
FASTENERS)
LEFT
SlDE NET
(WITH 6
QUCK-
PILOT AND FRONT RELEASE
PASSENGER FASTENERS)
SEAT RAILS
MAX.
LOAD
BEHIND
IWRWARD AT-iW3-i
BARRIER PIN LOCATED AT
3400
LBS. TOTAL STATION
153
ZONES
FWD
OF LAST
ON SEAT RAILS
LOADED ZONE MUST
BE AT LEAST
75%
FULL BY VOLUME. SEE
-75%
-75%
POH
FOR EXCEPTIONS.
-
CHECK WEIGHT
AND BALANCE
-
.
CARGO
BARRIER
(AFT
SIDE)
zmmim
NOTE
1.
Installation of the fire extinauisher on the carao barrier is not
" "
shown.
1
2.
The cargo barrier and attached barrier nets must be installed
J
to provide forward crash load restraint.
3.
The quick-release fasteners which secure the center and side
'
1
barrier nets allow momentary detachment of the nets for
=9
loading and unloading of items through the crew area.
-,

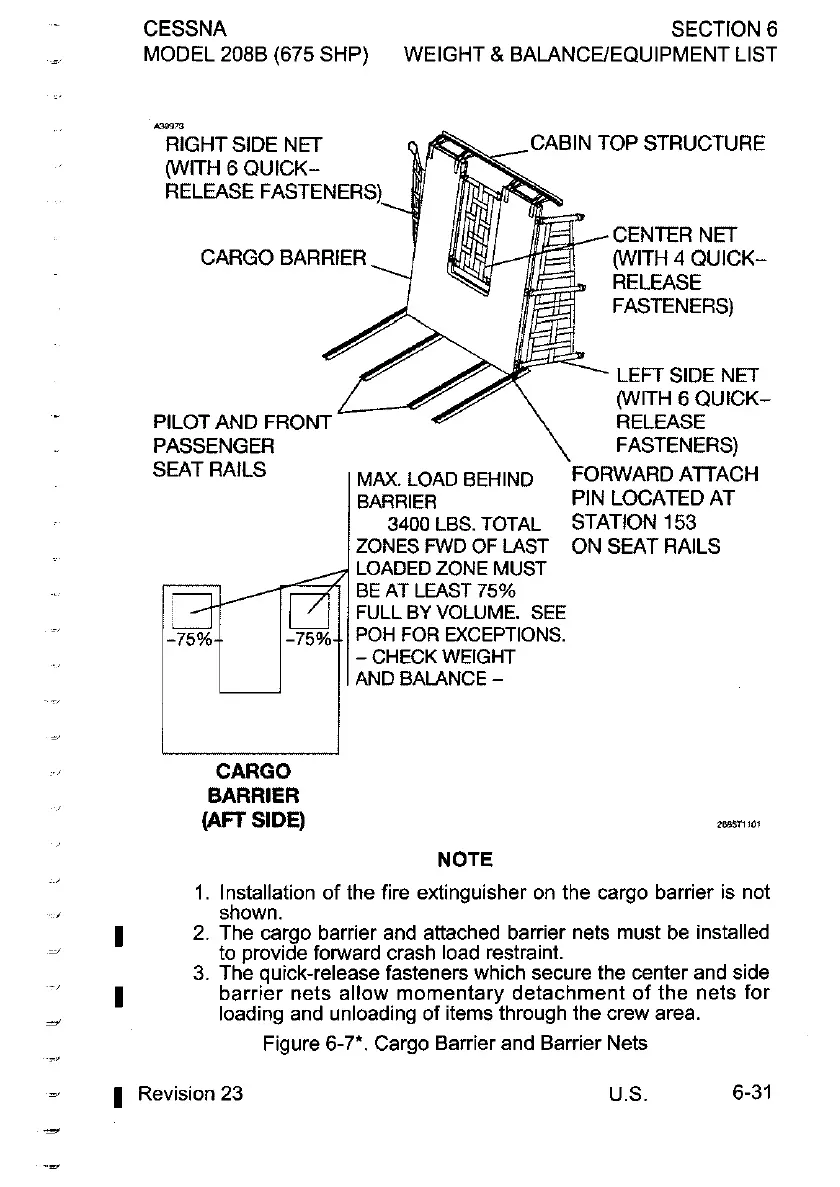

Figure 6-7*. Cargo Barrier and Barrier Nets
-
1
Revision 23
-
U.S. 6-31
