SECTION
6
CESSNA
WEIGHT
&
BALANCEIEQUIPMENT LIST MODEL
2088
(675
SHP)
-74
SIDE-WALL AND CBLING ANCHOR PLATE (WPICAL)
ICK-RELEASE FASTENER
246.80 PARTITION
REINFORCEMENT
QUICK-RELEASE
K-RELEASE FASTENER
FLOOR-MOUNTED
ANCHOR PLATE FORWARD
OF RAISED CARGO
FLOOR
NOTE
1.
Partition nets are available for installatlon at stations 188.7, 246.8,
282.0, 307.0 and 332.0.
2.
If partitions are used, they must be used in conjunction with the cargo
barrier. Partitions are not designed to withstand crash loads, therefore
they cannot be considered as a replacement for the barrier.
3. Each partition will withstand the forward and ait operational loads
applied during takeoff, flight and landing by any two (2) zones forward or
aft of the partition. Use of the partitions will allow loading of the zones
without tying down the cargo if the load density is no more than 7.9
pounds per cubic foot and the zone is more than 75% full. Cargo loading
that does not meet these requirements must be secured to the cabin
floor.

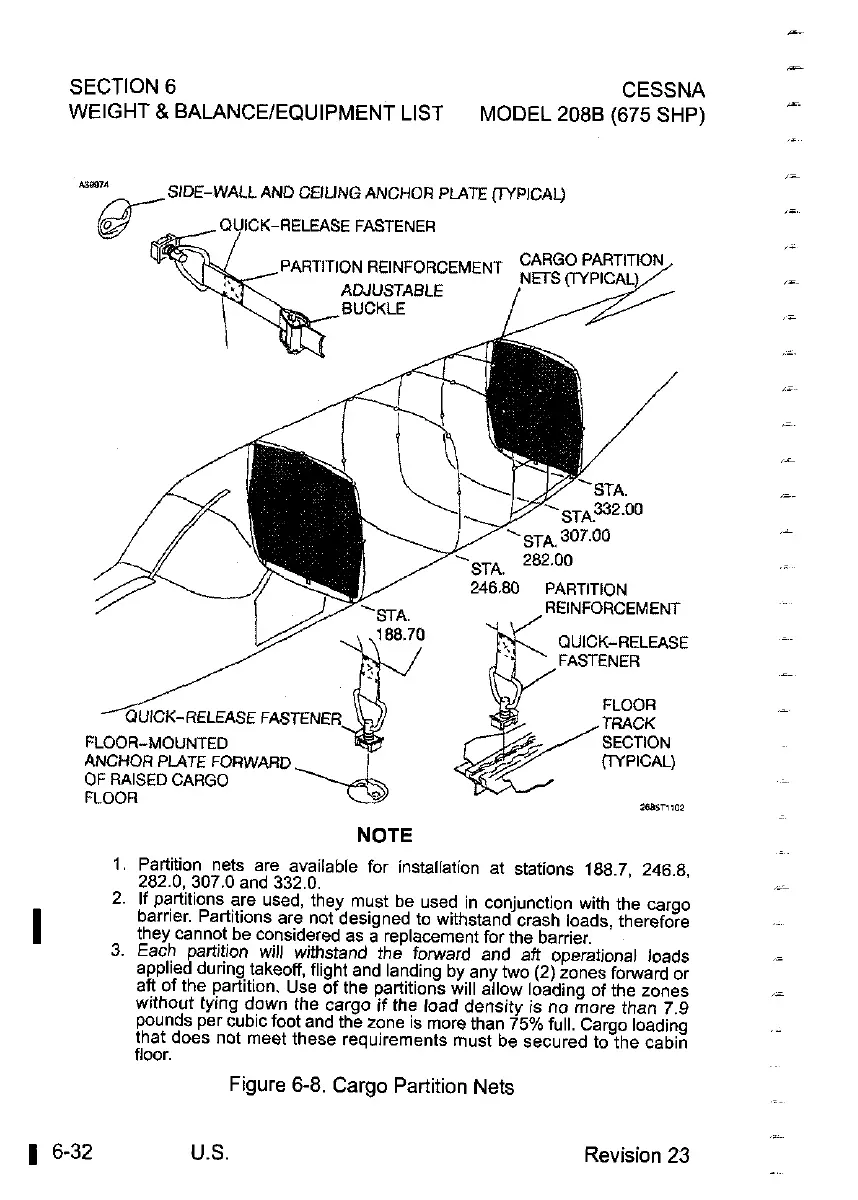

Figure
6-8.
Cargo Partition Nets
