CESSNA SECTION 6
MODEL
2088 (675 SHP) WEIGHT
&
BALANCEIEQUIPMENT LIST
A3-78
!
100.00 118.W 156.40 188.70
246.80
282.W 307.00 332.00 356.00
STATION
(C.G.
ARM)
2-71
W'
NOTE
1.
*Pilot or front passenger center of gravity on adjustable seats
positioned for an average occupant with the seat locking pin
at station 145.0. Numbers in parentheses indicate forward
-,
and aft limits of occupant center of gravity range.
2.
**Cargo area center of gravity in Zones 1 thru 6 based on the
.
,
mid point of the zone.
3. Vertical lines marked on the cargo area sidewalls or the
.,
forward face of the raised floor (Station 332.0) can be used as
a convenient reference point for determining the location of
.,
occupant or cargo fuselage station.
=,

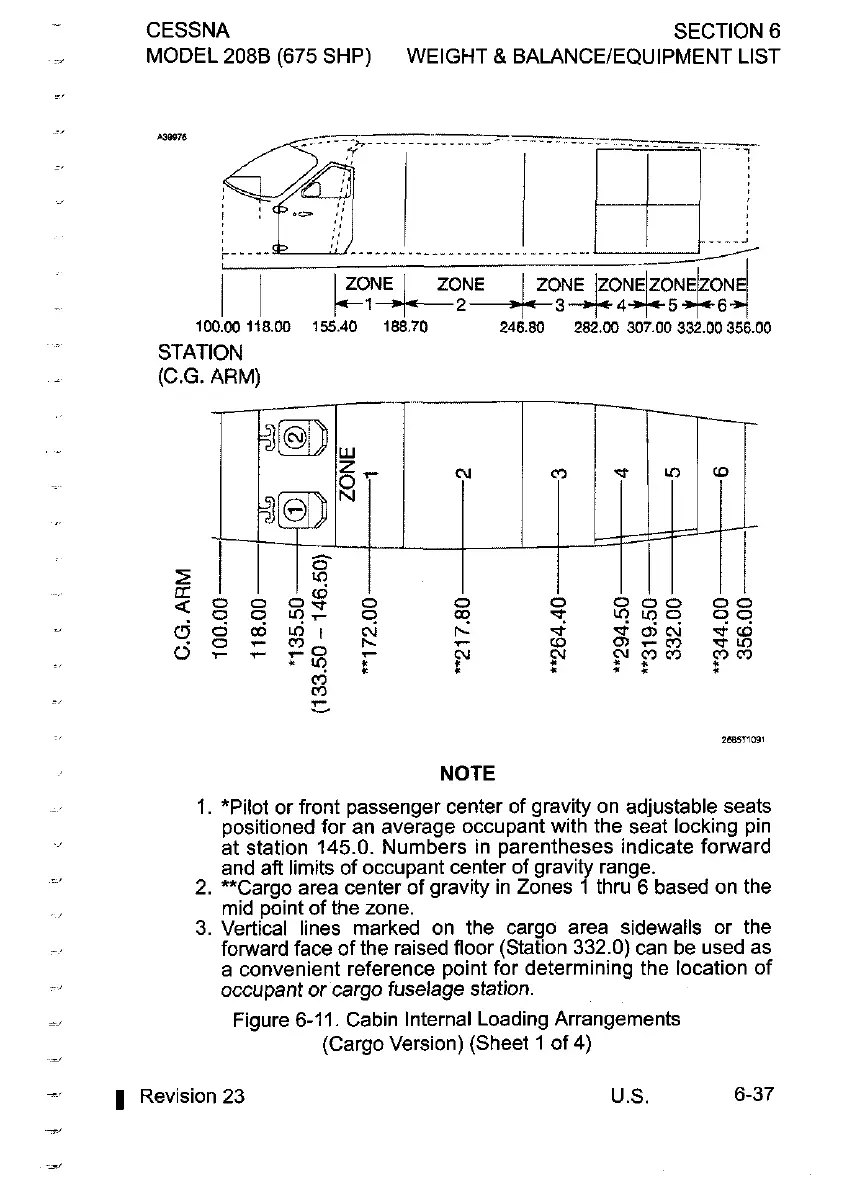

Figure 6-11. Cabin Internal Loading Arrangements
(Cargo Version) (Sheet 1 of 4)
-
1
Revision 23
-,
-9
U.S. 6-37
