SECTION 6 CESSNA
WEIGHT
&
BALANCEIEQUIPMENT LIST MODEL
2080
(675 SHP)
-17
100.00
118.00
155.40
188.70
246.80
282.00 307.00 332.00 356.00
STATION
(C.G. ARM)
NOTE
1. 'Pilot or front passenger center of gravity on adjustable seats positioned
for an average occupant with the seat locking pin at station 145.0.
Numbers in parentheses indicate forward and aft limits of occupant
center of gravity range.
2. "Cargo area center of gravity in Zones 1 thru
6
based on the mid point
of the zone.
3.
The forward face of the raised floor (Station 332.0) can be used as a
convenient reference point for determining the location of occupant or
cargo fuselage stations.
4. When a cargo barrier is installed, two-place Commuter seats 4 and 5 or
individual Commuter or Utility seats
3
and 4 must be removed. Mission
requirements will dictate if any aft passenger seating is to remain
installed.

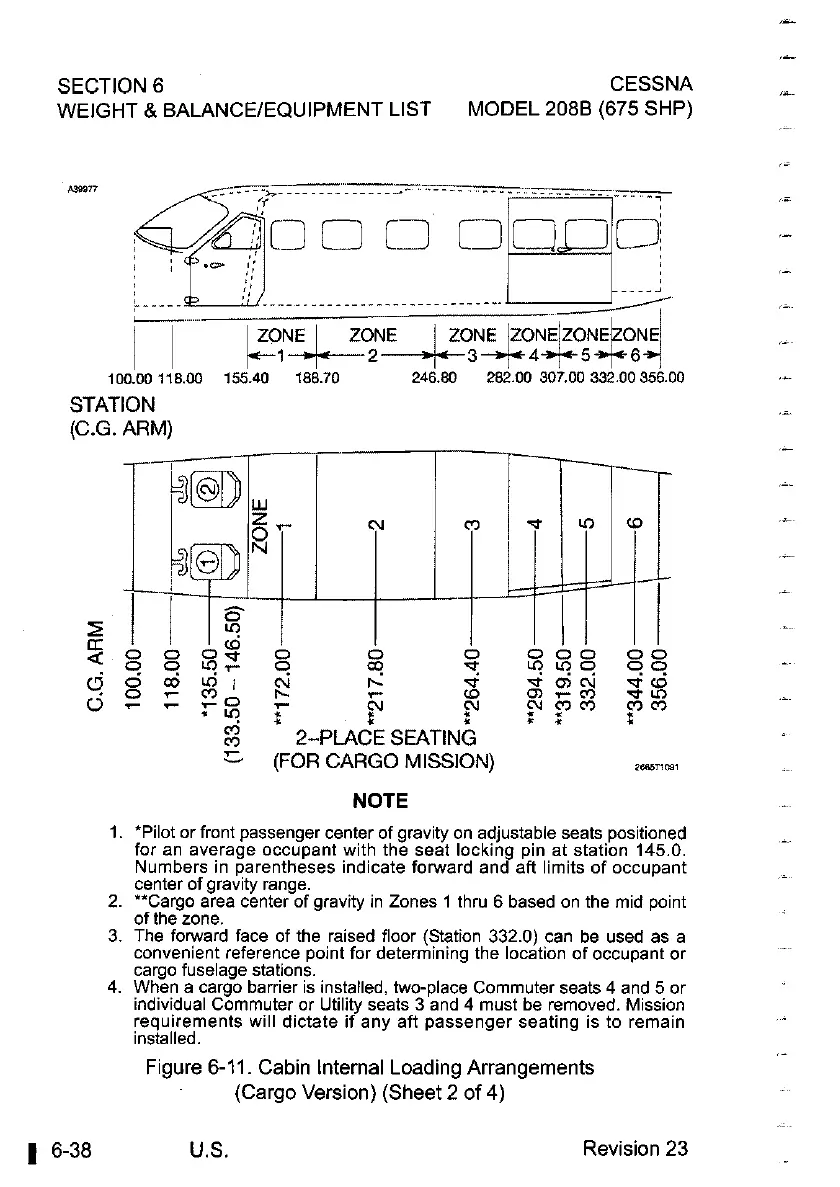

Figure 6-11. Cabin Internal Loading Arrangements
(Cargo Version) (Sheet
2
of
4)
1
6-38 U.S. Revision 23
