CESSN A SECTION 6
MODEL
2088 (675 SHP) WEIGHT 8 BALANCEIEQUIPMENT LIST

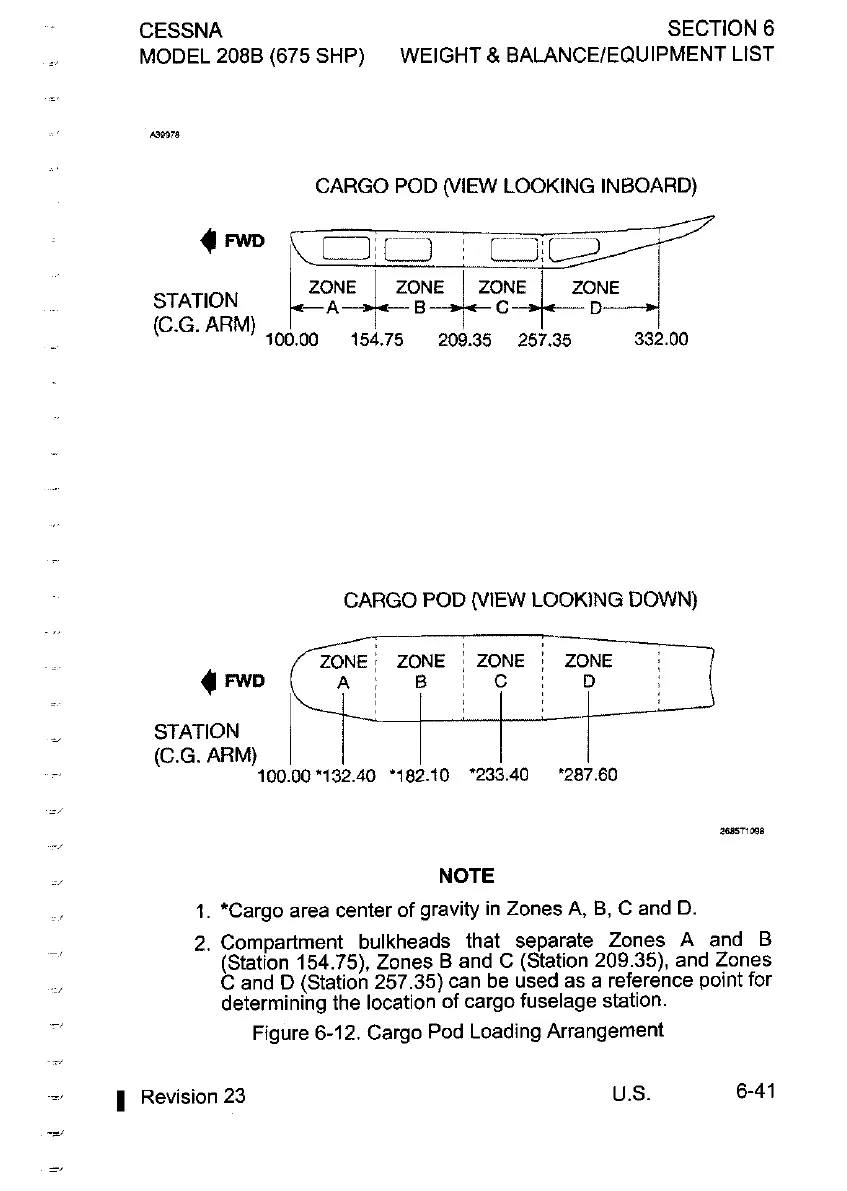

CARGO POD (VIEW LOOKING INBOARD)
STATION
p,"q,"v;b ZONE 4
(C.G' ARM) 100.00 154.75 209.35 257.35 332.00
CARGO POD (VIEW LOOKlNG DOWN)
~,
' FWD
STATION
..
(C.G. ARM)
100.00 '132.40 '162.10 "233.40 "287.60
NOTE
:,
1. *Cargo area center of gravity in Zones A, B, C and D.
-,
2. Compartment bulkheads that separate Zones A and B
(Station
154.75), Zones B and C (Station 209.35), and Zones
.%,
C and D (Station 257.35) can be used as a reference point for
determining the location of cargo fuselage station.
-,
Figure 6-12. Cargo Pod Loading Arrangement
