SECTION 8 CESSNA
HANDLING, SERVICE, AND
MAINTENANCEMODEL 2088 (675 SHP)
(NOTE
11
A
(NOTE
1)
hl8Yi>ms
SHADED AREAS INDICATE ESSENTIAL AREAS TO BE DEICED.
NOTE
1.
Give special attention to the gaps between the flight controls.
All snow, ice and slush must be removed from these gaps.
2. Remove snow, ice and slush from
pitot tubes by hand only.
DIRECT SPRAY AVOIDANCE AREAS:
ENGINE INLETS AND EXHAUST, BRAKES, PITOT-STATIC
TUBES. WINDSHIELDS. CABIN WINDOWS, AND STALL

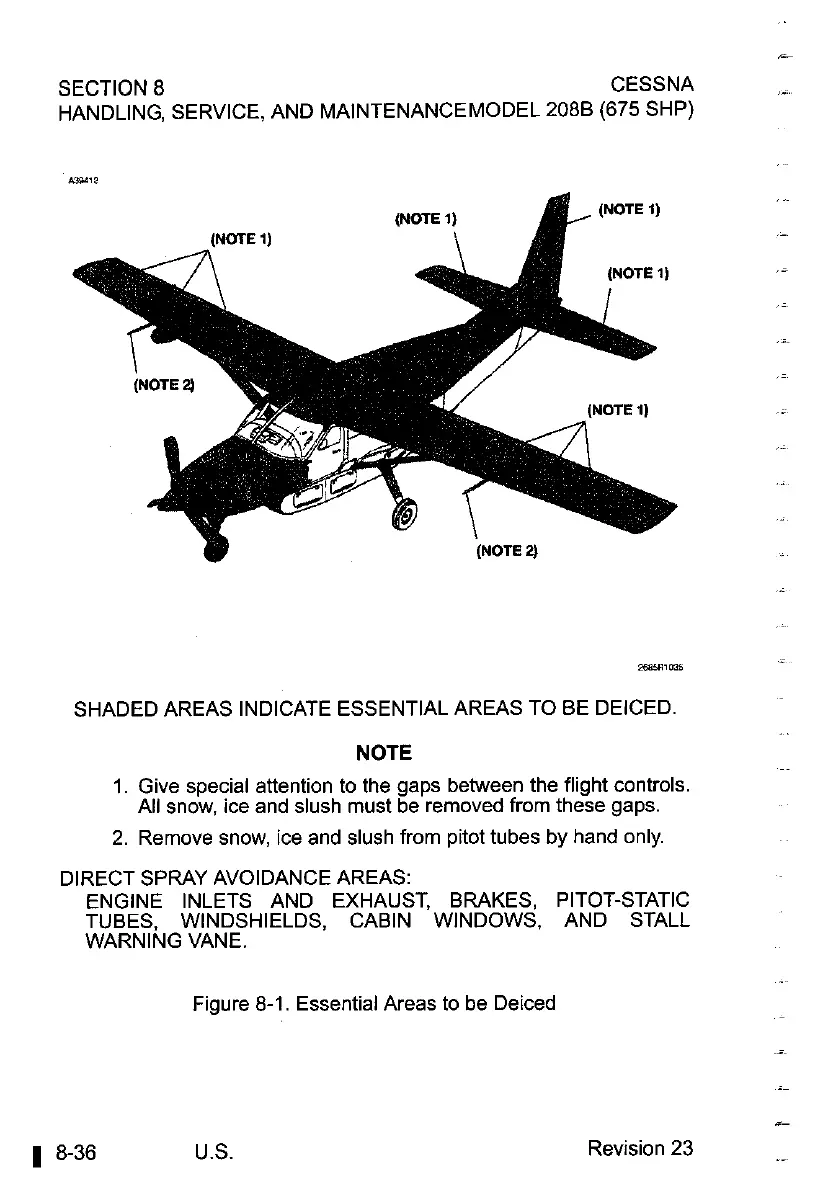

Figure
8-1. Essential Areas to be Deiced
1
8-36 U.S.
Revision 23
