CESSNA SECTION 8
MODEL
2088
(675
SHP)HANDLING, SERVICE, AND MAINTENANCE
SHADED AREAS INDICATE ESSENTIAL AREAS WHERE ANTI-ICE
FLUID IS APPLIED.
NOTE
Anti-ice fluid should be applied at low pressure to form a
thin film on surfaces. Fluid should just cover airplane
without runoff.
DIRECT SPRAY AVOIDANCE AREAS:
PITOT-STATIC TUBES, WINDSHIELDS, CABIN WINDOWS, AND
STALL WARNING VANE.

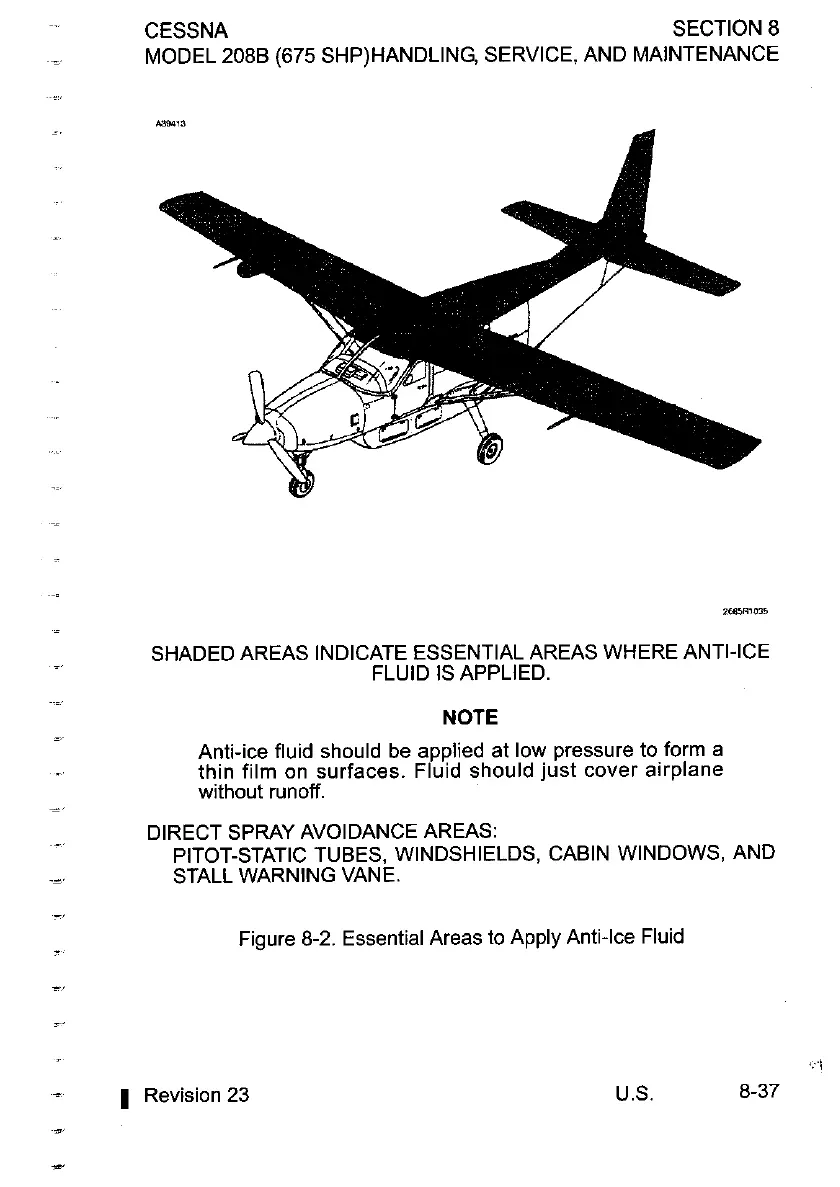

Figure
8-2. Essential Areas to Apply Anti-Ice Fluid
-
1
Revision 23
=
,.
!
U.S.
8-37
