ASXPRESS PLUS Rapid Sample Introduction System Operator’s Manual
Chapter 4: Preparing an ASX-260 or ASX-520 Autosampler
35

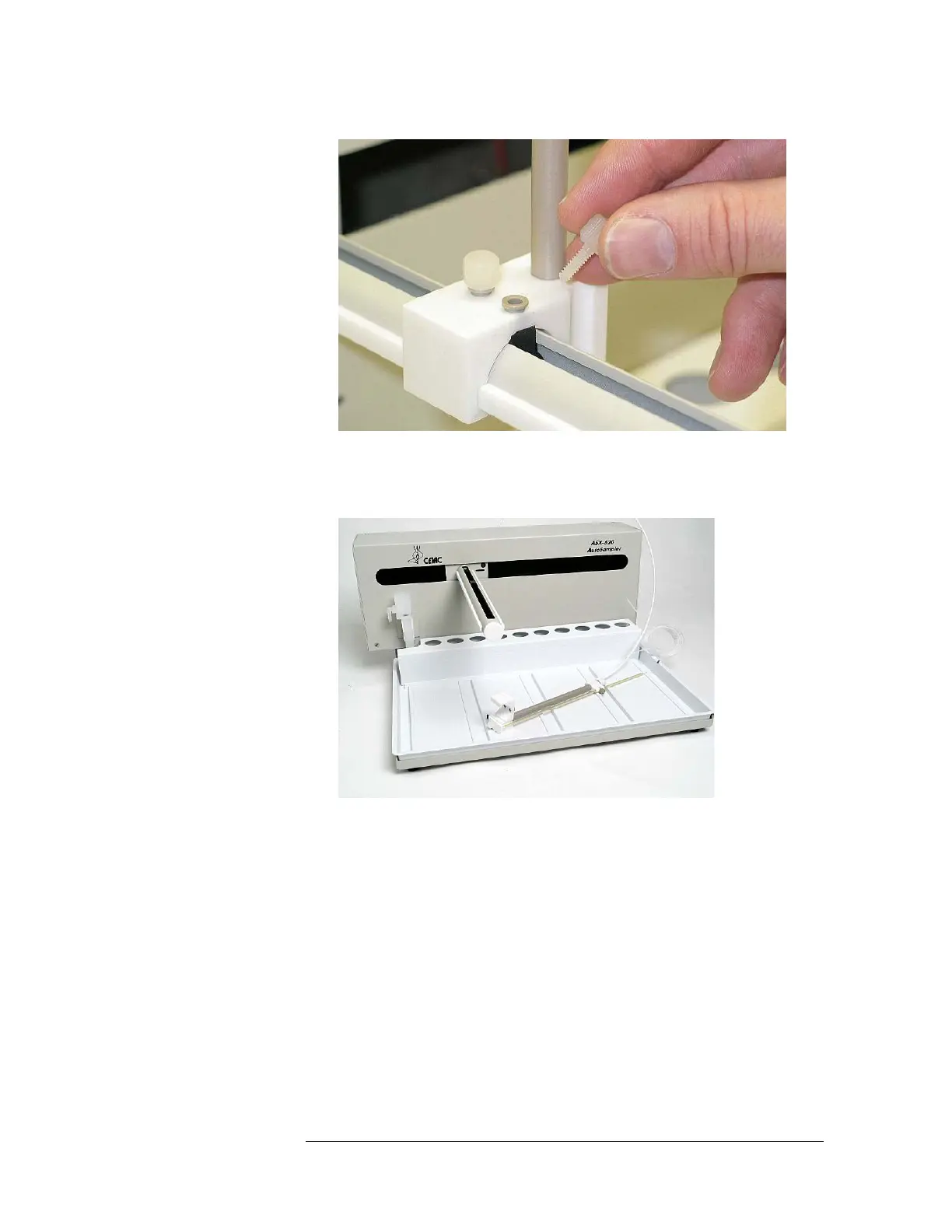

Figure 4-11 Y-Axis Home Block with Kynar Thumbscrews
3 Remove the entire Z-drive assembly from the Y-arm by pulling the Z-drive
assembly forward and off of the autosampler arm as shown (Figure 4-12).
Figure 4-12 Z-Drive Removed from Arm Assembly. (Photo shows
standard ASX-520 tray with integral standards rack.)
4 Once the Z-drive assembly is removed, remove the rinse station (Figure 4-13).
Turn the rinse station ¼ turn counter-clockwise while pulling it upward. Also,
the tubing located at the bottom of rinse station will have to be disconnected
from the pump at the rear of the autosampler.
