7 Thread the rinse intake tubing and the drain tubing under the autosampler.

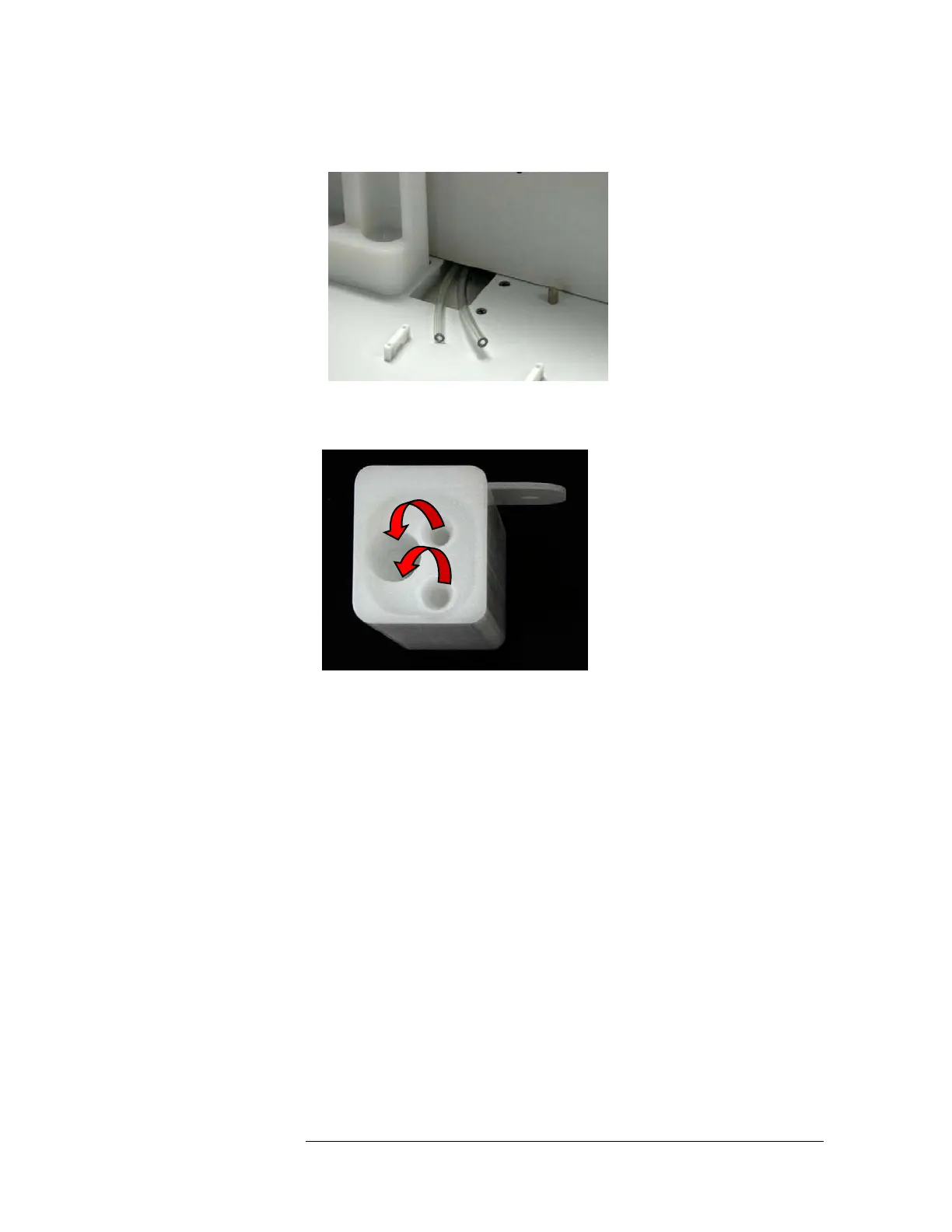

Figure 5-5 Rinse Station Tubing
8 Connect the rinse intake tubing to the “rinse in” fitting of the rinse station.
Figure 5-6 Rinse Solution Flow
As seen from above, rinse solution flows into the rinse station through the
two holes for the stirrer and probe, then out through the single drain hole.
9 Connect the drain tubing to the “rinse out” fitting of the rinse station.
10 Connect the drain tube from the rinse station to the recycled rinse solution
container or to a suitable waste container. Make sure that the end of the drain
tube does not become submerged below the waste liquid level, as that
condition will impede proper drainage. The drain tubing may be cut to
accommodate your specific position/arrangement.
11 Gently push the rinse station into place onto the rinse station holder block
(mounted on the autosampler front cover).
12 Replace the screw to secure the rinse station.
