CG Emotron VFX Series User Manual

168 CG Drives & Automation, 01-5326-01r5

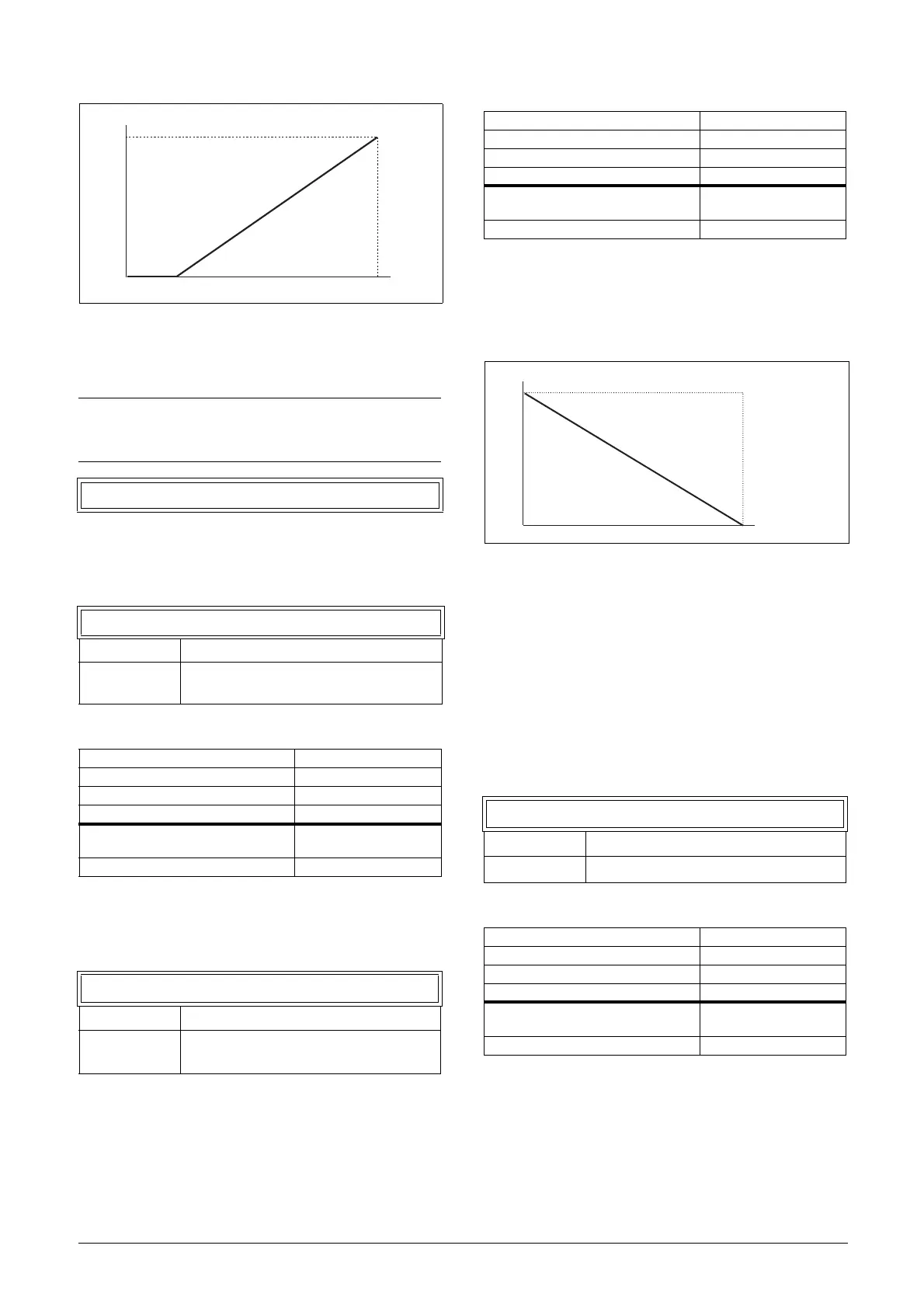

Fig. 128 2–10 V/4–20 mA (Live Zero)
AnIn1 Advanced [513]
AnIn1 Min [5131]
Parameter to set the minimum value of the external
reference signal. Only visible if [512] = User mA/V.
Communication information
AnIn1 Max [5132]
Parameter to set the maximum value of the external
reference signal. Only visible if [512] = User mA/V.
Communication information
Special function: Inverted reference signal
If the AnIn minimum value is higher than the AnIn
maximum value, the input will act as an inverted reference
input, see Fig. 129.
Fig. 129 Inverted reference
AnIn1 Bipol [5133]
This menu is automatically displayed if AnIn1 Setup is set to
User Bipol mA or User Bipol V. The window will
automatically show mA or V range according to selected
function. The range is set by changing the positive
maximum value; the negative value is automatically adapted
accordingly. Only visible if [512] = User Bipol mA/V. The
inputs RunR and RunL input need to be active, and
“Rotation [219]”, must be set to “R+L”, to operate the
bipolar function on the analogue input.
Communication information
NOTE: The different menus will automatically be set
to either “mA” or “V”, based on the selection in AnIn 1
Setup [512].
513 AnIn1 Advan
5131 AnIn1 Min
Default: 0 V/4.00 mA
Range:
0.00–20.00 mA
0–10.00 V
Modbus Instance no/DeviceNet no: 43203
Profibus slot/index 169/107
EtherCAT and CANopen index (hex) 4c83
Profinet IO index 19587
Fieldbus format
Long, 1=0.01 mA,
0.01 V
Modbus format EInt
5132 AnIn1 Max
Default: 10.00 V/20.00 mA
Range:
0.00–20.00 mA
0–10.00 V
0
0mA2
100 %
n
4mA
10 V2 V
2–10 V
Ref
4–20 mA
Modbus Instance no/DeviceNet no: 43204
Profibus slot/index 169/108
EtherCAT and CANopen index (hex) 4c84
Profinet IO index 19588
Fieldbus format
Long, 1=0.01 mA,
0.01 V
Modbus format EInt
5133 AnIn1 Bipol
Default: 10.00 V/20.00 mA
Range: 0.0–20.0 mA, 0.00–10.00 V
Modbus Instance no/DeviceNet no: 43205
Profibus slot/index 169/109
EtherCAT and CANopen index (hex) 4c85
Profinet IO index 19589
Fieldbus format
Long, 1=0.01 mA,
0.01 V
Modbus format EInt
010V
100 %
n
(NG_06-F25)
Invert
Ref
AnIn Min >
AnIn Max
