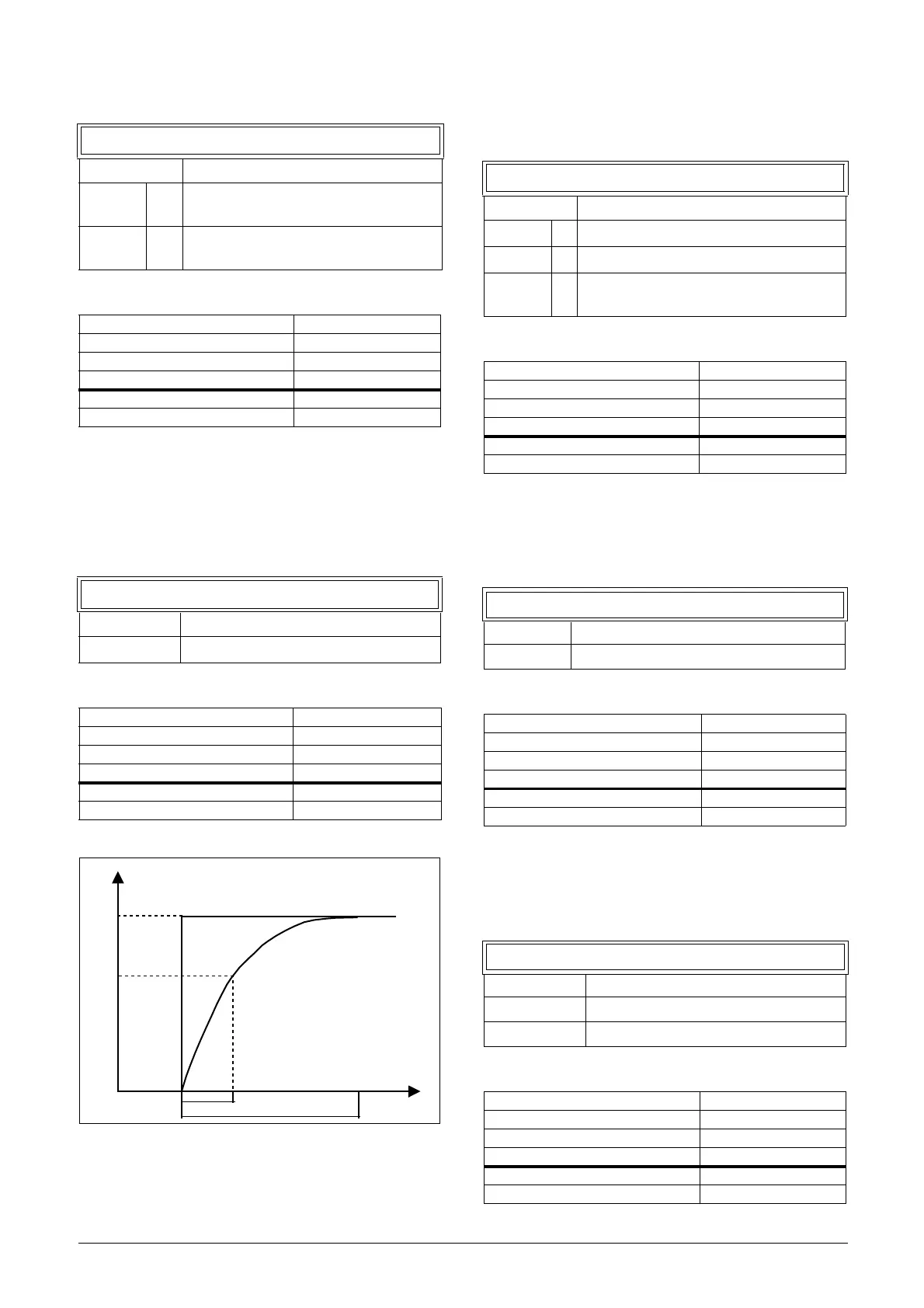

CG Emotron VFX Series User Manual

170 CG Drives & Automation, 01-5326-01r5
AnIn1 Operation [5138]
Communication information
AnIn1 Filter [5139]
If the input signal is unstable (e.g. fluctuation reference
value), the filter can be used to stabilize the signal. A change
of the input signal will reach 63% on AnIn1 within the set
AnIn1 Filter time. After 5 times the set time, AnIn1 will
have reached 100% of the input change. See Fig. 130.
Communication information
Fig. 130
AnIn1 Enable [513A]
Parameter for enable/disable analogue input selection via
digital inputs (DigIn set to function AnIn Select).
Communication information
AnIn2 Function [514]
Parameter for setting the function of Analogue Input 2.
Same function as “AnIn1 Fc [511]”.
Communication information
AnIn2 Setup [515]
Parameter for setting the function of Analogue Input 2.
Same functions as “AnIn1 Setup [512]”.
Communication information
5138 AnIn1 Oper
Default: Add+
Add+ 0
Analogue signal is added to selected
function in menu
[511].
Sub- 1
Analogue signal is subtracted from
selected function in menu
[511].
Modbus Instance no/DeviceNet no: 43208
Profibus slot/index 169/112
EtherCAT and CANopen index (hex) 4c88
Profinet IO index 19592
Fieldbus format UInt
Modbus format UInt
5139 AnIn1 Filt
Default: 0.1 s
Range: 0.001 – 10.0 s
Modbus Instance no/DeviceNet no: 43209
Profibus slot/index 169/113
EtherCAT and CANopen index (hex) 4c89
Profinet IO index 19593
Fieldbus format Long, 1=0.001 s
Modbus format EInt
AnIn change
100%
63%
Original input signal
Filtered AnIn signal
T
5 X T
513A AnIn1 Enabl
Default: On
On 0 AnIn1 is always active
!DigIn 1 AnIn1 is only active if the digital input is low.
DigIn 2
AnIn1 is only active if the digital input is
high.
Modbus Instance no/DeviceNet no: 43210
Profibus slot/index 169/114
EtherCAT and CANopen index (hex) 4c8a
Profinet IO index 19594
Fieldbus format UInt
Modbus format UInt
514 AnIn2 Fc
Default: Off
Selection: Same as in menu [511]
Modbus Instance no/DeviceNet no: 43211
Profibus slot/index 169/115
EtherCAT and CANopen index (hex) 4c8b
Profinet IO index 19595
Fieldbus format UInt
Modbus format UInt
515 AnIn2 Setup
Default: 4 – 20 mA
Dependent on Setting of switch S2
Selection: Same as in menu
[512].
Modbus Instance no/DeviceNet no: 43212
Profibus slot/index 169/116
EtherCAT and CANopen index (hex) 4c8c
Profinet IO index 19596
Fieldbus format UInt
Modbus format UInt
