Using Internet Setup

Chapter 5: Configuring the Internet Connection 119

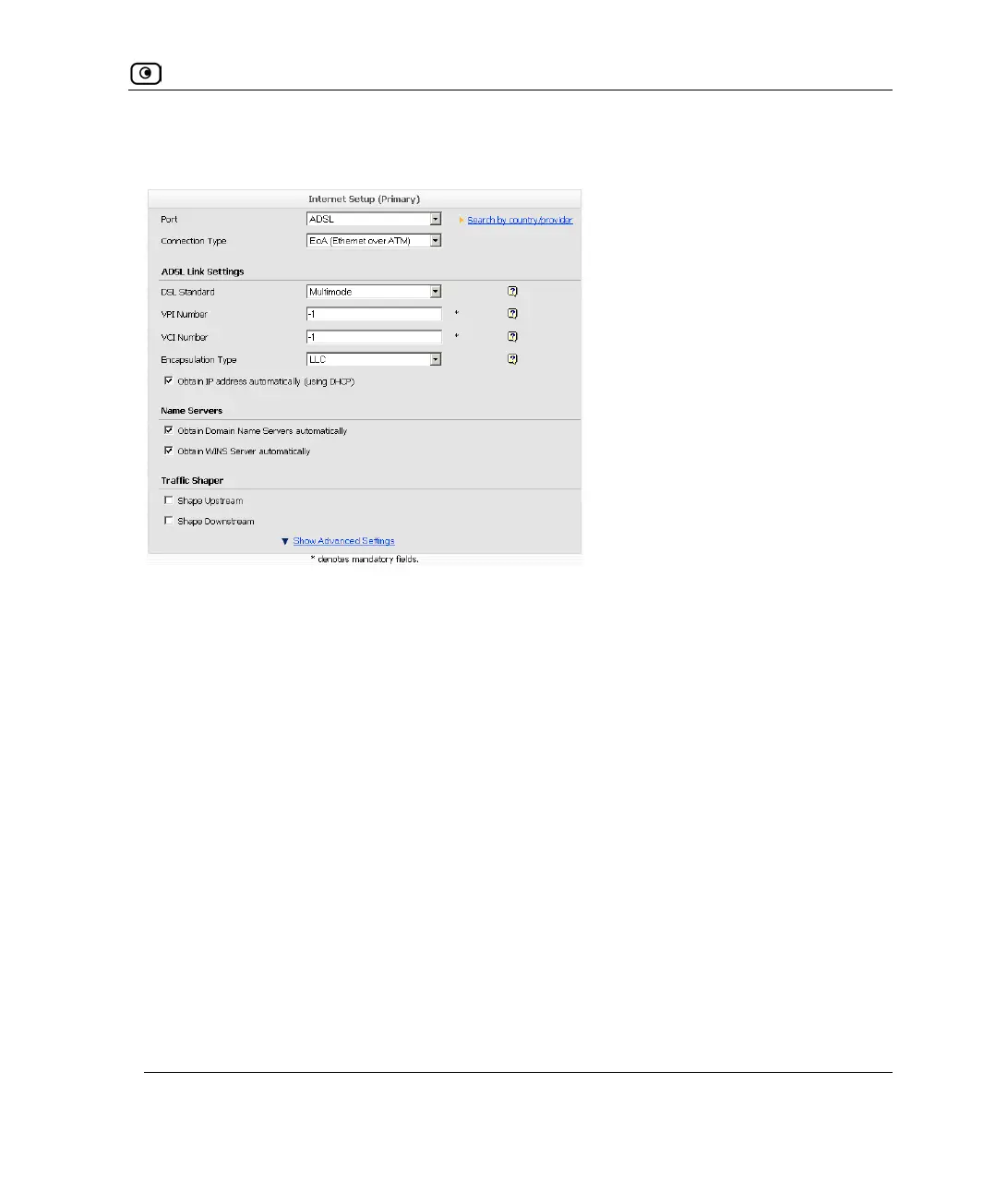

Using an EoA (Ethernet over ATM) Connection

1. Complete the fields using the relevant information in Internet Setup Fields on

page

136.
