UTM-1 Edge X and UTM-1 Edge W Installation
Chapter 3: Installing and Setting Up UTM-1 73
5. Connect the power supply to the appliance's power socket, labeled PWR.
6. Plug the power supply into the wall electrical outlet.
Warning: The UTM-1 appliance power supply is compatible with either 100, 120 or
230 VAC input power. Verify that the wall outlet voltage is compatible with the
voltage specified on your power supply. Failure to observe this warning may result
in injuries or damage to equipment.

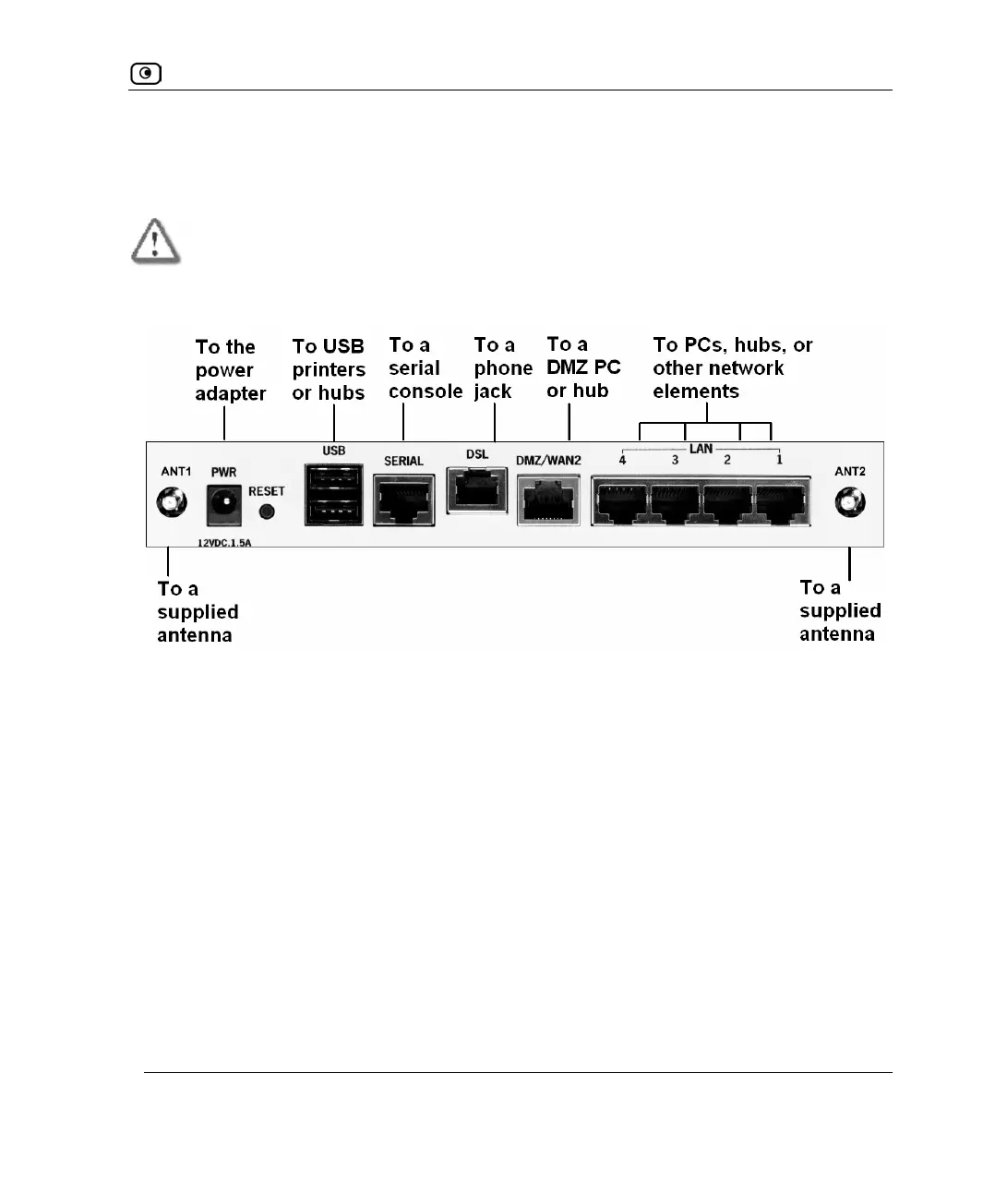

Figure 16: Typical Connection Diagram
