UTM-1 Edge X and UTM-1 Edge W Installation

74 Check Point UTM-1 Edge User Guide

Mounting the UTM-1 Edge X Industrial Appliance on a

DIN Rail

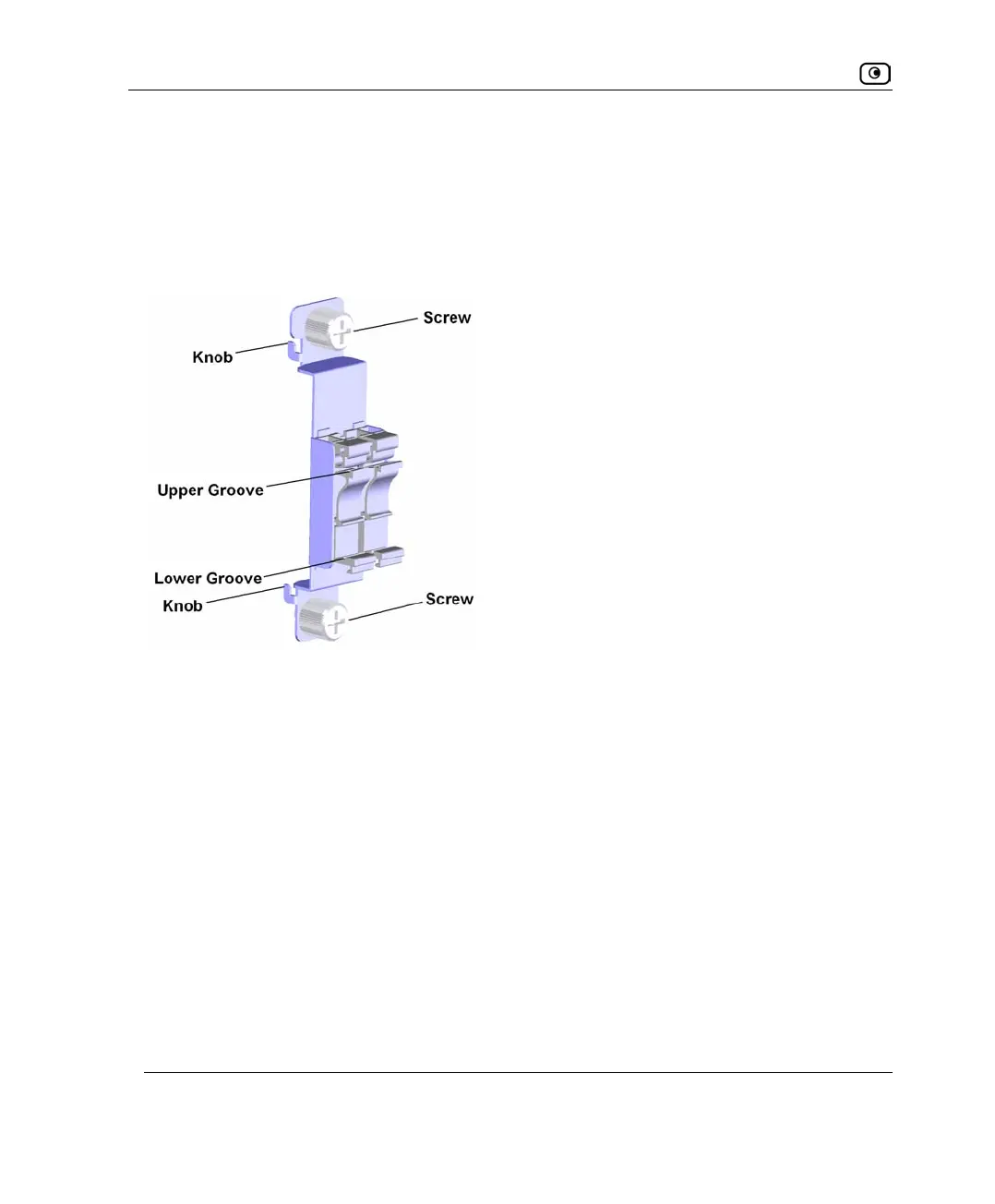

For your convenience, the UTM-1 Edge X Industrial appliance includes a DIN rail

mounting bracket, which enables you to mount your appliance in any DIN Rail cabinet or

enclosure:
