Setting Up the UTM-1 Appliance

Chapter 3: Installing and Setting Up UTM-1 85

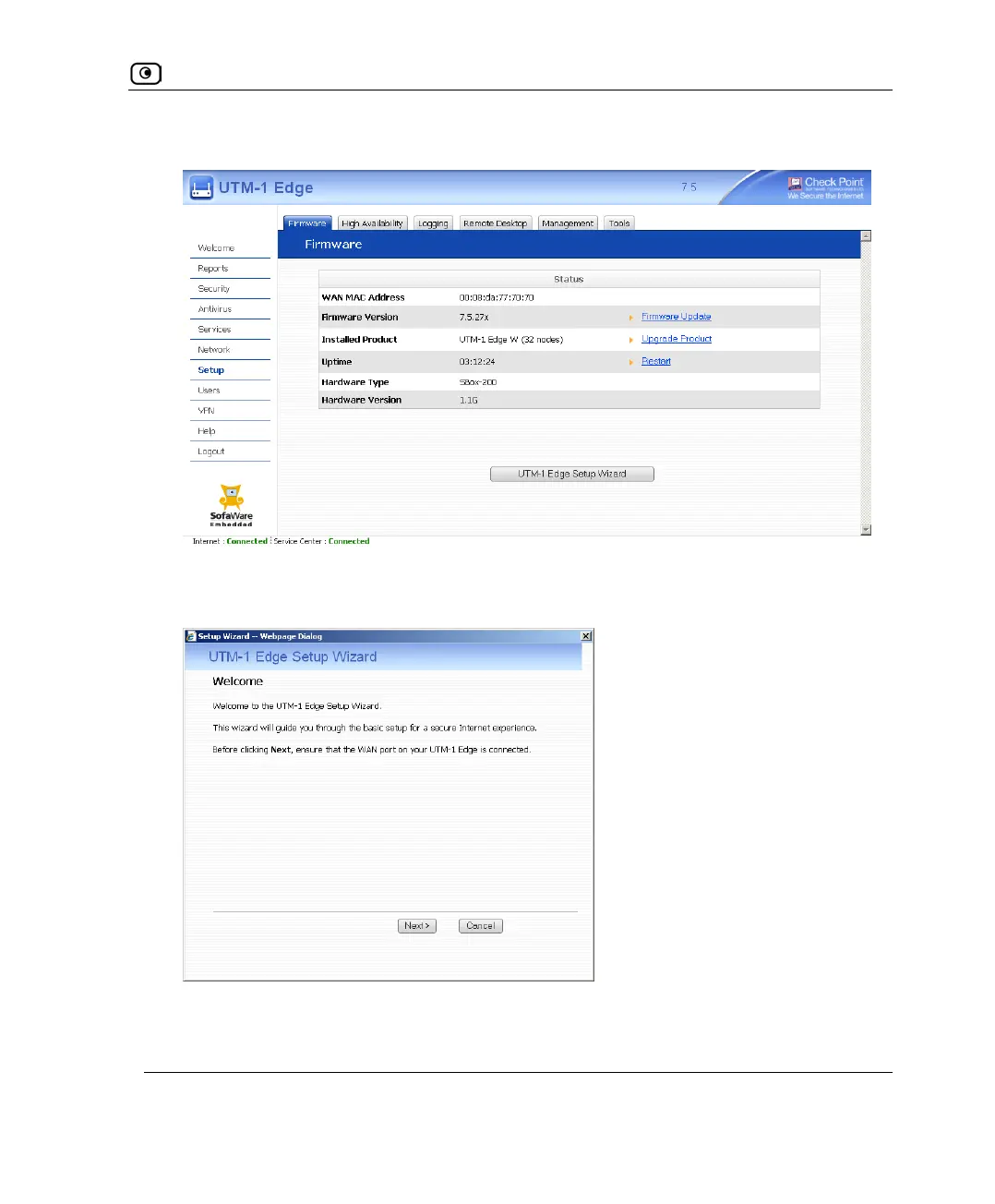

The Firmware page appears.

2. Click UTM-1 Setup Wizard.

The UTM-1 Setup Wizard opens with the Welcome page displayed.
