Gateway and Gateway 4 Manual v1.2

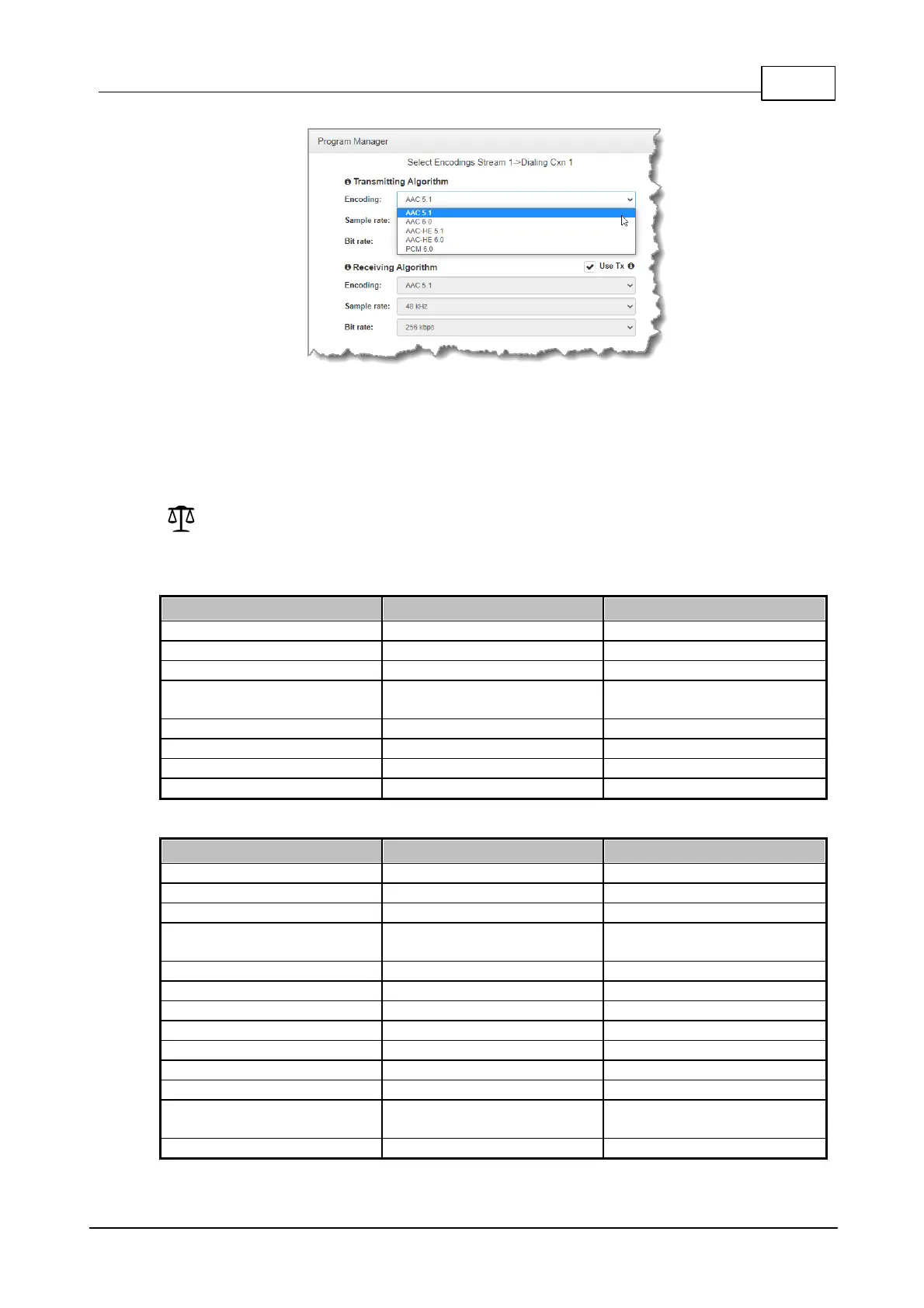

The following table displays the mapping of channels to encoders and decoders for 5.1 channel and
7.1 channel surround sound streams. This is based on the audio channel group order defined in the
SMPTE ST 2110-30 standard. Please note: 6.0 and 8.0 channel streams feature undefined channel
grouping. All channels are the same quality and are not bandwidth limited. The selection of 7.1 or
8.0, and 5.1 or 6.0, for streaming is determined when selecting the encoding algorithm when
creating a program.
Codec Model Note: Only 4.0 channel phase-locked audio is supported in the Gateway 4.
5.1 Channel Mapping for 5.1 and 7.1 Phase-Locked Surround Streams
Encoder/Decoder
1 x 5.1 Channel Program
1 x 7.1 Channel Program
Encoder 1 / Decoder 1
Left
Left
Encoder 2 / Decoder 2
Right
Right
Encoder 3 / Decoder 3
Center
Center
Encoder 4 / Decoder 4
LFE (bandwidth limited
channel)
LFE (bandwidth limited
channel)
Encoder 5 / Decoder 5
Surround Left
Side Surround Left
Encoder 6 / Decoder 6
Surround Right
Side Surround Right
Encoder 7 / Decoder 7
Rear Surround Left
Encoder 8 / Decoder 8
Rear Surround Right
Encoder/Decoder
2 x 5.1 Channel Program
2 x 7.1 Channel Program
Encoder 1 / Decoder 1
Left
Left
Encoder 2 / Decoder 2
Right
Right
Encoder 3 / Decoder 3
Center
Center
Encoder 4 / Decoder 4
LFE (bandwidth limited
channel)
LFE (bandwidth limited
channel)
Encoder 5 / Decoder 5
Surround Left
Side Surround Left
Encoder 6 / Decoder 6
Surround Right
Side Surround Right
Encoder 7 / Decoder 7
Rear Surround Left
Encoder 8 / Decoder 8
Rear Surround Right
Encoder 9 / Decoder 9
Left
Left
Encoder 10 / Decoder 10
Right
Right
Encoder 11 / Decoder 11
Center
Center
Encoder 12 / Decoder 12
LFE (bandwidth limited
channel)
LFE (bandwidth limited
channel)
Encoder 13 / Decoder13
Surround Left
Side Surround Left
