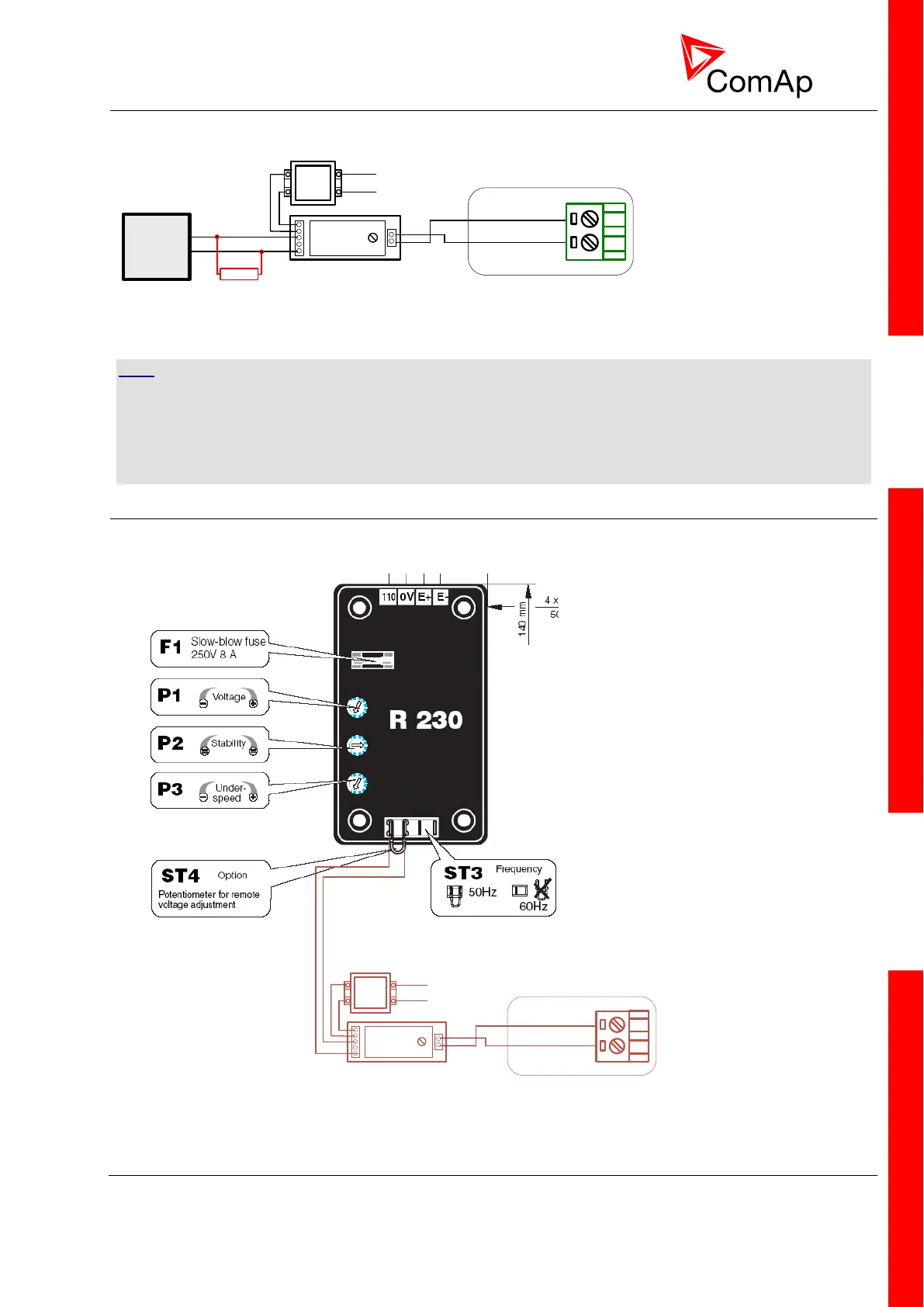

LeRoy-Somer: R 230
18VAC
From
generator
OUT1
OUT2
iG-
AVRi
230/400VAC
0VAC
AVRI
AO GND
J4
500
AVRI
AO GND
IG-
AVRi
TRANS
Remove Link J4 and replace instead of R500
Primary voltage setting with resistors connected: 230 V
AVRi trim to minimum counter
clockwise.
Volt/PF ctrl:
AVR Bias = 50%
HINT:
Disconnect one wire (OUT 1), set voltage on running Generator to U = nom.
Measure Voltage over Resistor
Depending on Value, increase AVRi potentiometer to get Range.
Set exact Value with Bias Voltage//PF regulation (gain = 0)
Stop gen-set and connect when equal Voltage and polarity is achieved.
Set again in regulation loop on demand
LeRoy-Somer: R 230
from generator
iG-
AVRi
230/ 400VAC
0 VAC
AVRI
AO GND
OUT1
OUT2
AVRI
AO GND
IG-
AVRi
TRANS
Module R726 is not required.
AVRi trim to minimum counter clockwise.
Volt/PF ctrl:
AVR Bias = 50%
