2.14 MSE-1482 Multiservice SONET/SDH Aggregation/ Transport
The Cyan Z-Series Multiservice SONET/SDH Element (MSE-1482) is an advanced SONET/SDH
aggregation and transport module, with integrated OTN transport supporting the Z-Series multi-layer
transport platforms. The MSE-1482 module provides a full 10G transport of SONET, SDH, and Ethernet
services with non-blocking STS cross-connects for aggregation and grooming (including hairpin capability)
across a wide range of SFP/XFP pluggable interfaces.
Each MSE-1482 module supports up to:
• 1 10G interface with OTN encapsulation (OTU2)
• 4 OC-48 or STM-16 interfaces
• 8 OC-3, OC-12, STM-1, or STM-4 interfaces (any combination)
• 2 Gigabit Ethernet interfaces supporting Ethernet over SONET/SDH (EoS)
The module supports STS-1/Nc level aggregation and grooming with transport for maximum operational
efficiency.
Two equipped MSE-1482 modules provide for 1+1 equipment protection. The MSE-1482 also supports
optional UPSR/SNCP ring protection and unidirectional 1+1 Line protection.

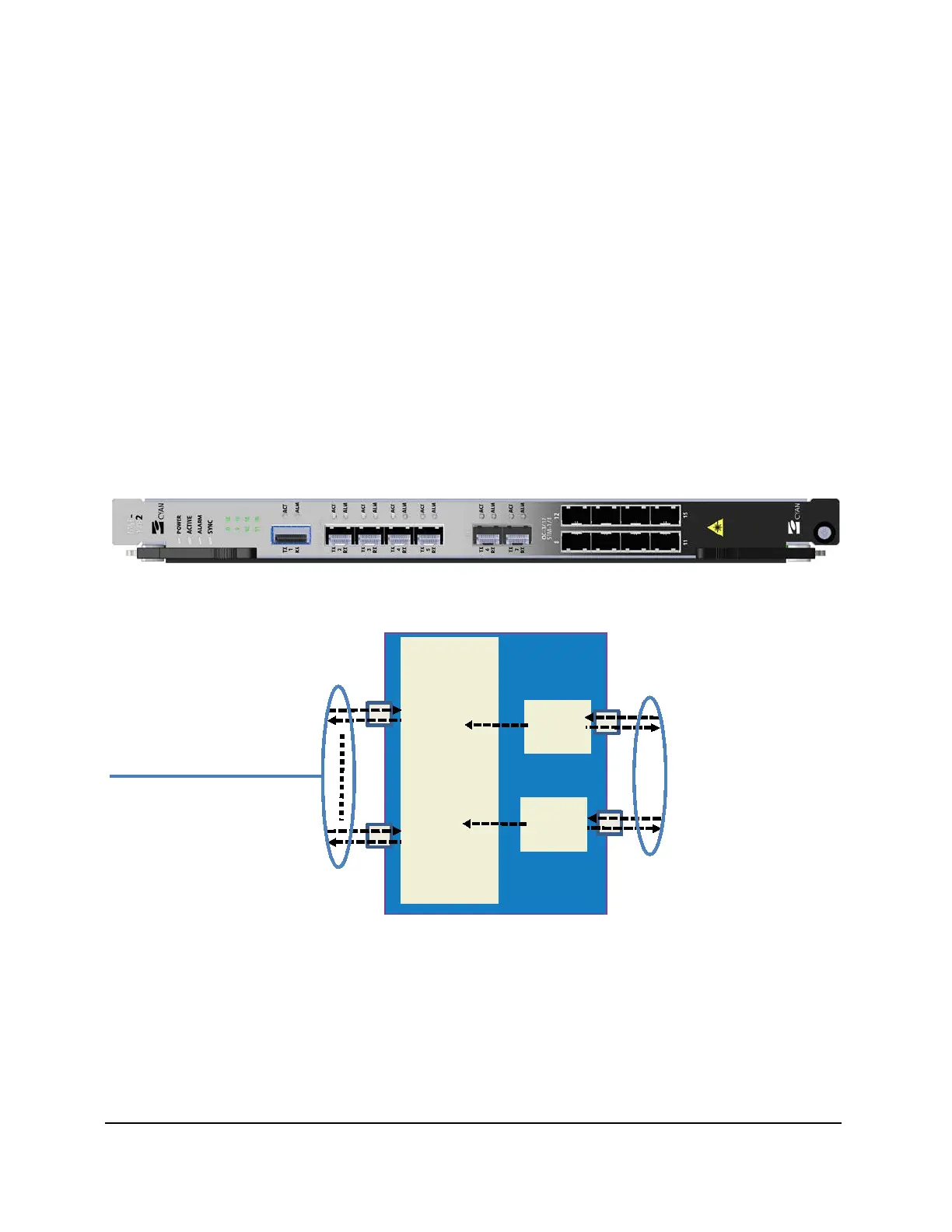

Figure 55: Cyan Z-Series MSE-1482 Module
60G
Non-Blocking
ODU0/flex/1
Cross-Connect
16 Client Interfaces (SFPs)
ODU2
Mapper
ODU2
Mapper
2 x OTU2 10G Trunk Interfaces
(XFPs)
Any Combination:
• GbE
• OC-3/12 or 48
• STM-1/4 or 16
Figure 56: MSE-1482 Trunk and Client Interfaces
The MSE-1482 module provides high capacity SONET, SDH, and EoS services transport with 10G OTU2
for enhanced performance and management in the Z-Series multi-layer transport platforms.
