Cyan Z77 - App 3: Packet (10 GbE and 1 GbE) Transport and Switching

Cyan Z-Series Engineering and Planning Guide Release 5.0
700-0023-05-00 Rev. 1 © 2013 Cyan, Inc. – All Rights Reserved. Page 159
4.3 App 3: Packet (10GbE and 1GbE) Transport and Switching
In this application, the Cyan Z22, Z33, or the Z77 shelf contains a pair of PME-412 modules or a pair of
PME-216i modules. The system provides packet aggregation and transport capabilities.
If PME modules are the only service cards in the Z33 shelf, as is the case in this application described, they
must be installed in slots 1 and 2.

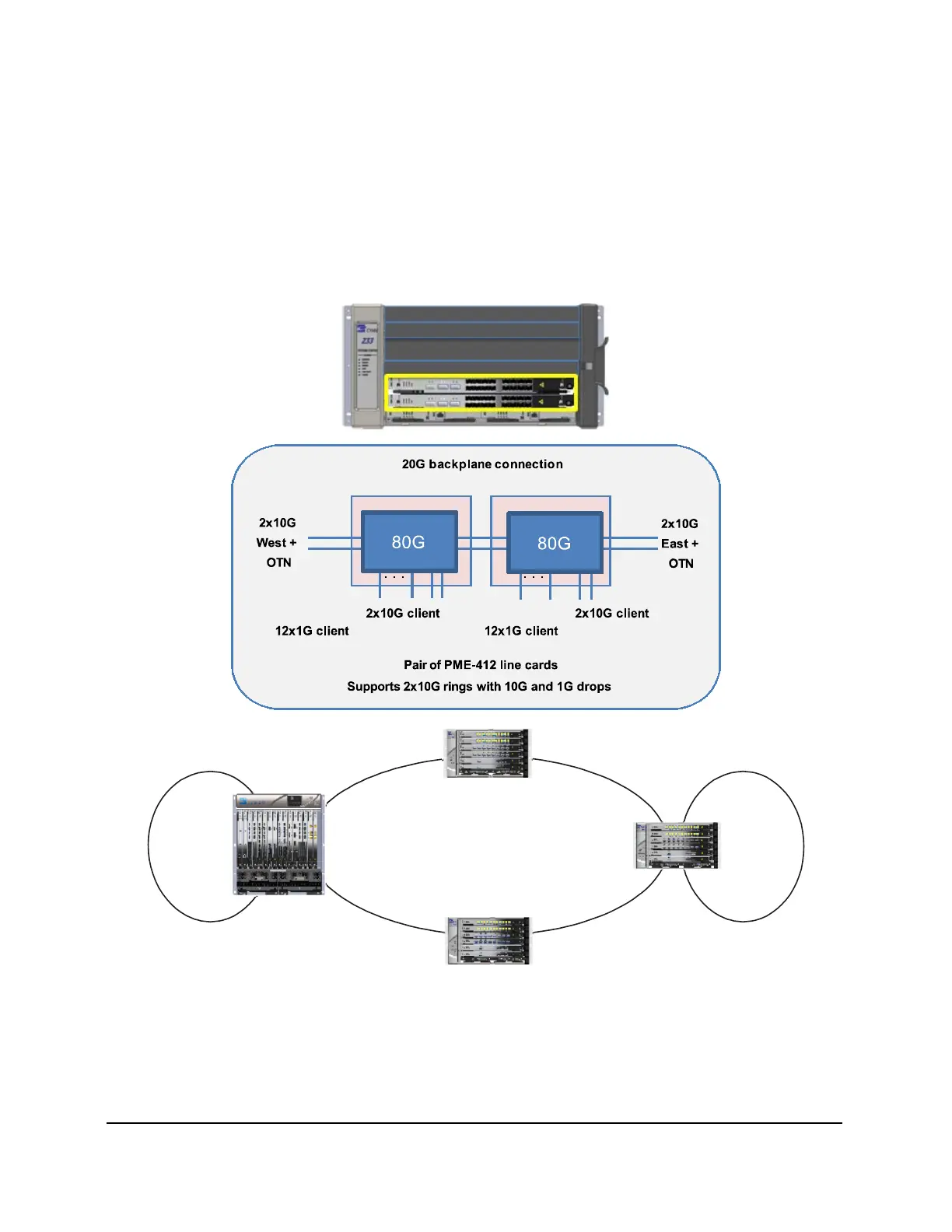

The graphic below shows a Z-Series application example with a pair of PME-412 modules with each PME
module supporting two 10 GbE trunks.
10 GbE
Z33
Z77
with PME
Z33
1 GbE, 10 GbE
Z33
10 GbE10 GbE
PME-412 card pair
Figure 81: Application with a Pair of PME Modules – Each PME Supports Two 10 GbE Trunks
