Cyan Z-Series Engineering and Planning Guide Release 5.0
Page 162 © 2013 Cyan, Inc. – All Rights Reserved. 700-0023-05-00 Rev. 1
4.4 App 4: Multiservice Lambda Transport, OEO
In this application, the Cyan Z33 shelf or the Z77 shelf contains a pair of PME-412 (or PME-216i) modules,
a pair of 2.5G-LME4 modules, and a pair of LAD modules. The system delivers up to three waves with
packet and TDM traffic. The fourth wave is available for user non-protected configurations or alien wave.
Z33
Z77
Z33
OC-48, 1 GbE,
10 GbE
Z33
3 O-E-O network
TDM +2xPacket
OTU-2 format
Link
Budget
Reach
LAD-4
LAD-4A
16 dB
24 dB
64 km
96 km
Typical configuration:
2 x LAD-4/LAD-4A
2 x PME-412 or 2 x PME-216i
2 x 2.5G-LME4
4th wave available for non-protected
configuration or alien wave

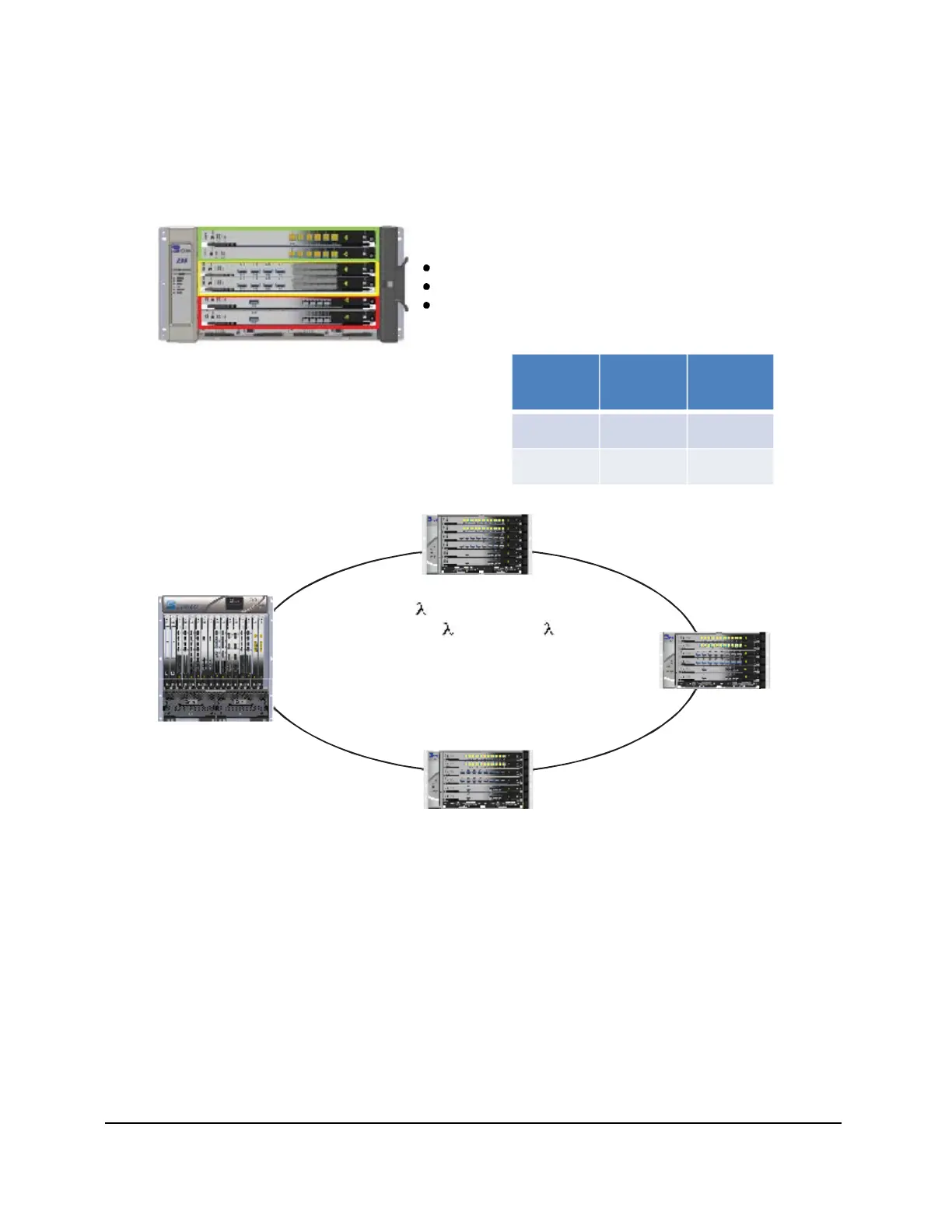

Figure 83: Multiservice Lambda Transport OEO
