Non-Collocated Planet Operate Server with Redundant Cyan Gateway Nodes
The network configuration example in the diagram below shows a non-collocated Planet Operate server
with redundant Cyan gateway nodes.

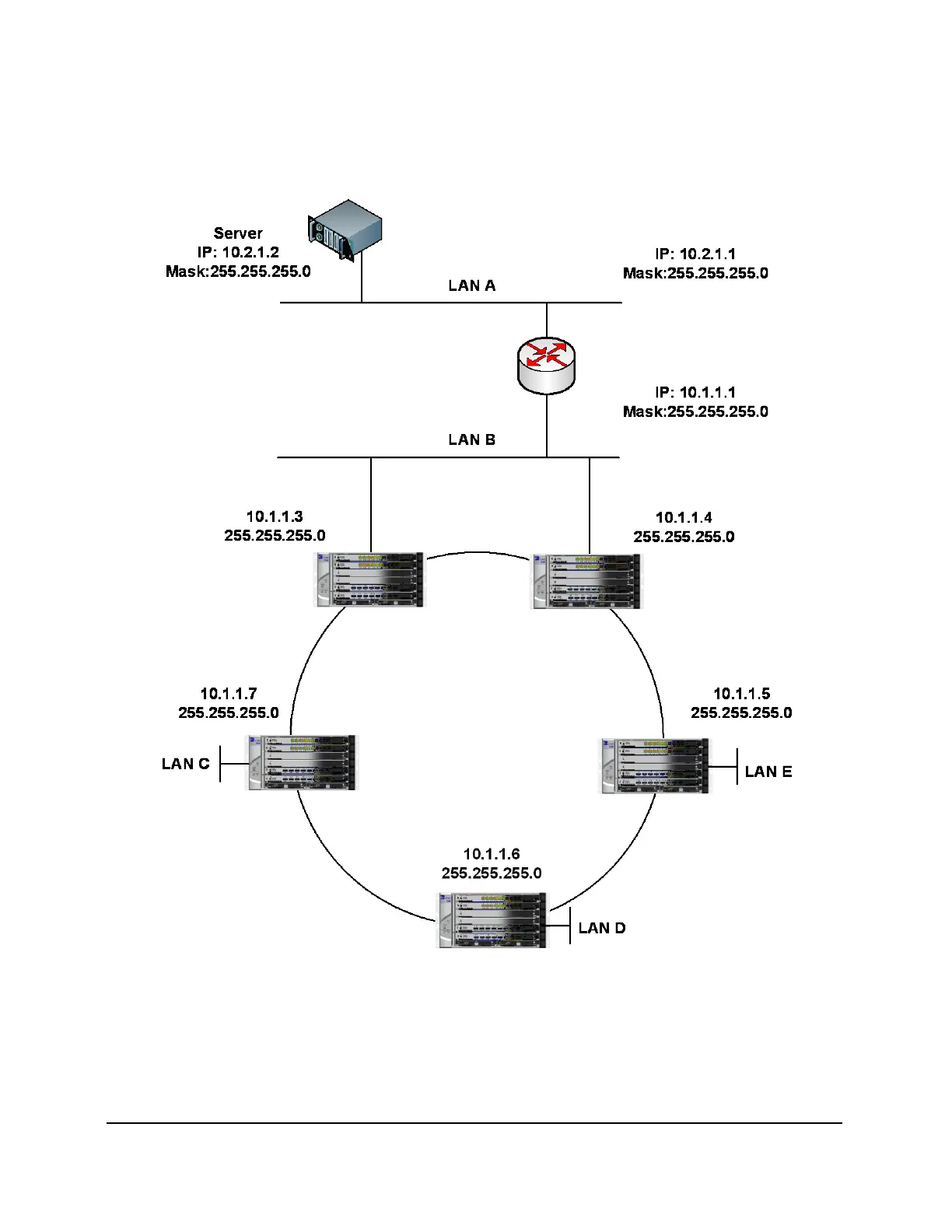

Figure 110: Non-Collocated Planet Operate Server with Redundant Cyan Gateway Nodes
Option 1 – Complete OSPF network:
• Configure the Planet Operate server to run OSPF on the LAN that connects it to the router.
• Enable OSPF on the router on the LAN that it is sharing with the Cyan gateway node.
• Enable OSPF on both of the Cyan gateway nodes.
