Cyan Z-Series Engineering and Planning Guide Release 5.0
700-0023-05-00 Rev. 1 © 2013 Cyan, Inc. – All Rights Reserved. Page 67

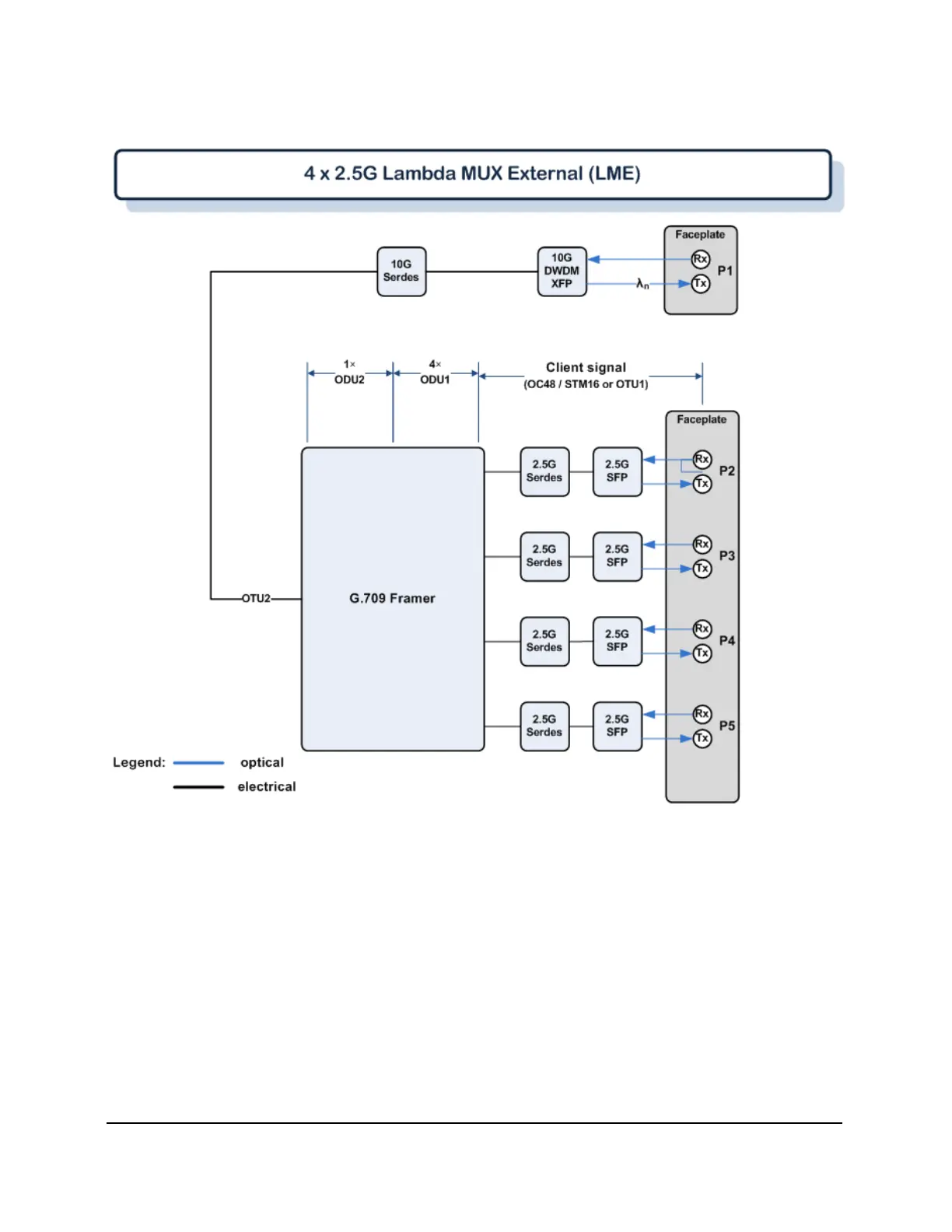

The graphic below shows the 2.5G-LME4 module block diagram.
2.3.1 System Requirements
• Cyan Z22 (-48V shelf)
• Cyan Z33
• Cyan Z77
2.3.2 Interfaces
• Client-side interfaces (SFP pluggable):
Up to 4 OC-48 or STM-16
Up to 4 OTU1
• Trunk-side interface (XFP pluggable): 1 OTU2 with G.709 digital wrapper
• G.975 Generic Forward Error Correction (GFEC)
