Collocated Planet Operate Server
In this network configuration example, the Planet Operate server shares the same LAN as the gateway Cyan
node. The example diagram shows OSPF enabled on the Planet Operate server and the Cyan gateway node
(see option #1 below).

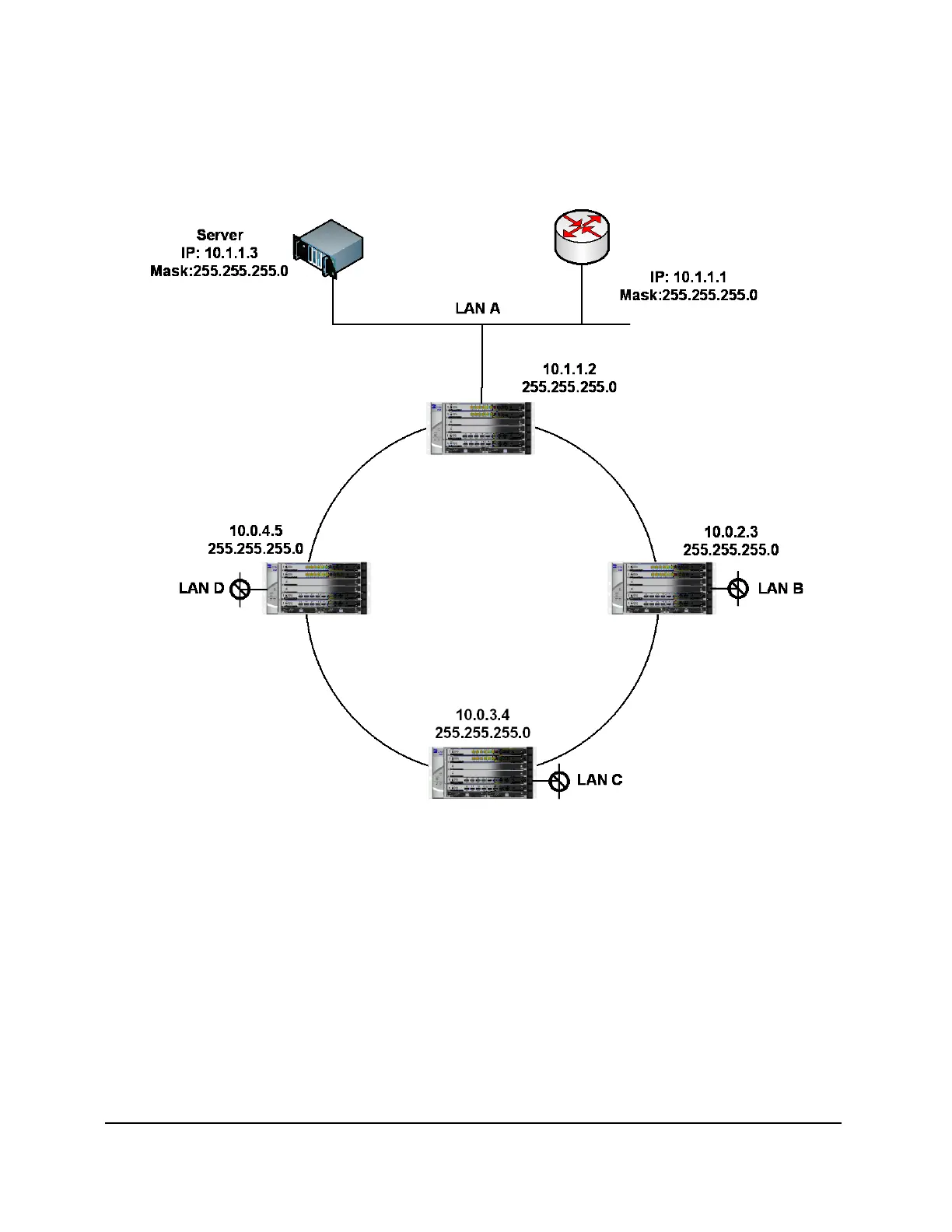

Figure 103: Collocated Planet Operate Server Sharing Same LAN as the Gateway Cyan Node
Option 1 – Complete OSPF network:
• Configure the Planet Operate server to run OSPF on the LAN that connects it to the router.
• Enable OSPF on the Cyan gateway node.
Option 2 – Complete Static routing:
• In this scenario the Planet Operate server can reach the Cyan gateway node without any additional
configuration. However, to reach the other Cyan nodes, the router must be configured with static
routes as follows:
10.0.2.0 / 255.255.255.0 / gw 10.1.1.2
10.0.3.0 / 255.255.255.0 / gw 10.1.1.2
10.0.4.0 / 255.255.255.0 / gw 10.1.1.2
• Disable OSPF on the Cyan gateway node.
