Cyan Z-Series Engineering and Planning Guide Release 5.0
Page 136 © 2013 Cyan, Inc. – All Rights Reserved. 700-0023-05-00 Rev. 1
• Maintains slot-to-slot connectivity across the backplane for Ethernet service modules and is
compatible with optical ROADM, WDM multiplexer, transponder and muxponder modules.
• Supports the TSW-10G10 packet transport module providing 10 non-blocking, line-rate OTU2 or
10GbE ports (XFP/SFP).
• Allows TSW-10G10 line cards to aggregate and groom 10G rings, freeing up PME-412 and
PME-216i resources.
• Supports the PSW-10G10 and PSW-618 packet modules.
• Supports most legacy applications supported by the Ring Closure Modules:
ODU1 Express cross-connect (OC-48/STM-16 express) between a pair of 2.5G-LME4
modules
Link aggregation using multiple ports between a pair of PME-412 modules or PME-216i
modules
A TESI Express connection using a pair of PME-412 modules or PME-216i modules
An unprotected Ethernet drop over a protected TESI using a pair of PME-412 modules or
PME-216i modules
• Supports the MSE-1482 line card in a standalone muxponder configuration.
Note: MSE-1482 line cards can be installed in a Z77 shelf supported by the XC-2800 switch fabric. The
XC-2800 switch fabric module provides supports the MSE-
1482 in a standalone muxponder configuration.
However, the XC-2800 switch fabric module does not support MSE-1482 card-to-card backplane
cross-connections or protection.

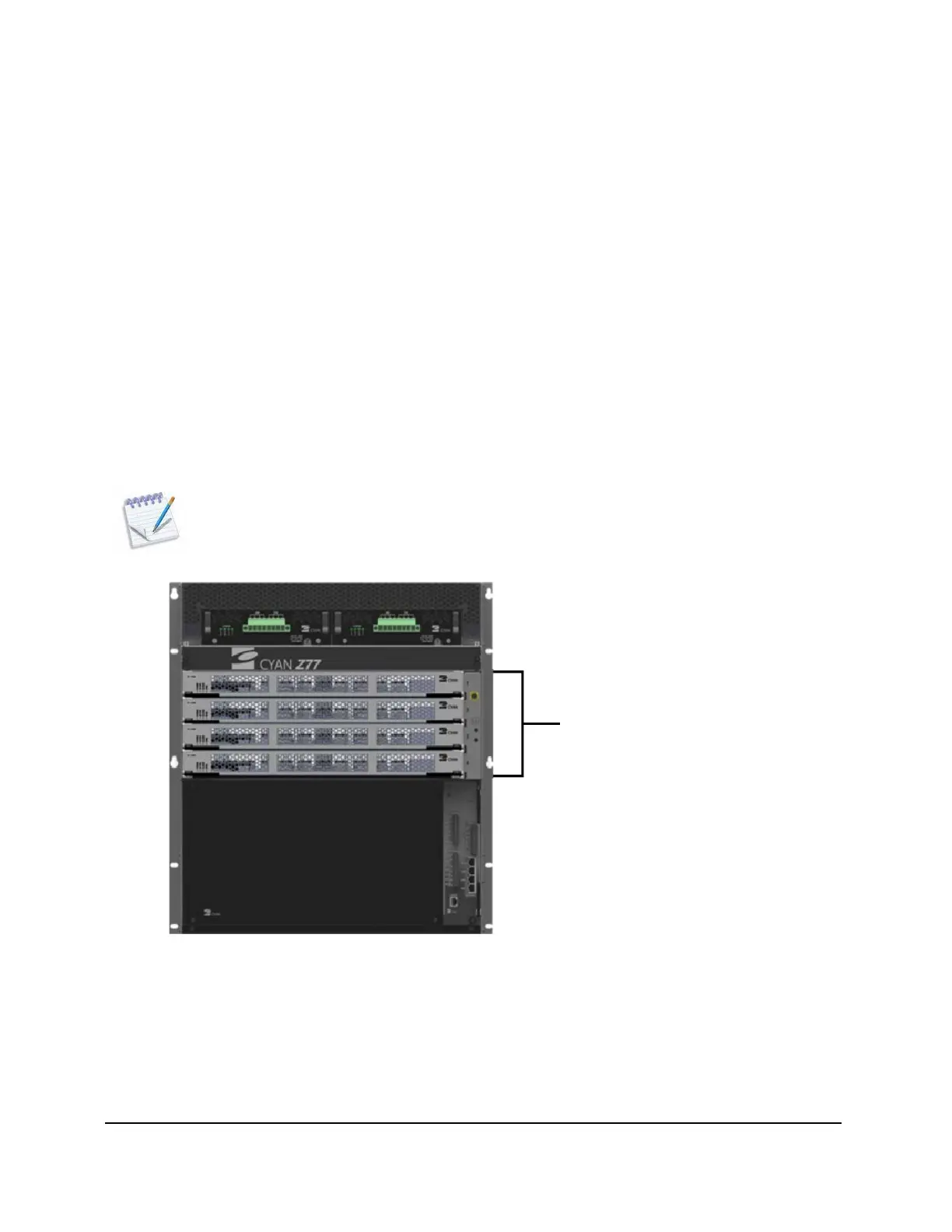

Figure 69: Z77 with XC-2800 (Rear View)
XC-2800 Switch Fabric Modules
installed in EFM slots 1 through 4
