Cyan Z-Series Engineering and Planning Guide Release 5.0
Page 190 © 2013 Cyan, Inc. – All Rights Reserved. 700-0023-05-00 Rev. 1
Non-Collocated Planet Operate Server with Redundant Cyan Gateway Nodes
The following diagram shows an example of a network configuration with two Cyan gateway nodes.

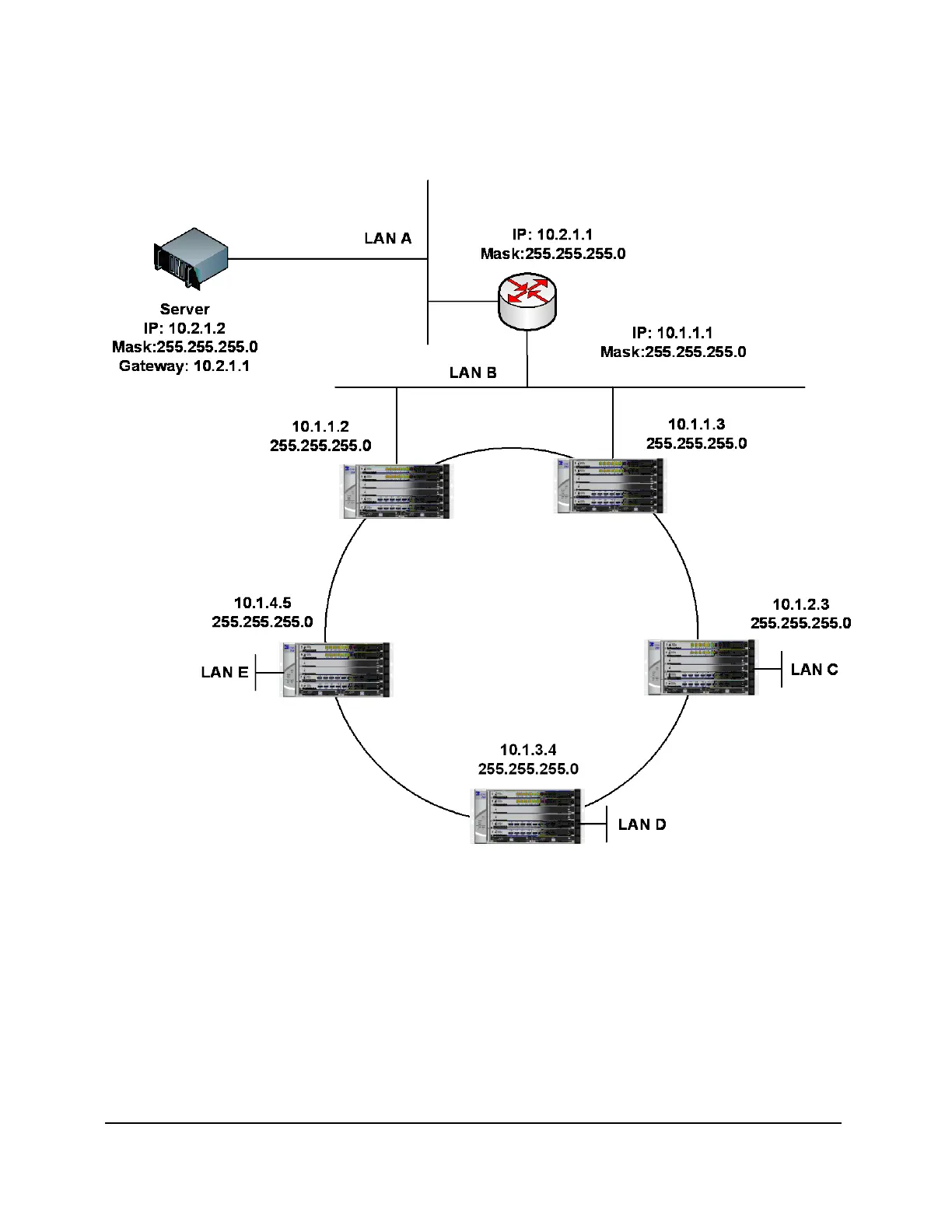

Figure 106: Non-Collocated Planet Operate Server with Redundant Cyan Gateway Nodes
Option 1 – Complete OSPF network:
• Configure the Planet Operate server to run OSPF on the LAN that connects it to the router (LAN A
in the diagram above).
• Enable OSPF on the router on the LANs that it is sharing with the Planet Operate server and the
Cyan gateway node (LAN A and LAN B in the diagram above).
• Enable OSPF on both of the Cyan gateway nodes (10.1.1.2 and 10.1.1.3 in the diagram above).
