Network configuration examples with a single physical LAN are provided below for a collocated Planet
Operate server and a non-collocated Planet Operate server.
Collocated Planet Operate Server
In this network configuration example, the Planet Operate server shares the same LAN as the Cyan nodes.

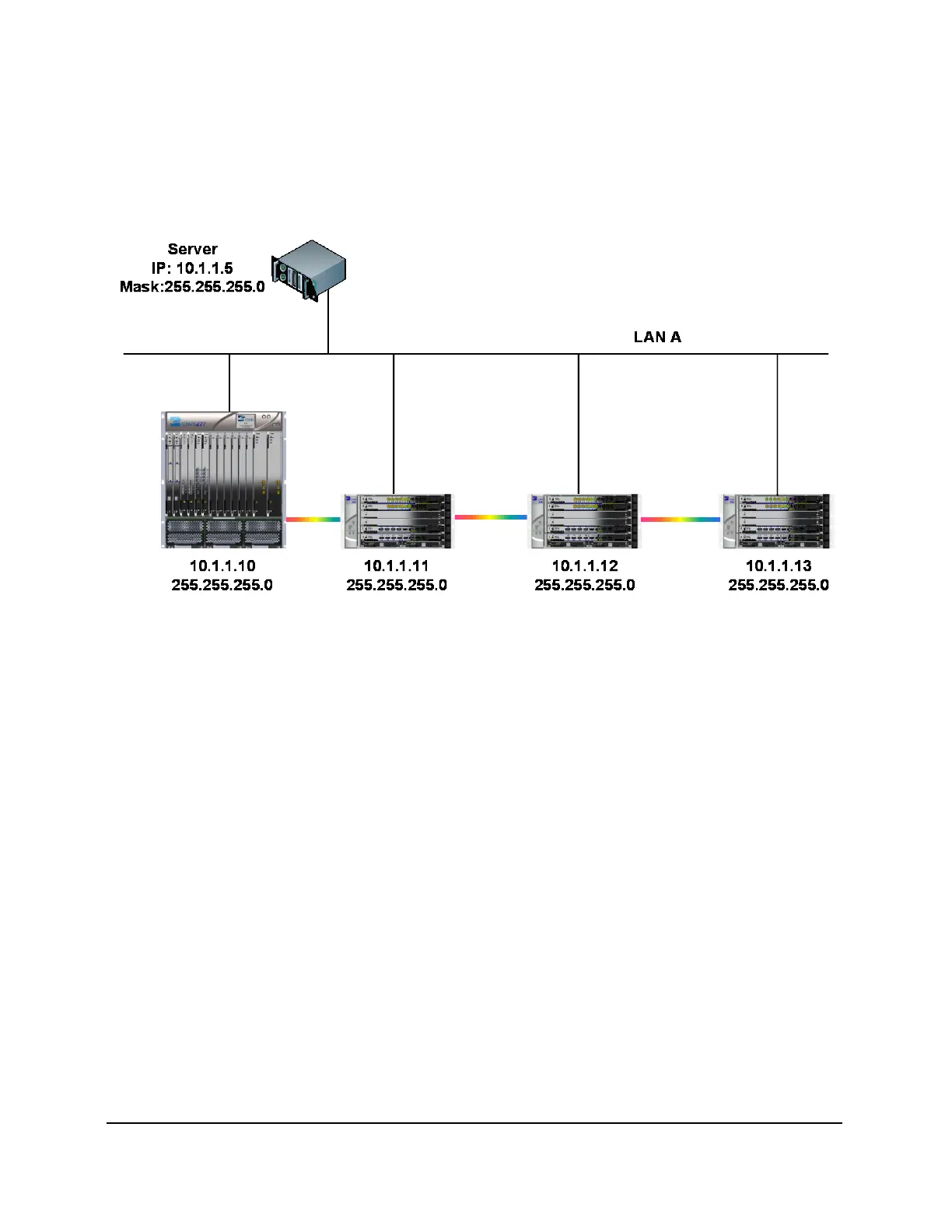

Figure 100: Collocated Planet Operate Server Example
In this network configuration, the IP sub-network assigned to the Cyan nodes must be the same sub-network
as the Planet Operate server. You do not need to configure any additional parameters for the Planet Operate
server to communicate with the Cyan nodes.
