6.2 Multiple Physical LANs
In this network configuration example, all of the Cyan nodes are separated from a LAN perspective and
there is more than one physical LAN.

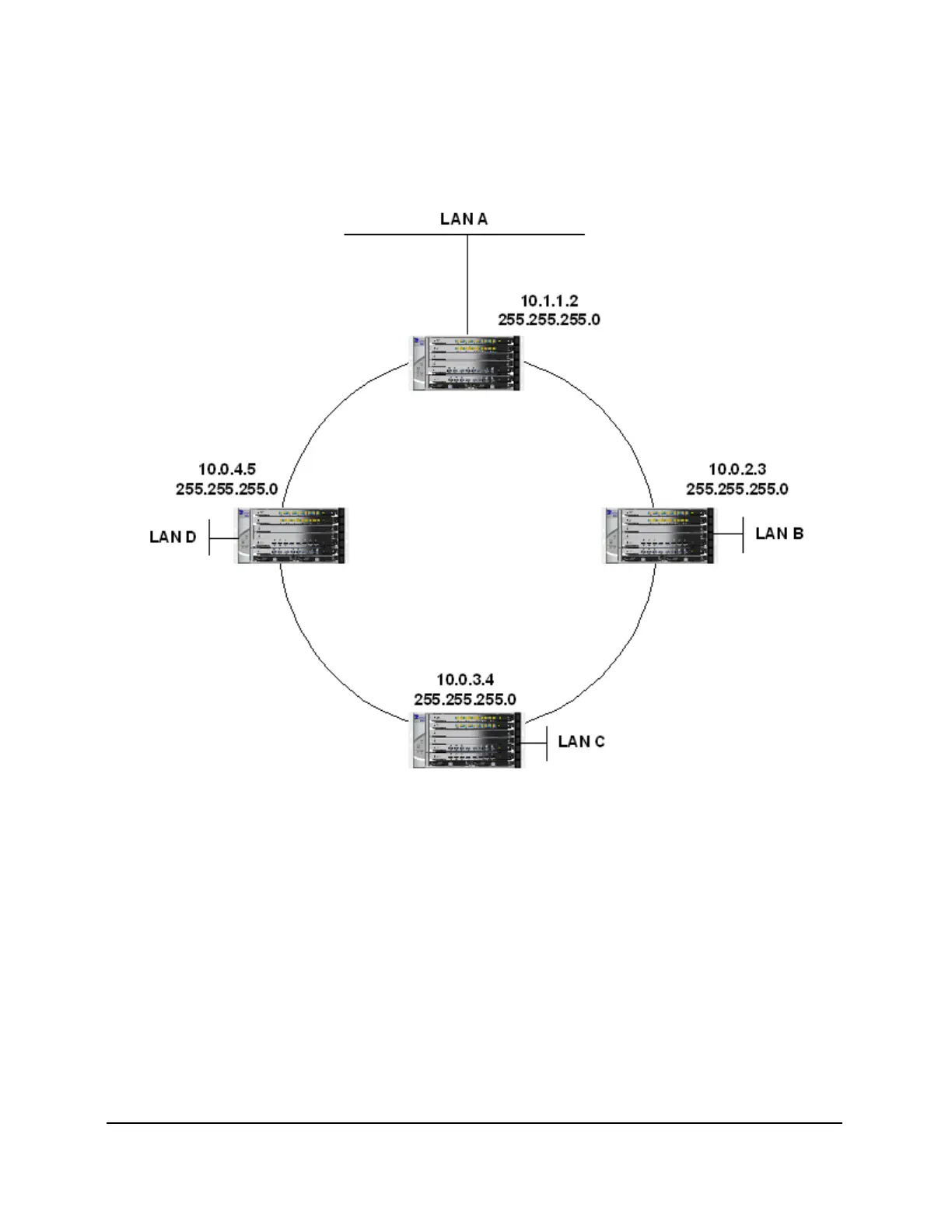

Figure 102: Multiple Physical LANs Example
In this type of network configuration, Cyan recommends that each LAN segment be given a unique IP
sub-network. Each Cyan node obtains its IP address from a separate block of the IP sub-network.
Network configuration examples with multiple physical LANs are provided below for a collocated Planet
Operate server and a non-collocated Planet Operate server.
