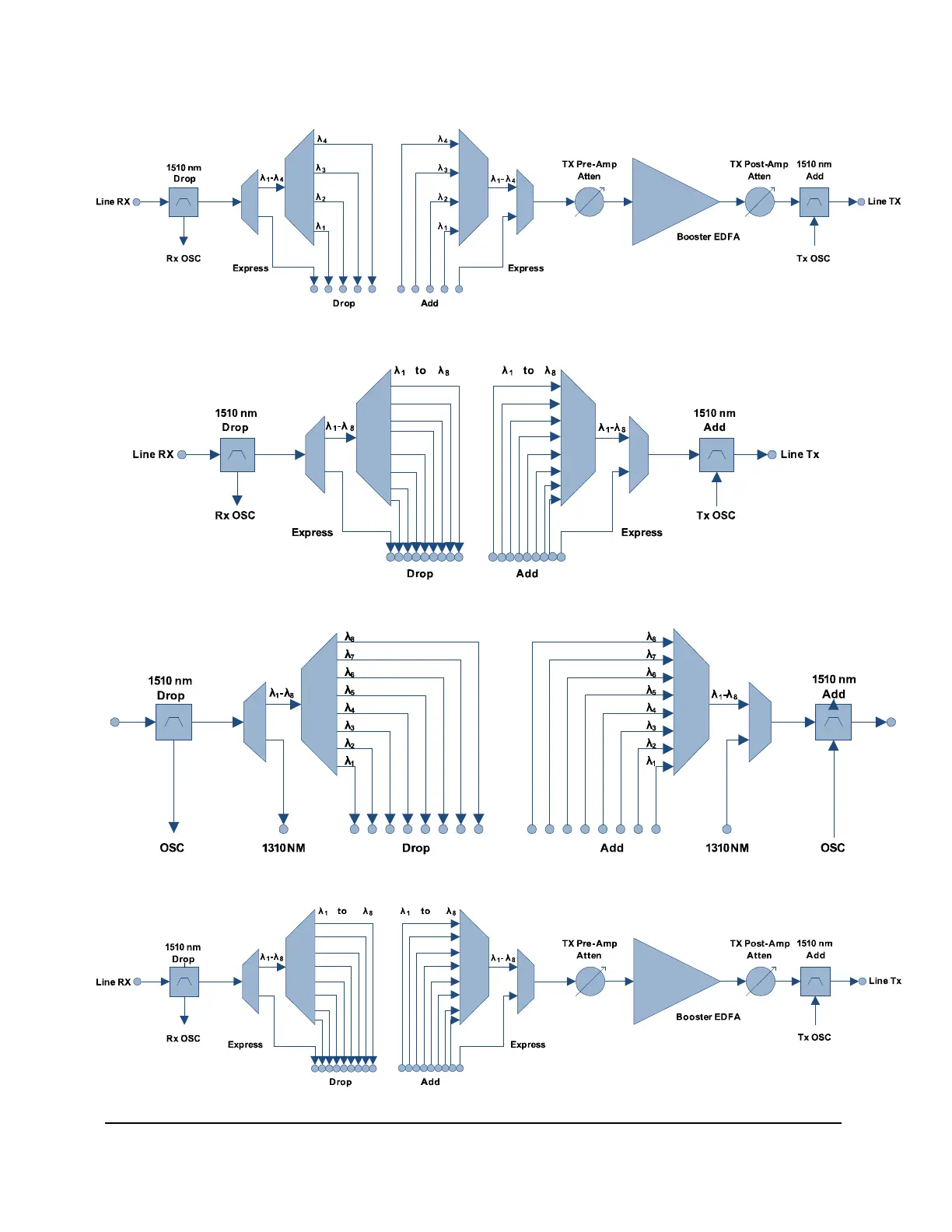

Cyan Z77 - Figure 21: LAD-4 A Block Diagram; Figure 22: LAD-8 Block Diagram; Figure 23: LAD-8 I Block Diagram; Figure 24: LAD-8 A Block Diagram

Cyan Z-Series Engineering and Planning Guide Release 5.0
Page 54 © 2013 Cyan, Inc. – All Rights Reserved. 700-0023-05-00 Rev. 1
LAD-4A
Figure 21: LAD-4A Block Diagram
LAD-8
Figure 22: LAD-8 Block Diagram
LAD-8i
Figure 23: LAD-8i Block Diagram
LAD-8A
Figure 24: LAD-8A Block Diagram
